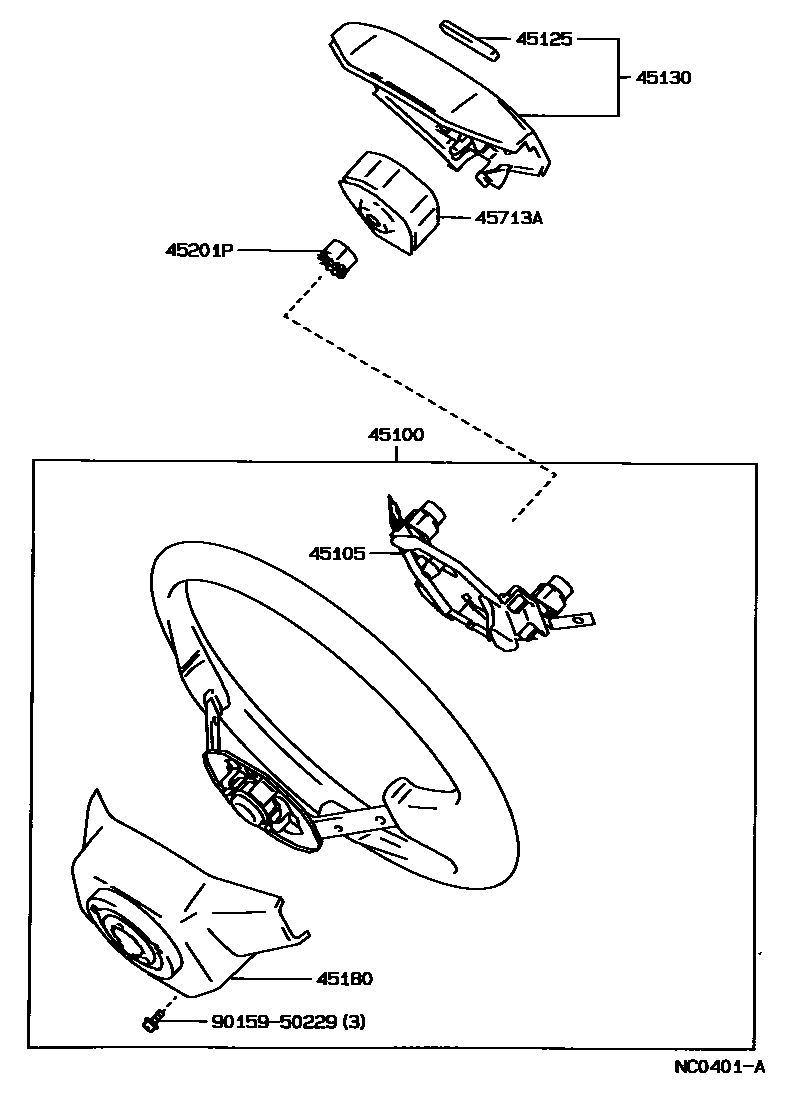

STEERING WHEEL

0001 1 0002 18806-8911SINGAPORE/8905-0789C0005 1 0006 1LEATHER

45100WHEEL ASSY, STEERING

main45100-20580-01iAT171,CT170,ST171..LB,SED198712-198911

BLACK,TRIM1#,4#,8#

sub45100-20580

main45100-20580-01iAT171,CT170,ST171..WG198712-198911

BLACK,TRIM1#,8#

sub45100-20580

main45100-20600-01iAT171,ST171..(LB,SED)..GL198712-198911

LEATHER,BLACK,TRIM1#,8#

sub45100-20600

main45100-20600-01iAT171,ST171..(LB,SED)..GL198712-198911

LEATHER,BLACK,TRIM1#,4#,8#

sub45100-20600

main45100-20600-01iAT171..(LB,SED)..XL198905-198907

89 CAMPAIGN MODEL,BLACK,TRIM1#

sub45100-20600

main45100-20850-01iAT171,CT170..WG198911-199211

BLACK,TRIM1#,4#,8#

sub45100-20850

main45100-20850-01iAT171,CT170..WG198911-199211

BLACK,TRIM1#,8#

sub45100-20850

main45100-20870-01iAT171..WG..GL198911-199211

LEATHER,BLACK,TRIM1#,8#

sub45100-20870

main45100-20870-01iAT171..WG..GL198911-199211

LEATHER,BLACK,TRIM1#,4#,8#

sub45100-20870

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-20210iAT171,CT170,ST171198712-198911

main45105-20330iAT171,CT170,ST171198911-199211

main45105-20350iAT171,ST171..GL198911-199211

LEATHER

45125MARK, STEERING WHEEL PAD

main45125-20360iAT171..RHD..SED198802-198911

SINGAPORE SPEC

main45125-20370iAT171,CT170,ST171198712-198911

45130BUTTON ASSY, HORN

main45130-20520-03iAT171..RHD..SED198802-198911

SINGAPORE SPEC,GRAY,TRIM1#

sub45130-20520

main45130-20520-04iAT171..RHD..SED198802-198911

SINGAPORE SPEC,BLUE,TRIM8#

sub45130-20520

main45130-20520-06iAT171..RHD..SED198802-198911

SINGAPORE SPEC,SABLE,TRIM4#

sub45130-20520

main45130-20530-01iAT171,CT170,ST171..LB,SED198712-198911

BLACK,TRIM1#,4#,8#

main45130-20530-01iAT171,CT170,ST171..WG198712-198911

BLACK,TRIM1#,8#

45180COVER SUB-ASSY, STEERING WHEEL

main45180-20070-01iAT171,CT170,ST171..WG198712-198911

BLACK,TRIM1#,8#

sub45180-20070

main45180-20070-01iAT171,CT170,ST171..WG198712-198911

BLACK,TRIM1#,4#,8#

sub45180-20070

main45180-20080-01iAT171,ST171..(LB,SED)..GL198712-198911

LEATHER,BLACK,TRIM1#,4#,8#

sub45180-20080

main45180-20080-01iAT171..WG..GL198712-198911

LEATHER,BLACK,TRIM1#,8#

sub45180-20080

main45180-20080-01iAT171..(LB,SED)..XL198905-198907

89 CAMPAIGN MODEL,BLACK,TRIM1#

sub45180-20080

main45180-20170-01iAT171,CT170..WG198911-199211

BLACK,TRIM1#,4#,8#

sub45180-20170

main45180-20170-01iAT171,CT170..WG198911-199211

BLACK,TRIM1#,8#

sub45180-20170

main45180-20180-01iAT171..WG..GL198911-199211

LEATHER,BLACK,TRIM1#,8#

sub45180-20180

main45180-20180-01iAT171..WG..GL198911-199211

LEATHER,BLACK,TRIM1#,4#,8#

sub45180-20180

45201PNUT, STEERING WHEEL SET

main90179-12086iAT171..LHD;CT170,ST171;AT171..RHD..GL;AT171..RHD..WG..XL198712-199211

45713ADAMPER, STEERING SHAKE

main45713-20040iCT170198712-198911

9015950229

main90159-50229

8 parts on this diagram · 4 diagrams in section
