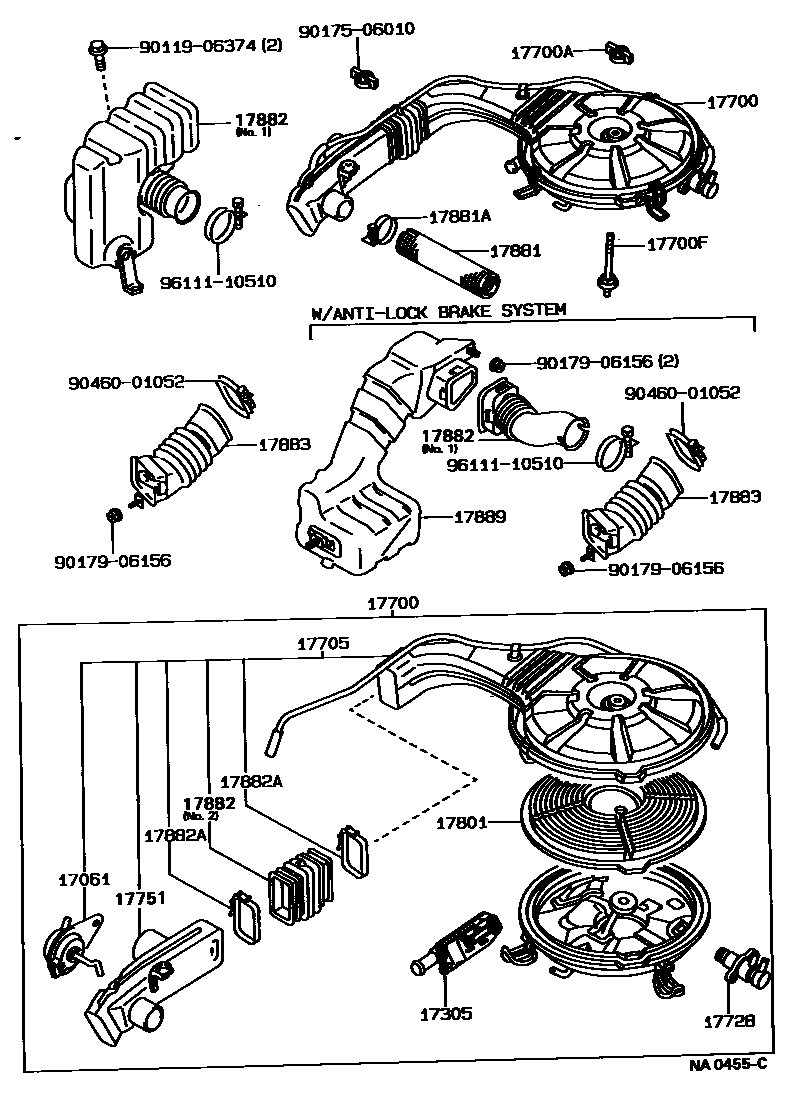

AIR CLEANER
17061DIAPHRAGM SUB-ASSY
17305VALVE SUB-ASSY, REED
ANNEX 25,23
17700CLEANER ASSY, AIR
ANNEX 23
ANNEX 25,23
17700ANUT, WING(FOR AIR CLEANER)
17700FBOLT, STUD(FOR AIR CLEANER SETTING)
17705CAP SUB-ASSY, AIR CLEANER
ANNEX 23
17728VALVE, THERMOSTATIC
ANNEX 25,23
17751INLET, AIR CLEANER, NO.1
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
THROTTLE BODY SIDE
AIR CLEANER SIDE
AIR FLOWMETER SIDE
PIPE SIDE
17882HOSE, AIR CLEANER, NO.2
NO.1
NO.2
NO.1
NO.2
W(ABS),NO.1
NO.1
ANNEX 23,NO.1
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17883HOSE, AIR CLEANER, NO.3
17889BOX, AIR CLEANER HOSE, NO.2
9011906374
main90119-06374
9017506010
main90175-06010
9017906156
main90179-06156
9046001052
main90460-01052
9611110510
main96111-10510
20 parts on this diagram · 7 diagrams in section
