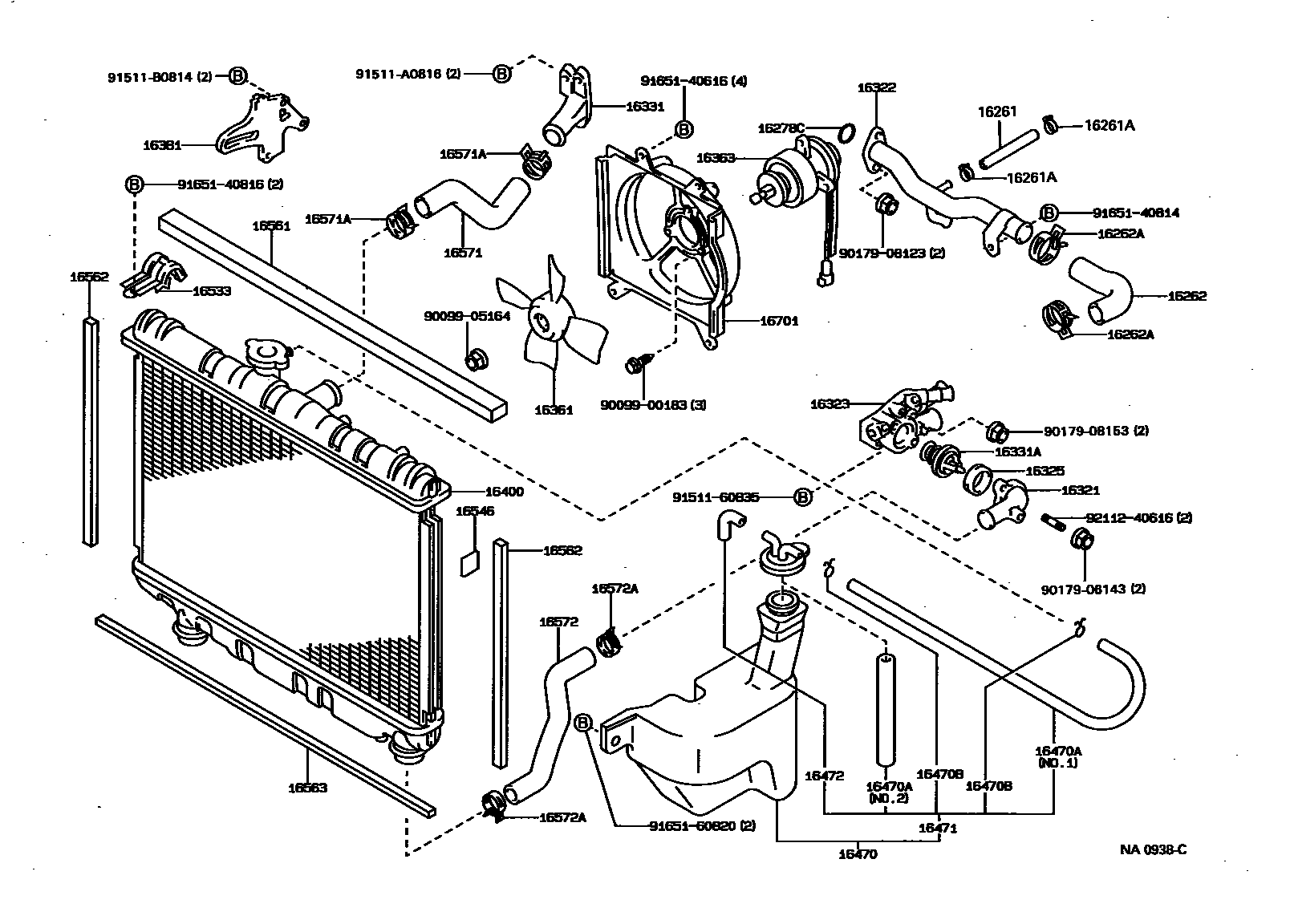

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
*H,L=200
16262HOSE, WATER INLET
16262ACLIP(FOR WATER INLET HOSE)
16278CRING, O(FOR WATER BY-PASS PIPE NO.2)
sub96761-24035
16321INLET, WATER
16323HOUSING, WATER INLET
ANNEX 25,23
16325GASKET, WATER INLET HOUSING, NO.1
sub16325-63011
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 82-95
16361FAN
*EX-USSR SPEC & W(AIR CONDITIONER)
SINGAPORE SPEC
16363MOTOR, COOLING FAN
SINGAPORE SPEC
*EX-USSR SPEC & W(AIR CONDITIONER)
16381BAR, FAN BELT ADJUSTING
16400RADIATOR ASSY
*EX-USSR SPEC & W(AIR CONDITIONER)
SINGAPORE SPEC
SINGAPORE SPEC
sub16400-11180
sub16400-74070
16470TANK ASSY, RADIATOR RESERVE
*66
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
*66,NO.1
NO.1
L=1000,NO.1
L=600,NO.2
L=600,NO.1,NO.2
L=600
L=1000(*H,L=200),*66,NO.2
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
W(ANTI-LOCK BRAKE SYSTEM)
16472HOSE, BREATHER
W(ANTI-LOCK BRAKE SYSTEM)
16533SUPPORT, RADIATOR, UPPER
LH
SINGAPORE SPEC
*EX-USSR SPEC & W(AIR CONDITIONER)
RH
16546PROTECTOR, RADIATOR
WEST GERMANY SPEC
16561SEAL, RADIATOR TO SUPPORT, NO.1
AIR CONDITIONER OR *EX-USSR
16562SEAL, RADIATOR TO SUPPORT, NO.2
W(AIR CONDITIONER);*EX-USSR SPEC & W(AIR CONDITIONER)
16563SEAL, RADIATOR TO SUPPORT, NO.3
AIR CONDITIONER OR *EX-USSR
16571HOSE, RADIATOR, INLET
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
sub90467-34003
ENGINE SIDE
RADIATOR SIDE
sub90467-34004
16701SHROUD SUB-ASSY, FAN
SINGAPORE SPEC
*EX-USSR & W(AIR CONDITIONER)
9009900183
main90099-00183
9009905164
main90099-05164
9017906143
main90179-06143
9017908123
main90179-08123
9017908153
main90179-08153
9151160835
main91511-60835
91511A0816
main91511-A0816
91511B0814
main91511-B0814
9165140616
main91651-40616
9165140814
main91651-40814
9165140816
main91651-40816
9165160820
main91651-60820
9211240616
main92112-40616
43 parts on this diagram · 11 diagrams in section
