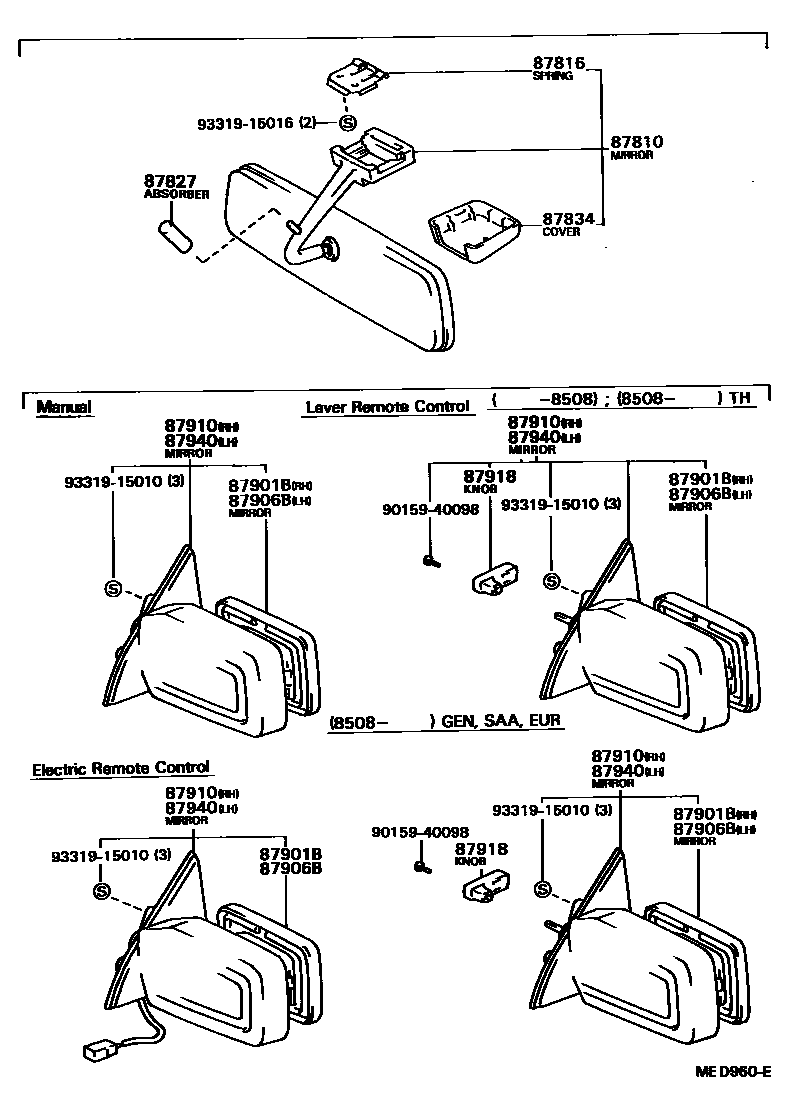

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-19015-02iAT151,CT150,ST15#..(GL,XL)..(GEN,SAA,TH)198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main87810-19015-13iAT151,CT150,ST15#..(GL,XL)..(GEN,SAA,TH)198310-198711

SHADOW GRAY,GRAY,TRIM1#

main87810-19015-34iAT151,CT150,ST15#..(GL,XL)..(GEN,SAA,TH)198310-198711

BLUE,BLUE,TRIM8#

main87810-20170-02iAT151..STD198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

main87810-20170-04iAT151..STD198310-198508

BLUE,BLUE,TRIM8#

main87810-20170-13iAT151..STD198310-198508

SHADOW GRAY,GRAY,TRIM1#

main87810-22161-12iAT151,CT150,ST150..EUR198310-198607

DEEP MAROON,RED/MAROON,TRIM3#

main87810-22161-24iAT151,CT150,ST150..EUR198310-198607

BLUE,BLUE,TRIM8#

main87810-22161-33iAT151,CT150,ST150..EUR198310-198607

SHADOW GRAY,GRAY,TRIM1#

main87810-22162-02iAT151,CT150,ST150..EUR198607-198711

MAROON,MAROON,TRIM3#

main87810-22162-03iAT151,CT150,ST150..EUR198607-198711

GRAY,GRAY,TRIM1#

main87810-22162-04iAT151,CT150,ST150..EUR198607-198711

BLUE,BLUE,TRIM8#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iAT151,CT150,ST15#..DX,GL,XL198310-198711

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-30010iAT151,CT150,ST150..EUR198310-198711

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-33iAT151,CT150,ST15#198310-198711

LIGHT GRAY,GRAY,TRIM1#,8#

main87834-20080-35iAT151,CT150,ST15#198310-198711

BEIGE,BEIGE,TRIM3#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87908-16030iAT151,CT150,ST150198310-198508

main87908-20481iAT151,CT150,ST15#..EUR,GEN,SAA198508-198711

main87931-20690iAT151,ST15#..GL..(GEN,SAA)198508-198711

ELECTRIC *RCM

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87909-16030iAT151,CT150,ST150198310-198508

main87909-20501iAT151,CT150,ST15#..EUR,GEN,SAA198508-198711

main87961-20750iAT151,ST15#..GL..(GEN,SAA)198508-198711

ELECTRIC *RCM

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-20460iCT150..RHD;AT151..RHD..EUG;AT151,ST150..RHD..(STD,XL)198310-198508

main87910-20461iAT151,CT150,ST150..RHD..XL..GEN; AT151,CT150..RHD..EUG198508-198607

main87910-20462iAT151,CT150,ST150..RHD..XL..GEN; AT151,CT150..RHD..EUG198607-198711

main87910-20470iAT151,CT150,ST150..RHD..(GL,XL)198310-198508

LEVER *RCM

main87910-20471iAT151,CT150,ST15#..RHD..(EUR,GEN)198508-198607

LEVER *RCM

main87910-20472iAT151,CT150,ST15#..RHD..(EUR,GEN)198607-198711

LEVER *RCM

main87910-20480iCT150..LHD;ST150..SAA;AT151..LB..LHD;ST150..LHD..XL..GEN;AT151..SED..LHD..GL..EUR;AT151..SED..LHD..(DX,STD,XL)198310-198508

main87910-20481iCT150..LHD;AT151..LB..LHD;ST150..EUR,SAA;ST150..LHD..XL..GEN;AT151..SED..LHD..(DX,XL);AT151..SED..LHD..GL..EUG198508-198607

main87910-20482iCT150..LHD;AT151..LB..LHD;ST150..EUR,SAA;ST150..LHD..XL..GEN;AT151..SED..LHD..(DX,XL);AT151..SED..LHD..GL..EUG198607-198711

main87910-20490iAT151,CT150,ST150..LHD..(DX,GL,XL)198310-198508

LEVER *RCM

main87910-20491iAT151,CT150,ST150..LHD198508-198607

LEVER *RCM

main87910-20492iAT151,CT150,ST150..LHD198607-198711

LEVER *RCM

main87910-20690iAT151,ST150..LHD..GL..(GEN,SAA)198508-198711

ELECTRIC *RCM

main87910-20700iAT151,ST15#..RHD..GL..GEN198508-198711

ELECTRIC *RCM

87918KNOB, CONTROL OUTER MIRROR

main87918-12060×2iAT151,CT150,ST15#..DX,GL,XL198310-198711

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-20480iCT150..RHD;AT151..RHD..EUG;AT151,ST150..RHD..(STD,XL)198310-198508

main87940-20481iAT151,CT150,ST150..RHD..XL..GEN; AT151,CT150..RHD..EUG198508-198607

main87940-20482iAT151,CT150,ST150..RHD..XL..GEN; AT151,CT150..RHD..EUG198607-198711

main87940-20490iST150..GL..TH198508-198608

main87940-20491iAT151,CT150,ST15#..RHD..(EUR,GEN)198508-198607

LEVER *RCM

main87940-20492iAT151,CT150,ST15#..RHD..(EUR,GEN)198607-198711

LEVER *RCM

main87940-20500iCT150..LHD;ST150..SAA;AT151..LB..LHD;ST150..LHD..XL..GEN;AT151..SED..LHD..GL..EUR;AT151..SED..LHD..(DX,STD,XL)198310-198508

main87940-20501iCT150..LHD;AT151..LB..LHD;ST150..EUR,SAA;ST150..LHD..XL..GEN;AT151..SED..LHD..(DX,XL);AT151..SED..LHD..GL..EUG198508-198607

main87940-20502iCT150..LHD;AT151..LB..LHD;ST150..EUR,SAA;ST150..LHD..XL..GEN;AT151..SED..LHD..(DX,XL);AT151..SED..LHD..GL..EUG198607-198711

main87940-20510iAT151,CT150,ST150..LHD..(DX,GL,XL)198310-198508

LEVER *RCM

main87940-20511iAT151,CT150,ST150..LHD198508-198607

LEVER *RCM

main87940-20512iAT151,CT150,ST150..LHD198607-198711

LEVER *RCM

main87940-20750iAT151,ST150..LHD..GL..(GEN,SAA)198508-198711

ELECTRIC *RCM

main87940-20760iAT151,ST15#..RHD..GL..GEN198508-198711

ELECTRIC *RCM

9015940098

main90159-40098

9331915010

main93319-15010

9331915016

main93319-15016

12 parts on this diagram · 1 diagram in section
