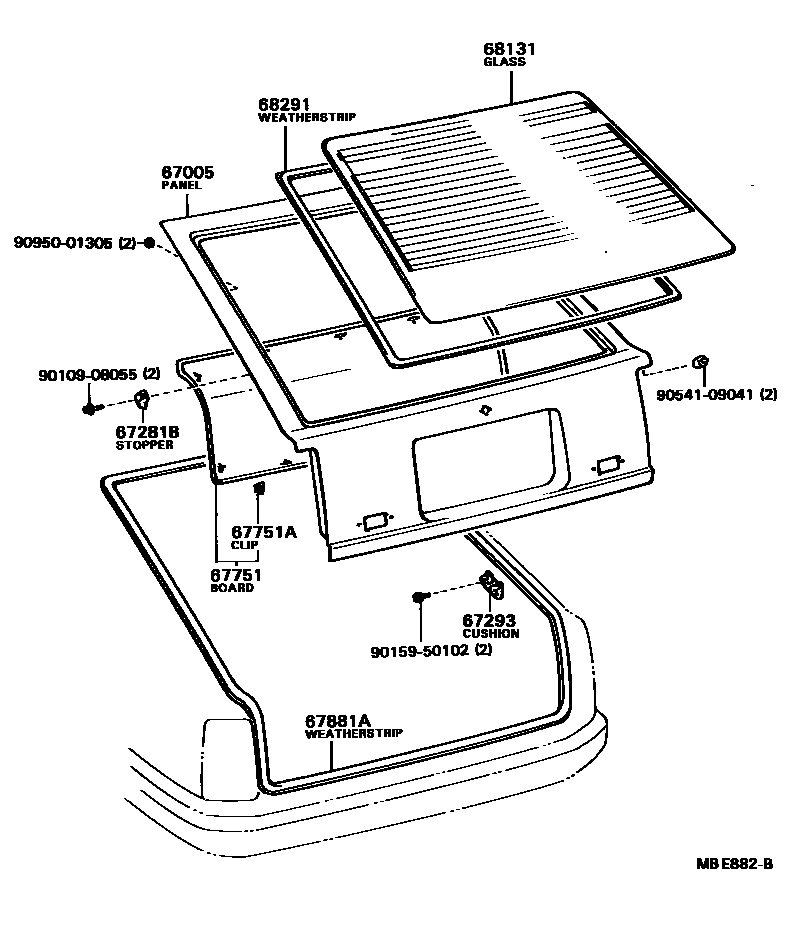

BACK DOOR PANEL & GLASS

67005PANEL SUB-ASSY, BACK DOOR

main67005-20220iAT151,ST150..LB..GEN198310-198508

*LPL=LOWER,W/O *RW

main67005-20230iAT151,ST150..LB..(GEN,SAA)198310-198711

*LPL=SIDE,W/O *RW

main67005-20250iAT151,ST150..LB..XL198508-198711

*LPL=LOWER,W/RW

main67005-20290iAT151,CT150,ST150..LB..EUR198310-198711

W/O *RW

main67005-20300iAT151,CT150,ST150..LB..EUR198310-198711

W/*RW

main67005-20370iST150..LB..GL198310-198508

*GIS,W/O *RW

main67005-20380iST150..LB..TH198508-198608

*GIS,W/*RW

main67005-20540iAT151,ST150..LB..(GEN,SAA)198310-198711

*LPL=SIDE,W/*RW

main67005-20690iAT151,ST150..LB..(GEN,SAA)198508-198603

*LPL=SIDE,W/MOULDING,*RW

main67005-20700iAT151,ST150..LB..(GEN,SAA)198603-198711

*LPL=SIDE,W/*RW

main67005-20710iAT151,ST150..LB..(GEN,SAA)198508-198603

*LPL=SIDE,W/MOULDING,W/O *RW

main67005-20720iAT151,ST150..LB..XL198508-198603

*LPL=SIDE,W/O MOULDING,*RW

main67005-20730iAT151,ST150..LB..GEN198508-198711

*LPL=LOWER,W/MOULDING,*RW

main67005-20740iAT151,ST150..LB..GEN198508-198711

*LPL=LOWER,W/MOULDING,W/O *RW

main67005-20820iST15#..LB..RHD..GEN198508-198711

*GIS,W/MOULDING,W/O *RW

main67005-20840iAT151..LB..5F..GL..GEN; ST15#..LB..RHD..GEN198508-198711

*GIS,W/MOULDING,*RW

67281BSTOPPER, BACK DOOR, LOWER

main67281-32010×2iAT151,CT150,ST15#..LB198310-198711

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-20010×2iAT151,CT150,ST15#..LB198310-198711

67751BOARD, BACK DOOR TRIM

main64781-20030-02iAT151,CT150,ST15#..LB198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main64781-20030-03iAT151,CT150,ST15#..LB198310-198711

SHADOW GRAY,GRAY,TRIM1#

main64781-20030-04iAT151,CT150,ST150..LB198310-198508

BLUE,BLUE,TRIM8#

main64781-20030-14iAT151,CT150,ST15#..LB198508-198711

BLUE,BLUE,TRIM8#

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90468-05017×12iAT151,CT150,ST15#..LB198310-198711

67881AWEATHERSTRIP, BACK DOOR

main67881-20030iAT151,CT150,ST150..LB198310-198506

main67881-20070iAT151,CT150,ST150..LB..(EUR,SAA)198506-198601

68131GLASS, BACK DOOR

main68131-20090iAT151,CT150,ST15#..LB..(EUR,GEN,SAA)198310-198711

*EHTT,T=4.0

main68131-20100iAT151,ST15#..LB..(GEN,SAA,TH)198310-198711

*TT,T=4.0

main68131-20110iAT151,CT150,ST150..LB..LHD..EUG198310-198711

*EHTT,T=4.0,W/HEAVY *DEF

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-20020iAT151,CT150,ST15#..LB198310-198711

9010908055

main90109-08055

9015950102

main90159-50102

9054109041

main90541-09041

9095001305

main90950-01305

12 parts on this diagram · 1 diagram in section
