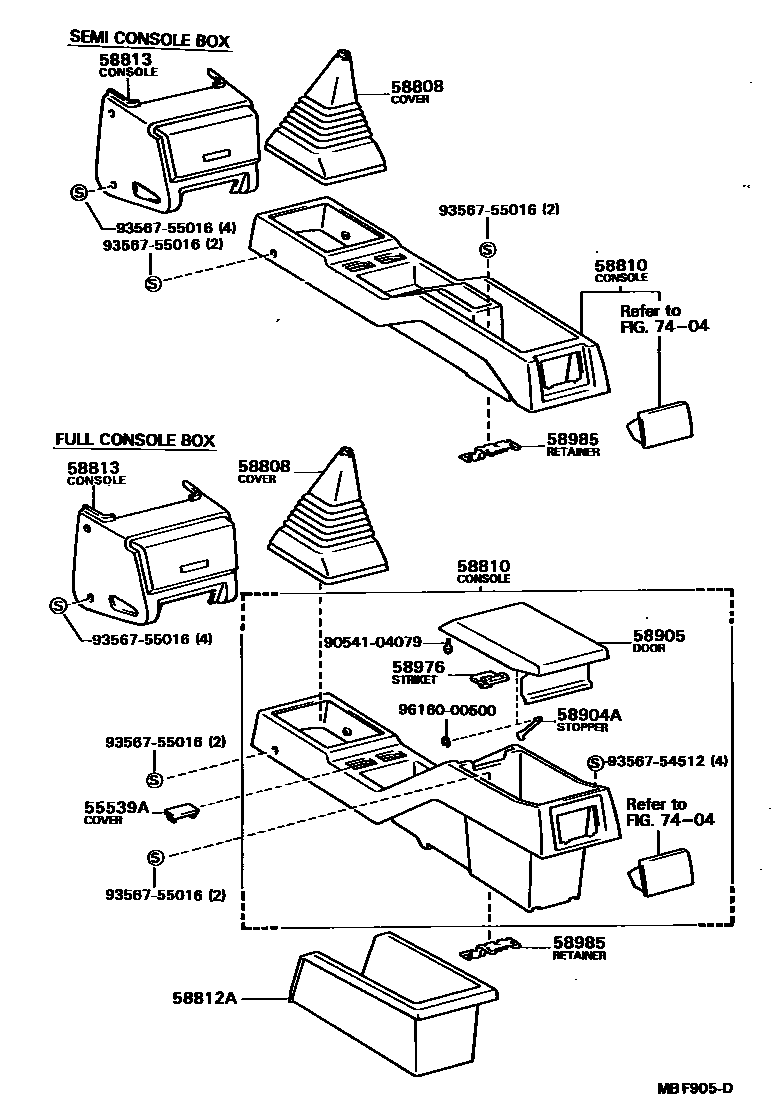

CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-24010-04iAT151,ST150..GL..(GEN,SAA)198310-198508

BLUE,BLUE,TRIM8#

main55539-24010-12iAT151,CT150,ST15#..GL198508-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55539-24010-13iAT151,ST150..GL..(GEN,SAA)198310-198508

SHADOW GRAY,GRAY,TRIM1#

main55539-24010-24iAT151,CT150,ST15#..GL198508-198711

BLUE,DEEP BLUE,TRIM8#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-20040-02iAT151,CT150,ST15#..MTM198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main58808-20040-03iAT151,CT150,ST15#..MTM198310-198711

SHADOW GRAY,GRAY,TRIM1#

main58808-20040-04iAT151,CT150,ST150..MTM198310-198508

BLUE,BLUE,TRIM8#

main58808-20040-14iAT151,CT150,ST150..MTM198508-198711

BLUE,BLUE,TRIM8#

58810CONSOLE ASSY

main58801-20070-02iCT150;AT151..EUR;AT151,ST150..STD,XL198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

main58801-20070-03iCT150;AT151..EUR;AT151,ST150..STD,XL198310-198508

SHADOW GRAY,GRAY,TRIM1#

main58801-20070-04iCT150;AT151..EUR;AT151,ST150..STD,XL198310-198508

BLUE,BLUE,TRIM8#

main58801-20070-14iAT151,CT150,ST150..DX,XL198508-198711

BLUE,BLUE,TRIM8#

main58801-20081-02iAT151,ST150..GL..(GEN,SAA)198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

main58801-20081-03iAT151,ST150..GL..(GEN,SAA)198310-198508

SHADOW GRAY,GRAY,TRIM1#

main58801-20081-04iAT151,ST150..GL..(GEN,SAA)198310-198508

BLUE,BLUE,TRIM8#

main58801-20082-02iAT151,CT150,ST15#..GL198508-198711

MAROON,MAROON,TRIM3#

main58801-20082-03iAT151,CT150..DX..EUG198610-198711

FULL CONSOLE BOX,GRAY,GRAY,TRIM1#

main58801-20082-04iAT151,CT150,ST15#..GL198508-198711

BLUE,BLUE,TRIM8#

58812ABOX, CONSOLE, LOWER

main58812-20030-02iAT151..SED..RHD..GL..GEN; ST150..RHD..GL..GEN198603-198711

MAROON,RED/MAROON,TRIM3#

main58812-20030-03iAT151..SED..RHD..GL..GEN; ST150..RHD..GL..GEN198603-198711

GRAY,GRAY,TRIM1#

main58812-20030-14iAT151..SED..RHD..GL..GEN; ST150..RHD..GL..GEN198603-198711

BLUE,BLUE,TRIM8#

58813BOX, CONSOLE, UPPER

main58810-20390-02iAT151,CT150,ST15#..EUR,GEN,SAA198508-198711

MAROON,MAROON,TRIM3#

main58810-20390-03iAT151,CT150,ST15#..EUR,GEN,SAA198508-198711

GRAY,GRAY,TRIM1#

main58810-20390-04iAT151,CT150,ST15#..EUR,GEN,SAA198508-198711

BLUE,BLUE,TRIM8#

58904ASTOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58964-20010iAT151,CT150,ST15#..GL198508-198711

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-20041-02iAT151,ST150..GL..(GEN,SAA)198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

main58905-20041-03iAT151,CT150,ST15#..GL198508-198711

SHADOW GRAY,GRAY,TRIM1#

main58905-20041-04iAT151,ST150..GL..(GEN,SAA)198310-198508

BLUE,BLUE,TRIM8#

main58905-20041-14iAT151,CT150,ST15#..GL198508-198711

BLUE,BLUE,TRIM8#

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-20010iAT151,ST150..GL..(GEN,SAA)198310-198508

58985RETAINER, CONSOLE BOX

main58985-20020iAT151,CT150,ST15#198310-198711

7404ASH RECEPTACLE

→ Go to FIG 74-04

9054104079

main90541-04079

9356754512

main93567-54512

9356755016

main93567-55016

9616000500

main96160-00500

14 parts on this diagram · 1 diagram in section
