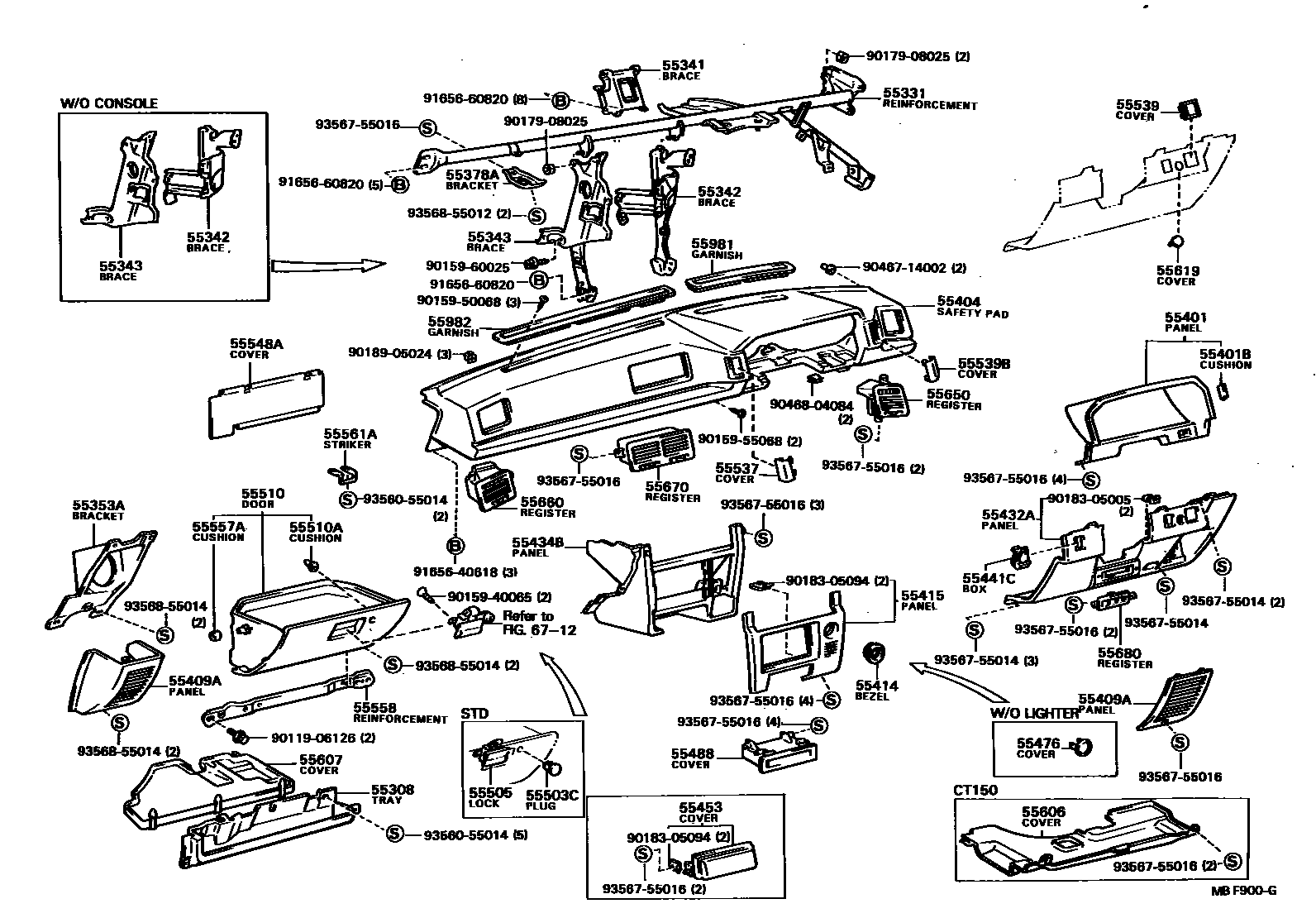

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55611-20060-02iAT151,CT150,ST15#..RHD198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55611-20060-03iAT151,CT150,ST15#..RHD198310-198711

SHADOW GRAY,GRAY,TRIM1#

main55611-20060-04iAT151,CT150,ST150..RHD198310-198508

BLUE,BLUE,TRIM8#

main55611-20060-14iAT151,CT150,ST15#..RHD198508-198711

BLUE,BLUE,TRIM8#

main55611-20070-02iAT151,CT150,ST150..LHD198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55611-20070-03iAT151,CT150,ST150..LHD198310-198711

SHADOW GRAY,GRAY,TRIM1#

main55611-20070-04iAT151,CT150,ST150..LHD198310-198508

BLUE,BLUE,TRIM8#

main55611-20070-14iAT151,CT150,ST150..LHD198508-198711

BLUE,BLUE,TRIM8#

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-20030iAT151,CT150..RHD..EUG198310-198711

main55330-20040iAT151,CT150,ST150..LHD..(EUR,SAA)198310-198711

main55330-20050iAT151,CT150,ST150..RHD..GEN198310-198508

main55330-20051iAT151,CT150,ST15#..RHD..(GEN,TH)198508-198711

main55330-20060iAT151,CT150,ST150..LHD..GEN198310-198711

55341BRACE, INSTRUMENT PANEL, NO.1

main55341-20081iAT151,CT150,ST15#..RHD..(GEN,TH)198310-198711

main55341-20090iAT151,CT150,ST150..LHD198310-198711

main55341-20100iAT151,CT150..RHD..EUG198310-198711

55342BRACE, INSTRUMENT PANEL, NO.2

main55306-20080iAT151,CT150,ST15#..RHD..(EUR,GEN)198508-198711

W/FRONT CONSOLE

main55306-20090iAT151,CT150,ST150..LHD198508-198711

W/FRONT CONSOLE

main55351-20040iAT151,CT150,ST150..RHD198310-198508

main55351-20050iAT151,CT150,ST150..LHD198310-198508

main55351-20090iAT151,ST150..TH198508-198711

W/O FRONT CONSOLE

main55351-20100iAT151,CT150,ST150..LHD..(DX,XL)198508-198711

W/O FRONT CONSOLE

55343BRACE, INSTRUMENT PANEL, NO.3

main55307-20080iAT151,CT150,ST15#..RHD..(EUR,GEN)198508-198711

W/FRONT CONSOLE

main55307-20090iAT151,CT150,ST150..LHD198508-198711

W/FRONT CONSOLE

main55352-20050iAT151,CT150,ST150..LHD198310-198508

main55352-20051iAT151,CT150,ST150..LHD..(DX,XL)198508-198711

W/O FRONT CONSOLE

main55352-20060iAT151,CT150,ST150..RHD198310-198508

main55352-20061iAT151,ST150..TH198508-198711

W/O FRONT CONSOLE

55353ABRACKET, SPEAKER MOUNTING, NO.1

main55353-20030iAT151,CT150,ST15#..RHD198310-198711

main55353-20040iAT151,CT150,ST150..LHD198310-198711

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-20060iAT151,CT150,ST15#198310-198711

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-20140iAT151,CT150,ST15#..RHD198310-198711

main55404-20160iAT151,CT150,ST150..LHD198310-198711

55401BCUSHION, INSTRUMENT CLUSTER FINISH PANEL

main55629-14010iAT151,CT150,ST150198310-198410

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-20440-02iAT151,CT150,ST15#..RHD198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55401-20440-03iAT151,CT150,ST15#..RHD198310-198711

SHADOW GRAY,GRAY,TRIM1#

main55401-20440-04iAT151,CT150,ST150..RHD198310-198508

BLUE,BLUE,TRIM8#

main55401-20440-14iAT151,CT150,ST15#..RHD198508-198711

BLUE,BLUE,TRIM8#

main55401-20450-02iAT151,CT150,ST150..LHD198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55401-20450-03iAT151,CT150,ST150..LHD198310-198711

SHADOW GRAY,GRAY,TRIM1#

main55401-20450-04iAT151,CT150,ST150..LHD198310-198508

BLUE,BLUE,TRIM8#

main55401-20450-14iAT151,CT150,ST150..LHD198508-198711

BLUE,BLUE,TRIM8#

55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

main55472-20060-02iAT151,CT150,ST15#..RHD198310-198711

RH,DEEP MAROON,RED/MAROON,TRIM3#

main55472-20060-03iAT151,CT150,ST15#..RHD198310-198711

RH,SHADOW GRAY,GRAY,TRIM1#

main55472-20060-04iAT151,CT150,ST150..RHD198310-198508

RH,BLUE,BLUE,TRIM8#

main55472-20060-14iAT151,CT150,ST15#..RHD198508-198711

RH,BLUE,BLUE,TRIM8#

main55472-20070-02iAT151,CT150,ST150..LHD198310-198711

LH,DEEP MAROON,RED/MAROON,TRIM3#

main55472-20070-03iAT151,CT150,ST150..LHD198310-198711

LH,SHADOW GRAY,GRAY,TRIM1#

main55472-20070-04iAT151,CT150,ST150..LHD198310-198508

LH,BLUE,BLUE,TRIM8#

main55472-20070-14iAT151,CT150,ST150..LHD198508-198711

LH,BLUE,BLUE,TRIM8#

main55473-20050-02iAT151,CT150,ST15#..RHD198310-198711

LH,DEEP MAROON,RED/MAROON,TRIM3#

main55473-20050-03iAT151,CT150,ST15#..RHD198310-198711

LH,SHADOW GRAY,GRAY,TRIM1#

main55473-20050-04iAT151,CT150,ST150..RHD198310-198508

LH,BLUE,BLUE,TRIM8#

main55473-20050-14iAT151,CT150,ST15#..RHD198508-198711

LH,BLUE,BLUE,TRIM8#

main55473-20060-02iAT151,CT150,ST150..LHD198310-198711

RH,DEEP MAROON,RED/MAROON,TRIM3#

main55473-20060-03iAT151,CT150,ST150..LHD198310-198711

RH,SHADOW GRAY,GRAY,TRIM1#

main55473-20060-04iAT151,CT150,ST150..LHD198310-198508

RH,BLUE,BLUE,TRIM8#

main55473-20060-14iAT151,CT150,ST150..LHD198508-198711

RH,BLUE,BLUE,TRIM8#

55414BEZEL, CIGAR LIGHTER HOLE

main55477-20050iAT151,CT150,ST15#198310-198711

55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-20230-02iAT151,CT150,ST15#..RHD198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55412-20230-03iAT151,CT150,ST15#..RHD198310-198711

SHADOW GRAY,GRAY,TRIM1#

main55412-20230-04iAT151,CT150,ST150..RHD198310-198508

BLUE,BLUE,TRIM8#

main55412-20230-14iAT151,CT150,ST15#..RHD198508-198711

BLUE,BLUE,TRIM8#

main55412-20270-02iAT151,CT150,ST150..LHD..(EUG,FRG)198310-198711

W/RADIO,DEEP MAROON,RED/MAROON,TRIM3#

main55412-20270-02iAT151..SDZ;AT151,CT150,ST150..LHD..(GEN,SAA)198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55412-20270-03iAT151..SDZ;AT151,CT150,ST150..LHD..(GEN,SAA)198310-198711

SHADOW GRAY,GRAY,TRIM1#

main55412-20270-03iAT151..SDZ;AT151,CT150,ST150..LHD..(GEN,SAA)198310-198711

W/RADIO,SHADOW GRAY,GRAY,TRIM1#

main55412-20270-04iAT151..SDZ;AT151,CT150,ST150..LHD..(GEN,SAA)198310-198508

BLUE,BLUE,TRIM8#

main55412-20270-04iAT151,CT150..LHD..EUG198310-198508

W/RADIO,BLUE,BLUE,TRIM8#

main55412-20270-14iAT151..SDZ;AT151,CT150,ST150..LHD..(GEN,SAA)198508-198711

W/RADIO,BLUE,BLUE,TRIM8#

main55412-20270-14iAT151,CT150,ST150..LHD..(EUG,FRG)198508-198711

BLUE,BLUE,TRIM8#

main55412-20280-02iAT151,CT150,ST150..LHD..(EUG,FRG)198310-198711

W/O RADIO,DEEP MAROON,RED/MAROON,TRIM3#

main55412-20280-03iAT151,CT150,ST150..LHD..(EUG,FRG)198310-198711

W/O RADIO,SHADOW GRAY,GRAY,TRIM1#

main55412-20280-04iAT151,CT150..LHD..EUG198310-198508

W/O RADIO,BLUE,BLUE,TRIM8#

main55412-20280-14iAT151,CT150,ST150..LHD..EUG198508-198711

W/O RADIO,BLUE,BLUE,TRIM8#

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55432-20150-02iAT151,CT150,ST15#..RHD198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55432-20150-03iAT151,CT150,ST15#..RHD198310-198711

SHADOW GRAY,GRAY,TRIM1#

main55432-20150-04iAT151,CT150,ST150..RHD198310-198508

BLUE,BLUE,TRIM8#

main55432-20150-14iAT151,CT150,ST15#..RHD198508-198711

BLUE,BLUE,TRIM8#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-20030-02iAT151,CT150,ST150..RHD198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

main55434-20030-03iAT151,CT150,ST150..RHD198310-198508

SHADOW GRAY,GRAY,TRIM1#

main55434-20030-04iAT151,CT150,ST150..RHD198310-198508

BLUE,BLUE,TRIM8#

main55434-20040-02iAT151,CT150,ST150..LHD198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

main55434-20040-03iAT151,CT150,ST150..LHD198310-198508

SHADOW GRAY,GRAY,TRIM1#

main55434-20040-04iAT151,CT150,ST150..LHD198310-198508

BLUE,BLUE,TRIM8#

main55434-20090-02iAT151,CT150,ST15#..RHD198508-198711

MAROON,MAROON,TRIM3#

main55434-20090-03iAT151,CT150,ST15#..RHD198508-198711

GRAY,GRAY,TRIM1#

main55434-20090-04iAT151,CT150,ST15#..RHD198508-198711

BLUE,BLUE,TRIM8#

main55434-20100-02iAT151,CT150,ST150..LHD198508-198711

MAROON,MAROON,TRIM3#

main55434-20100-03iAT151,CT150,ST150..LHD198508-198711

GRAY,GRAY,TRIM1#

main55434-20100-04iAT151,CT150,ST150..LHD198508-198711

BLUE,BLUE,TRIM8#

55441CBOX, INSTRUMENT PANEL COIN

main55441-20140-02iAT151,CT150,ST15#198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55441-20140-03iAT151,CT150,ST15#198310-198711

SHADOW GRAY,GRAY,TRIM1#

main55441-20140-04iAT151,CT150,ST150198310-198508

BLUE,BLUE,TRIM8#

main55441-20140-14iAT151,CT150,ST15#198508-198610

BLUE,BLUE,TRIM8#

main55441-20140-24iAT151,CT150,ST15#198610-198711

BLUE,DEEP BLUE,TRIM8#

55453COVER, RADIO TUNER OPENING

main55522-14070iAT151,CT150,ST150..LHD..(EUG,FRG)198310-198711

TYPE B

main55522-20050iAT151,CT150,ST150..LHD..(EUG,FRG)198310-198711

TYPE A

55476COVER, CIGARETTE LIGHTER HOLE

main55477-10010iAT151..STD198310-198508

55488COVER, STEREO OPENING

main55521-16010iAT151,CT150,ST15#198310-198711

55503CPLUG, HOLE(FOR GLOVE COMPARTMENT)

main55464-14010-03iAT151..STD198310-198508

SHADOW GRAY,GRAY,TRIM1#

main55464-14010-12iAT151..STD198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

main55464-14010-14iAT151..STD198310-198508

BLUE,BLUE,TRIM8#

55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR

main55560-16010-12iAT151..STD198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

main55560-16010-13iAT151..STD198310-198508

SHADOW GRAY,GRAY,TRIM1#

main55560-16010-14iAT151..STD198310-198508

BLUE,BLUE,TRIM8#

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-20060-02iAT151,CT150,ST15#..RHD198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55550-20060-03iAT151,CT150,ST15#..RHD198310-198711

SHADOW GRAY,GRAY,TRIM1#

main55550-20060-04iAT151,CT150,ST150..RHD198310-198508

BLUE,BLUE,TRIM8#

main55550-20060-14iAT151,CT150,ST15#..RHD198508-198711

BLUE,BLUE,TRIM8#

main55550-20090-02iAT151,CT150,ST150..LHD198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55550-20090-03iAT151,CT150,ST150..LHD198310-198711

SHADOW GRAY,GRAY,TRIM1#

main55550-20090-04iAT151,CT150,ST150..LHD198310-198508

BLUE,BLUE,TRIM8#

main55550-20090-14iAT151,CT150,ST150..LHD198508-198711

BLUE,BLUE,TRIM8#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iAT151,CT150,ST15#198310-198711

55537COVER, REAR WINDOW DEFOGGER SWITCH HOLE

main55528-20010-02iAT151,CT150,ST150..LHD..EUG198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55528-20010-03iAT151,CT150,ST150..LHD..EUG198310-198711

SHADOW GRAY,GRAY,TRIM1#

main55528-20010-04iAT151,CT150,ST150..LHD..(GEN,SAA)198310-198508

BLUE,BLUE,TRIM8#

main55528-20010-14iAT151,CT150,ST150..LHD..EUG198508-198711

BLUE,BLUE,TRIM8#

main55537-20030-02iAT151,ST150..SED..TH198508-198608

MAROON,RED/MAROON,TRIM3#

main55537-20030-02iAT151,CT150,ST15#..RHD..GEN198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55537-20030-03iAT151,ST150..SED..TH198508-198608

GRAY,GRAY,TRIM1#

main55537-20030-03iAT151,CT150,ST15#..RHD..GEN198310-198711

SHADOW GRAY,GRAY,TRIM1#

main55537-20030-04iAT151,CT150,ST150..RHD..GEN198310-198508

BLUE,BLUE,TRIM8#

main55537-20030-14iAT151,ST150..SED..TH198508-198711

BLUE,BLUE,TRIM8#

55539COVER, SPARE SWITCH HOLE

main74267-24010-03iAT151,CT150,ST15#..EUR,GEN,SAA198310-198711

SHADOW GRAY,GRAY,TRIM1#

main74267-24010-04iAT151,CT150,ST150198310-198508

BLUE,BLUE,TRIM8#

main74267-24010-12iAT151,CT150,ST150198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main74267-24010-14iAT151,CT150,ST15#..EUR,GEN,SAA198508-198711

BLUE,BLUE,TRIM8#

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55528-20010-02iAT151,CT150,ST15#..RHD..(GEN,TH)198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55528-20010-03iAT151,CT150,ST15#..RHD..(GEN,TH)198310-198711

SHADOW GRAY,GRAY,TRIM1#

main55528-20010-04iAT151,CT150,ST150..RHD..GEN198310-198508

BLUE,BLUE,TRIM8#

main55528-20010-14iAT151,CT150,ST15#..RHD..(GEN,TH)198508-198711

BLUE,BLUE,TRIM8#

main55537-20030-02iAT151,CT150,ST150..LHD..(GEN,SAA)198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55537-20030-03iAT151,CT150,ST150..LHD..(GEN,SAA)198310-198711

SHADOW GRAY,GRAY,TRIM1#

main55537-20030-04iAT151,CT150,ST150..LHD..(GEN,SAA)198310-198508

BLUE,BLUE,TRIM8#

main55537-20030-14iAT151,CT150,ST150..LHD..(GEN,SAA)198508-198711

BLUE,BLUE,TRIM8#

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-20040iAT151,CT150,ST15#198310-198711

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-16010iAT151,CT150,ST150198310-198503

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

main55558-20010iAT151,CT150,ST15#..RHD198310-198711

W/UNDER TRAY

main55558-20020iAT151,CT150,ST150..LHD198310-198711

W/UNDER TRAY

main55558-20030iAT151..RHD..STD198310-198508

W/O UNDER TRAY

main55558-20040iAT151..LHD..STD198310-198508

W/O UNDER TRAY

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-32010iAT151,CT150,ST15#198310-198711

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-20060iCT150..LHD198310-198711

main55606-20070iCT150..RHD198310-198711

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-20030iCT150..RHD198310-198711

main55607-20040iCT150..LHD198310-198711

55619COVER, SWITCH HOLE

main55619-14010-12iAT151..STD198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

main55619-14010-13iAT151..STD198310-198508

SHADOW GRAY,GRAY,TRIM1#

main55619-14010-14iAT151..STD198310-198508

BLUE,BLUE,TRIM8#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-20090-02iAT151,CT150,ST15#..RHD..(GEN,TH)198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55650-20090-03iAT151,CT150,ST150..RHD198310-198711

SHADOW GRAY,GRAY,TRIM1#

main55650-20090-04iAT151,CT150,ST150..RHD198310-198508

BLUE,BLUE,TRIM8#

main55650-20090-14iAT151,CT150,ST15#..RHD..(GEN,TH)198508-198711

BLUE,BLUE,TRIM8#

main55650-20100-02iAT151,CT150,ST150..LHD198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

main55650-20100-03iAT151,CT150,ST150..LHD198310-198508

SHADOW GRAY,GRAY,TRIM1#

main55650-20100-04iAT151,CT150,ST150..LHD198310-198508

BLUE,BLUE,TRIM8#

main55650-20101-02iAT151,CT150,ST150..LHD198508-198711

MAROON,MAROON,TRIM3#

main55650-20101-03iAT151,CT150,ST150..LHD198508-198711

GRAY,GRAY,TRIM1#

main55650-20101-04iAT151,CT150,ST150..LHD198508-198711

BLUE,BLUE,TRIM8#

main55650-20150-02iAT151,CT150..RHD..EUG198508-198711

MAROON,MAROON,TRIM3#

main55650-20150-03iAT151,CT150..RHD..EUG198508-198711

GRAY,GRAY,TRIM1#

main55650-20150-04iAT151,CT150..RHD..EUG198508-198711

BLUE,BLUE,TRIM8#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-20030-02iAT151,CT150,ST15#..RHD..(GEN,TH)198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55660-20030-03iAT151,CT150,ST15#..RHD..(GEN,TH)198310-198711

SHADOW GRAY,GRAY,TRIM1#

main55660-20030-04iAT151,CT150,ST150..RHD198310-198508

BLUE,BLUE,TRIM8#

main55660-20030-14iAT151,CT150,ST15#..RHD..(GEN,TH)198508-198711

BLUE,BLUE,TRIM8#

main55660-20040-02iAT151,CT150,ST150..LHD198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

main55660-20040-03iAT151,CT150,ST150..LHD198310-198508

SHADOW GRAY,GRAY,TRIM1#

main55660-20040-04iAT151,CT150,ST150..LHD198310-198508

BLUE,BLUE,TRIM8#

main55660-20041-02iAT151,CT150,ST150..LHD198508-198711

MAROON,MAROON,TRIM3#

main55660-20041-03iAT151,CT150,ST150..LHD198508-198711

GRAY,GRAY,TRIM1#

main55660-20041-04iAT151,CT150,ST150..LHD198508-198711

BLUE,BLUE,TRIM8#

main55660-20080-02iAT151,CT150..RHD..EUG198508-198711

MAROON,MAROON,TRIM3#

main55660-20080-03iAT151,CT150..RHD..EUG198508-198711

GRAY,GRAY,TRIM1#

main55660-20080-04iAT151,CT150..RHD..EUG198508-198711

BLUE,BLUE,TRIM8#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-20030-02iAT151,CT150..RHD;ST15#..GEN,SAA,TH;AT151,CT150..LHD..(GEN,SAA)198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55670-20030-03iAT151,CT150..RHD;ST15#..GEN,SAA,TH;AT151,CT150..LHD..(GEN,SAA)198310-198711

SHADOW GRAY,GRAY,TRIM1#

main55670-20030-04iAT151,CT150,ST150198310-198508

BLUE,BLUE,TRIM8#

main55670-20030-14iAT151,CT150..RHD;ST15#..GEN,SAA,TH;AT151,CT150..LHD..(GEN,SAA)198508-198711

BLUE,BLUE,TRIM8#

main55670-20080-02iAT151,CT150,ST150..LHD..EUR198508-198711

MAROON,MAROON,TRIM3#

main55670-20080-03iAT151,CT150,ST150..LHD..EUR198508-198711

GRAY,GRAY,TRIM1#

main55670-20080-04iAT151,CT150,ST150..LHD..EUR198508-198711

BLUE,BLUE,TRIM8#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-32010iAT151,CT150,ST15#..RHD..(GEN,TH)198310-198711

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-20030-02iAT151,CT150,ST15#..RHD198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55981-20030-03iAT151,CT150,ST15#..RHD198310-198711

SHADOW GRAY,GRAY,TRIM1#

main55981-20030-04iAT151,CT150,ST150..RHD198310-198508

BLUE,BLUE,TRIM8#

main55981-20030-14iAT151,CT150,ST15#..RHD198508-198711

BLUE,BLUE,TRIM8#

main55981-20040-02iAT151,CT150,ST150..LHD198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55981-20040-03iAT151,CT150,ST150..LHD198310-198711

SHADOW GRAY,GRAY,TRIM1#

main55981-20040-04iAT151,CT150,ST150..LHD198310-198508

BLUE,BLUE,TRIM8#

main55981-20040-14iAT151,CT150,ST150..LHD198508-198711

BLUE,BLUE,TRIM8#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-20030-02iAT151,CT150,ST15#..RHD198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55982-20030-03iAT151,CT150,ST15#..RHD198310-198711

SHADOW GRAY,GRAY,TRIM1#

main55982-20030-04iAT151,CT150,ST150..RHD198310-198508

BLUE,BLUE,TRIM8#

main55982-20030-14iAT151,CT150,ST15#..RHD198508-198711

BLUE,BLUE,TRIM8#

main55982-20040-02iAT151,CT150,ST150..LHD198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55982-20040-03iAT151,CT150,ST150..LHD198310-198711

SHADOW GRAY,GRAY,TRIM1#

main55982-20040-04iAT151,CT150,ST150..LHD198310-198508

BLUE,BLUE,TRIM8#

main55982-20040-14iAT151,CT150,ST150..LHD198508-198711

BLUE,BLUE,TRIM8#

6712LOCK CYLINDER SET

→ Go to FIG 67-12

9011906126

main90119-06126

9015940065

main90159-40065

9015950068

main90159-50068

9015955068

main90159-55068

9015960025

main90159-60025

9017908025

main90179-08025

9018305005

main90183-05005

9018305094

main90183-05094

9018905024

main90189-05024

9046714002

main90467-14002

9046804084

main90468-04084

9165640618

main91656-40618

9165660820

main91656-60820

9356055014

main93560-55014

9356755014

main93567-55014

9356755016

main93567-55016

9356855012

main93568-55012

9356855014

main93568-55014

58 parts on this diagram · 2 diagrams in section
