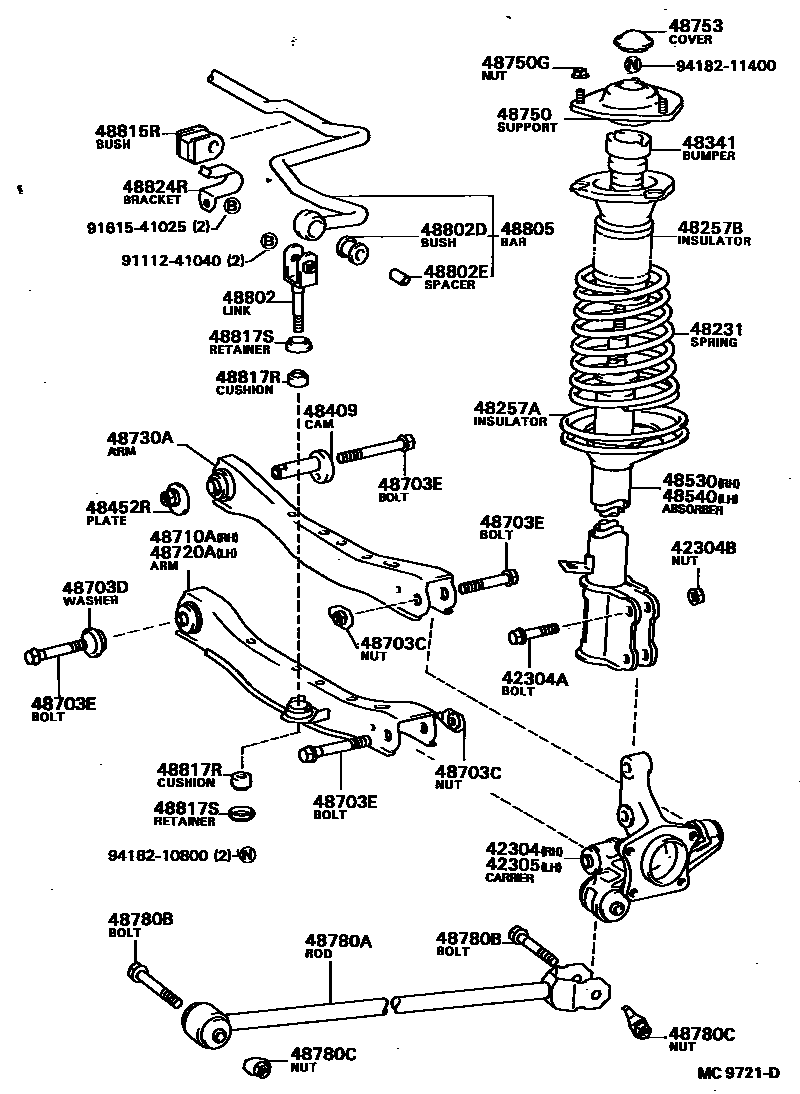

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-32010iAT151,CT150,ST15#198310-198711

42304ABOLT (FOR REAR AXLE CARRIER)

main90105-12042iAT151,CT150,ST15#198310-198711

sub90105-12263

42304BNUT (FOR REAR AXLE CARRIER)

main90179-12025iAT151,CT150,ST15#198310-198711

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-32010iAT151,CT150,ST15#198310-198711

48231SPRING, COIL, REAR

main48231-20190iST150..LB..EUG198508-198602

sub48231-20200

main48231-20210iAT151,ST150..LB..(GEN,SAA)198310-198711

main48231-20250iST150..SED..EUG198508-198602

main48231-20270iST150..SED..EUG198310-198711

sub48231-2B790

main48231-20390iAT151,CT150..SED..EUR198310-198711

main48231-20410iAT151,CT150..LB..EUR198310-198711

main48231-20430iST150..LB..RHD..XL198508-198711

NEW ZEALAND SPEC

sub48231-2B810

main48231-20430iAT151,ST150..SED..TH198508-198608

sub48231-2B810

main48231-20430iAT151..SED..LHD..5F..EUG;AT151,CT150,ST150..SED..(GEN,SAA)198403-198711

HARSH ROAD PACKAGE

sub48231-2B810

main48231-20440iST150..LB..TH198508-198608

sub48231-2B201

main48231-20440iAT151,ST15#..LB..(GEN,SAA)198403-198711

HARSH ROAD PACKAGE

sub48231-2B201

main48231-20490iST151..SED198508-198711

sub48231-2B640

main48231-20580iST151..LB198508-198711

HARSH ROAD PACKAGE

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-16010iAT151,CT150,ST15#198310-198711

48257BINSULATOR, REAR COIL SPRING, UPPER

main48257-32030iAT151,CT150,ST15#198310-198711

48341BUMPER, REAR SPRING

main48341-32020iAT151,CT150,ST15#198310-198711

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-32010iAT151,CT150,ST15#198310-198711

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-32010iAT151,CT150,ST15#198310-198711

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-20010iAT151,ST150..LB..(GEN,SAA)198310-198711

sub48530-20030

main48530-20030iAT151,CT150..SED..EUR198310-198711

main48530-20050iCT150,ST150..SED..(GEN,SAA)198310-198711

sub48530-20030

main48530-20070iST151198508-198711

NEW ZEALAND SPEC

sub48530-20030

main48530-20090iAT151..SED..LHD..5F..EUG;AT151,CT150,ST15#..GEN,SAA198403-198711

HARSH ROAD PACKAGE

sub48530-20030

main48530-20090iAT151,ST150..TH198508-198608

sub48530-20030

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-20010iAT151,ST150..LB..(GEN,SAA)198310-198711

sub48540-20030

main48540-20030iAT151..SED..(GEN,SAA)198310-198711

main48540-20050iCT150,ST150..SED..(GEN,SAA)198310-198711

sub48540-20030

main48540-20070iST150..LB..EUG198508-198711

NEW ZEALAND SPEC

sub48540-20030

main48540-20090iAT151,ST150..TH198508-198608

sub48540-20030

main48540-20090iAT151..SED..LHD..5F..EUG;AT151,CT150,ST15#..GEN,SAA198403-198711

HARSH ROAD PACKAGE

sub48540-20030

48703CNUT(FOR REAR SUSPENSION ARM)

main90179-12023iAT151,CT150,ST15#198310-198608

ARM NO.1 X CARRIER,ARM NO.2

main90179-12033iAT151,CT150,ST150198310-198508

ARM NO.1 X BODY

main90179-12049iAT151,CT150,ST15#198508-198608

ARM NO.1 X BODY

sub90179-12063

main90179-12062iAT151,CT150,ST15#198608-198711

ARM NO.1 X CARRIER,ARM NO.2

main90179-12063iAT151,CT150,ST15#198608-198711

ARM NO.1 X BODY

48703DWASHER(FOR REAR SUSPENSION ARM)

main90209-13005iAT151,CT150,ST15#198310-198711

48703EBOLT(FOR REAR SUSPENSION ARM)

main90105-10052iAT151,CT150,ST15#198310-198711

*10-1.25PX77-20

main90105-12035iAT151,CT150,ST15#198310-198608

*12-1.25PX78-25

main90105-12037iAT151,CT150,ST15#198310-198608

*12-1.25PX60-25

main90105-12070iAT151,CT150,ST15#198608-198711

*12-1.25PX63-25

main90105-12147iAT151,CT150,ST15#198608-198711

*12-1.25PX74.5-25,*12-1.25PX74.5-25

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-32010iAT151,CT150..EUR198310-198512

W/STABILIZER BAR

sub48710-32011

main48710-32011iAT151,CT150,ST150..EUR198508-198711

main48710-32011iAT151..SED..RHD..GEN;CT150,ST15#..RHD..GEN;AT151..LB..5F..GL..GEN198512-198711

W/STABILIZER BAR

main48710-32020iAT151,CT150,ST150..GEN,SAA198310-198512

sub48710-32021

main48710-32021iAT151,CT150,ST150..GEN,SAA,TH198512-198711

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-32020iAT151,CT150,ST150..GEN,SAA198310-198512

sub48710-32021

main48710-32021iAT151,CT150,ST150..GEN,SAA,TH198512-198711

main48720-32010iST150..RHD..5F..GL..GEN;ST150..RHD..(3FC,4F)..GEN;ST150..SED..RHD..5F..XL..GEN;AT151,CT150..SED..RHD..(GL,XL)..GEN198310-198512

W/STABILIZER BAR

sub48720-32011

main48720-32011iAT151,CT150,ST150..EUR198512-198711

W/STABILIZER BAR

48730AARM ASSY, REAR SUSPENSION, NO.2

main48730-32010iAT151,CT150,ST150198310-198512

sub48730-32011

main48730-32011iAT151,CT150,ST15#198512-198711

48750SUPPORT ASSY, REAR SUSPENSION

main48750-32010iAT151,CT150,ST15#198310-198711

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90179-08054iAT151,CT150,ST150198310-198506

main90179-08095iAT151,CT150,ST15#198506-198604

main90179-08111iAT151,CT150,ST15#198604-198711

48753COVER, REAR SUSPENSION SUPPORT

main48753-16010iAT151,CT150,ST15#198508-198711

main48753-32010iAT151,CT150,ST150198310-198508

48780AROD ASSY, STRUT, REAR

main48780-20010iAT151,CT150,ST15#198310-198711

48780BBOLT(FOR STRUT ROD)

main90105-12035iAT151,CT150,ST15#198310-198608

main90105-12082iAT151,CT150,ST15#198608-198702

main90105-12131iAT151,CT150,ST15#198702-198711

48780CNUT(FOR STRUT ROD)

main90179-12023iAT151,CT150,ST15#198310-198608

CARRIER SIDE

main90179-12033iAT151,CT150,ST150198310-198508

BODY SIDE

main90179-12049iAT151,CT150,ST15#198508-198608

BODY SIDE

sub90179-12063

main90179-12062iAT151,CT150,ST15#198608-198711

CARRIER SIDE

main90179-12063iAT151,CT150,ST15#198608-198711

BODY SIDE

48802LINK SUB-ASSY, STABILIZER

main48802-32010iST150..RHD..5F..GL;ST150..RHD..(3FC,4F);ST150..SED..RHD..5F..XL;AT151,CT150..SED..RHD..(GL,XL)..GEN198310-198711

48802DBUSH, STABILIZER LINK

main90385-11021iST150..RHD..5F..GL;ST150..RHD..(3FC,4F);ST150..SED..RHD..5F..XL;AT151,CT150..SED..RHD..(GL,XL)..GEN198310-198711

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10275iST150..RHD..5F..GL;ST150..RHD..(3FC,4F);ST150..SED..RHD..5F..XL;AT151,CT150..SED..RHD..(GL,XL)..GEN198310-198711

48805BAR SUB-ASSY, REAR STABILIZER

main48805-20040iST150..RHD..GEN;AT151..SED..RHD..GEN;AT151..LB..5F..GL..GEN198310-198711

CHKK

main48805-20060iST150..RHD..5F..GL;ST150..RHD..(3FC,4F);ST150..SED..RHD..5F..XL;AT151..SED..RHD..(GL,XL)..GEN198310-198711

NHK

main48805-20070iAT151,CT150,ST150..SED..EUR198310-198711

main48805-20120iAT151,CT150,ST150..LB..EUR198310-198711

main48805-20120iST151198508-198711

NEW ZEALAND SPEC

48815RBUSH, STABILIZER(FOR REAR)

main48818-20030iAT151,CT150,ST150..SED..EUR198310-198711

main48818-20040iST150..RHD..5F..GL;ST150..RHD..(3FC,4F);ST150..SED..RHD..5F..XL;AT151..SED..RHD..(GL,XL)..GEN198310-198711

main48818-20060iST150..RHD..XL..GEN198508-198711

NEW ZEALAND SPEC

main48818-20060iAT151,CT150,ST150..LB..EUR198310-198711

48817RCUSHION, STABILIZER(FOR REAR)

main48817-10010iST150..LB..RHD..GL;AT151,CT150,ST150..SED..RHD..XL198310-198711

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02024iST150..LB..RHD..GL;AT151,CT150,ST150..SED..RHD..XL198310-198711

48824RBRACKET, STABILIZER(FOR REAR)

main48832-32010iAT151,CT150,ST150..EUR198310-198711

9111241040

main91112-41040

9161541025

main91615-41025

9418210800

main94182-10800

9418211400

main94182-11400

36 parts on this diagram · 1 diagram in section
