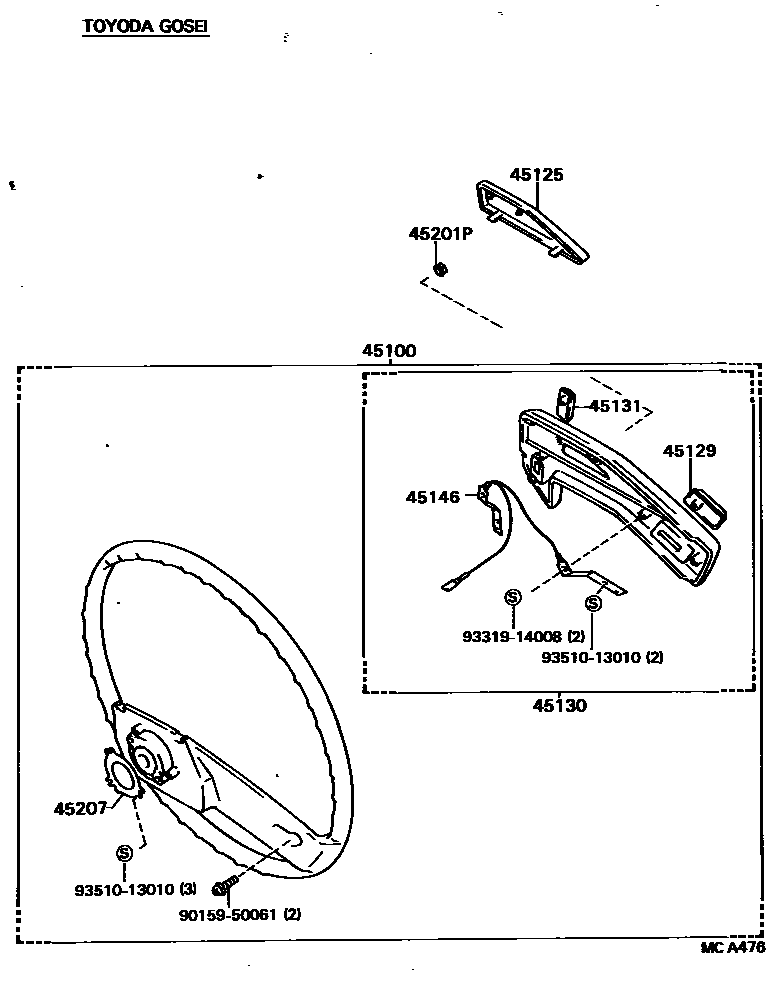

STEERING WHEEL

0001 1 0003 1 0005 1 0006 1 0007 1 0009 1

45100WHEEL ASSY, STEERING

main45100-20280-04iAT151,CT150,ST150..STD,XL198310-198608

BLUE,TOYODA GOSEI,BLUE,TRIM8#

main45100-20290-02iAT151,CT150,ST150..DX,GL,XL198310-198508

URETHANE,MAROON,RED/MAROON,TRIM3#

sub45100-20290

main45100-20290-02iST150..GL..TH198508-198608

MAROON,RED/MAROON,TRIM3#

sub45100-20290

main45100-20290-03iAT151,CT150,ST150..DX,GL,XL198310-198508

URETHANE,GRAY,GRAY,TRIM1#

sub45100-20290

main45100-20290-03iST150..GL..TH198508-198608

GRAY,GRAY,TRIM1#

sub45100-20290

main45100-20290-04iST150..GL..TH198508-198603

BLUE,BLUE,TRIM8#

sub45100-20290

main45100-20290-04iAT151,CT150,ST150..DX,GL,XL198310-198508

URETHANE,BLUE,BLUE,TRIM8#

sub45100-20290

main45100-20290-14iST150..GL..TH198603-198608

BLUE,BLUE,TRIM8#

sub45100-20290

main45100-20300-02iAT151,CT150,ST150..STD,XL198310-198608

MAROON,TOKAIRIKA,RED/MAROON,TRIM3#

sub45100-20300

main45100-20300-03iAT151,CT150,ST150..STD,XL198310-198608

GRAY,TOKAIRIKA,GRAY,TRIM1#

sub45100-20300

main45100-20390-04iAT151,CT150,ST150..XL..(GEN,SAA)198508-198711

BLUE,TOYODA GOSEI,BLUE,TRIM8#

main45100-20400-02iAT151,CT150,ST150..XL..(GEN,SAA)198508-198711

MAROON,TOKAIRIKA,MAROON,TRIM3#

sub45100-20400

main45100-20400-03iAT151,CT150,ST150..XL..(GEN,SAA)198508-198711

GRAY,TOKAIRIKA,GRAY,TRIM1#

sub45100-20400

main45100-20410-02iAT151,CT150,ST15#..EUR,GEN,SAA198508-198711

URETHANE,MAROON,MAROON,TRIM3#

sub45100-20410

main45100-20410-03iAT151,CT150,ST15#..EUR,GEN,SAA198508-198711

URETHANE,GRAY,GRAY,TRIM1#

sub45100-20410

main45100-20410-04iAT151,CT150,ST15#..EUR,GEN,SAA198508-198711

URETHANE,BLUE,BLUE,TRIM8#

sub45100-20410

45125MARK, STEERING WHEEL PAD

main45125-20200-04iAT151,CT150,ST150..STD,XL198310-198608

BLUE,TOYODA GOSEI,BLUE,TRIM8#

main45125-20210-02iST150..GL..TH198508-198608

MAROON,RED/MAROON,TRIM3#

sub45125-20210

main45125-20210-02iAT151,CT150,ST150..(GL,XL)..(GEN,SAA)198310-198508

URETHANE,MAROON,RED/MAROON,TRIM3#

sub45125-20210

main45125-20210-03iAT151,CT150,ST150..(GL,XL)..(GEN,SAA)198310-198508

URETHANE,GRAY,GRAY,TRIM1#

sub45125-20210

main45125-20210-03iST150..GL..TH198508-198608

GRAY,GRAY,TRIM1#

sub45125-20210

main45125-20210-04iST150..GL..TH198508-198608

BLUE,BLUE,TRIM8#

sub45125-20210

main45125-20210-04iAT151,CT150,ST150..(GL,XL)..(GEN,SAA)198310-198508

URETHANE,BLUE,BLUE,TRIM8#

sub45125-20210

main45125-20220-02iAT151,ST150..XL..TH198310-198608

MAROON,TOKAIRIKA,RED/MAROON,TRIM3#

main45125-20220-03iAT151,CT150,ST150..STD,XL198310-198608

GRAY,TOKAIRIKA,GRAY,TRIM1#

main45125-20230-02iAT151,CT150..EUR198310-198508

MAROON,RED/MAROON,TRIM3#

sub45125-20230

main45125-20230-03iAT151,CT150..EUR198310-198508

GRAY,GRAY,TRIM1#

sub45125-20230

main45125-20230-04iAT151,CT150..EUR198310-198508

BLUE,BLUE,TRIM8#

sub45125-20230

main45125-20270-04iAT151,CT150,ST150..XL..(GEN,SAA)198508-198711

BLUE,TOYODA GOSEI,BLUE,TRIM8#

main45125-20280-02iAT151,CT150,ST150..XL..(GEN,SAA)198508-198711

MAROON,TOKAIRIKA,MAROON,TRIM3#

main45125-20280-03iAT151,CT150,ST150..XL..(GEN,SAA)198508-198711

GRAY,TOKAIRIKA,GRAY,TRIM1#

main45125-20290-02iAT151,CT150,ST15#..GEN,SAA198508-198711

URETHANE,MAROON,MAROON,TRIM3#

sub45125-20290

main45125-20290-03iAT151,CT150,ST15#..GEN,SAA198508-198711

URETHANE,GRAY,GRAY,TRIM1#

sub45125-20290

main45125-20290-04iAT151,CT150,ST15#..GEN,SAA198508-198711

URETHANE,BLUE,BLUE,TRIM8#

sub45125-20290

main45125-20300-02iAT151,CT150,ST150..EUR198508-198711

MAROON,MAROON,TRIM3#

sub45125-20300

main45125-20300-03iAT151,CT150,ST150..EUR198508-198711

GRAY,GRAY,TRIM1#

sub45125-20300

main45125-20300-04iAT151,CT150,ST150..EUR198508-198711

BLUE,BLUE,TRIM8#

sub45125-20300

45129BUTTON, HORN, NO.2

main45129-20080-04iAT151,CT150,ST150..STD,XL198310-198608

BLUE,TOYODA GOSEI,BLUE,TRIM8#

main45129-20090-02iAT151,ST150..XL..TH198310-198608

MAROON,TOKAIRIKA,RED/MAROON,TRIM3#

main45129-20090-03iAT151,CT150,ST150..STD,XL198310-198608

GRAY,TOKAIRIKA,GRAY,TRIM1#

45130BUTTON ASSY, HORN

main45130-20200-04iAT151,ST150..XL..TH198310-198608

BLUE,TOYODA GOSEI,BLUE,TRIM8#

main45130-20210-02iAT151,CT150,ST150..STD,XL198310-198608

MAROON,TOKAIRIKA,RED/MAROON,TRIM3#

main45130-20210-03iAT151,CT150,ST150..STD,XL198310-198608

GRAY,TOKAIRIKA,GRAY,TRIM1#

main45130-20370-02iAT151,CT150,ST150..XL..(GEN,SAA)198508-198711

MAROON,TOKAIRIKA,MAROON,TRIM3#

main45130-20370-03iAT151,CT150,ST150..XL..(GEN,SAA)198508-198711

GRAY,TOKAIRIKA,GRAY,TRIM1#

45131BUTTON, HORN, NO.1

main45131-20170-04iAT151,ST150..XL..TH198310-198608

BLUE,TOYODA GOSEI,BLUE,TRIM8#

main45131-20180-02iAT151,ST150..XL..TH198310-198608

MAROON,TOKAIRIKA,RED/MAROON,TRIM3#

main45131-20180-03iAT151,ST150..XL..TH198310-198608

GRAY,TOKAIRIKA,GRAY,TRIM1#

45146SPRING, HORN BUTTON CONTACT

main45146-20130iAT151,CT150,ST150..STD,XL198310-198608

TOKAIRIKA

main45146-35070iAT151,CT150,ST150..STD,XL198310-198608

TOYODA GOSEI

45201PNUT, STEERING WHEEL SET

main90179-12086iAT151,CT150,ST15#198310-198711

45207RING, HORN CONTACT

main45176-20030iAT151,ST150..XL..TH198310-198608

TOYODA GOSEI

main45176-20050iAT151,CT150,ST150..STD,XL198310-198711

TOKAIRIKA

main45176-20070iAT151,CT150,ST150..XL..(GEN,SAA)198508-198607

TOYODA GOSEI

main45176-20100iAT151,CT150,ST150..XL..(GEN,SAA)198607-198711

TOYODA GOSEI

main45176-30070iAT151,CT150,ST15#..EUR,GEN,SAA198310-198711

URETHANE

main45176-30070iST150..GL..TH198508-198608

9015950061

main90159-50061

9331914008

main93319-14008

9351013010

main93510-13010

11 parts on this diagram · 6 diagrams in section
