ENGINE OVERHAUL GASKET KIT

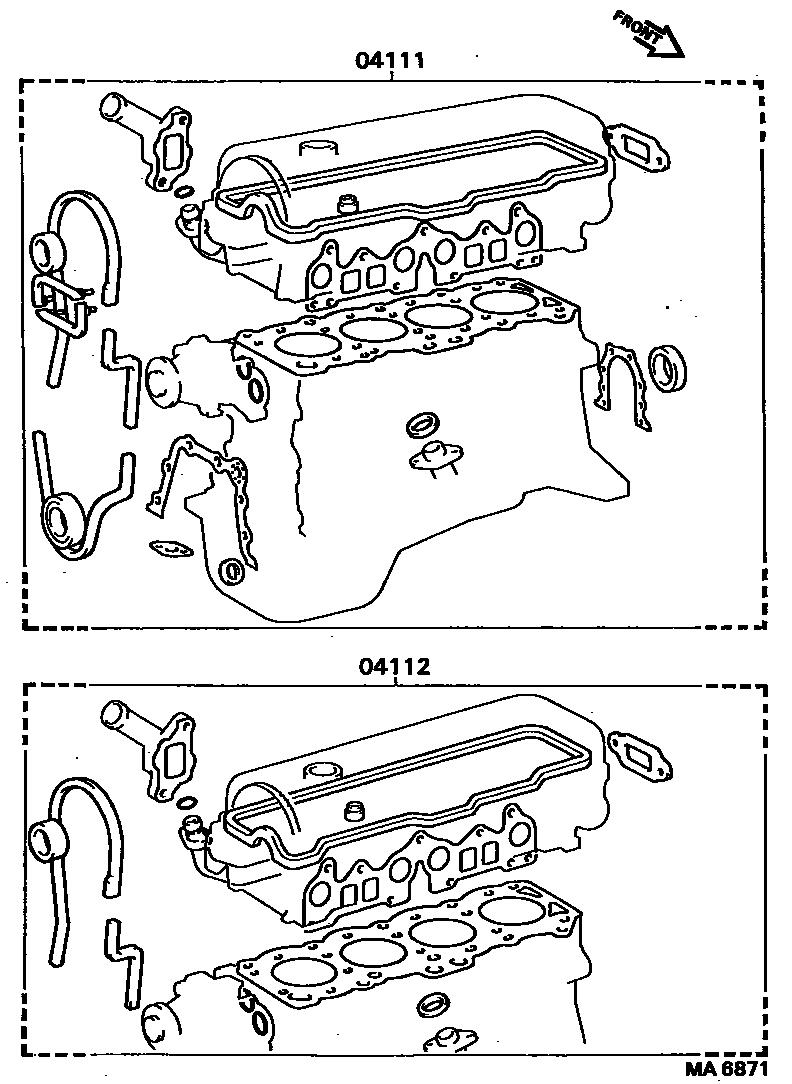

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-16040i198310-198505
sub04111-16041
main04111-16041i198505-198508
sub04111-16042
main04111-16090i198508-198711
sub04111-16091
main04111-63011i198511-198610
sub04111-63012
main04111-63012i198610-198711
sub04111-63013
main04111-63020i198310-198511
sub04111-63021
main04111-63040i198508-198610
sub04111-63041
main04111-63041i198610-198711
sub04111-63042
main04111-64050i198310-198501
sub04111-64051
main04111-64051i198501-198505
sub04111-64052
main04111-64052i198505-198508
sub04111-64053
main04111-64070i198508-198608
sub04111-64071
main04111-64071i198608-198609
sub04111-64072
main04111-64072i198609-198711
sub04111-64073
main04111-74010i198508-198610
sub04111-74011
main04111-74011i198610-198711
sub04111-74012
04112GASKET KIT, ENGINE VALVE GRIND
main04112-16040i198310-198505
sub04112-16041
main04112-16041i198505-198508
sub04112-16042
main04112-16090i198508-198711
sub04112-16091
main04112-63011i198511-198711
sub04112-63012
main04112-63020i198310-198511
sub04112-63021
main04112-63040i198508-198711
sub04112-63041
main04112-64050i198310-198501
sub04112-64051
main04112-64051i198501-198508
sub04112-64052
main04112-64070i198508-198609
sub04112-64071
main04112-64071i198609-198711
sub04112-64073
main04112-74010i198508-198711
sub04112-74011

2 parts on this diagram · 4 diagrams in section
