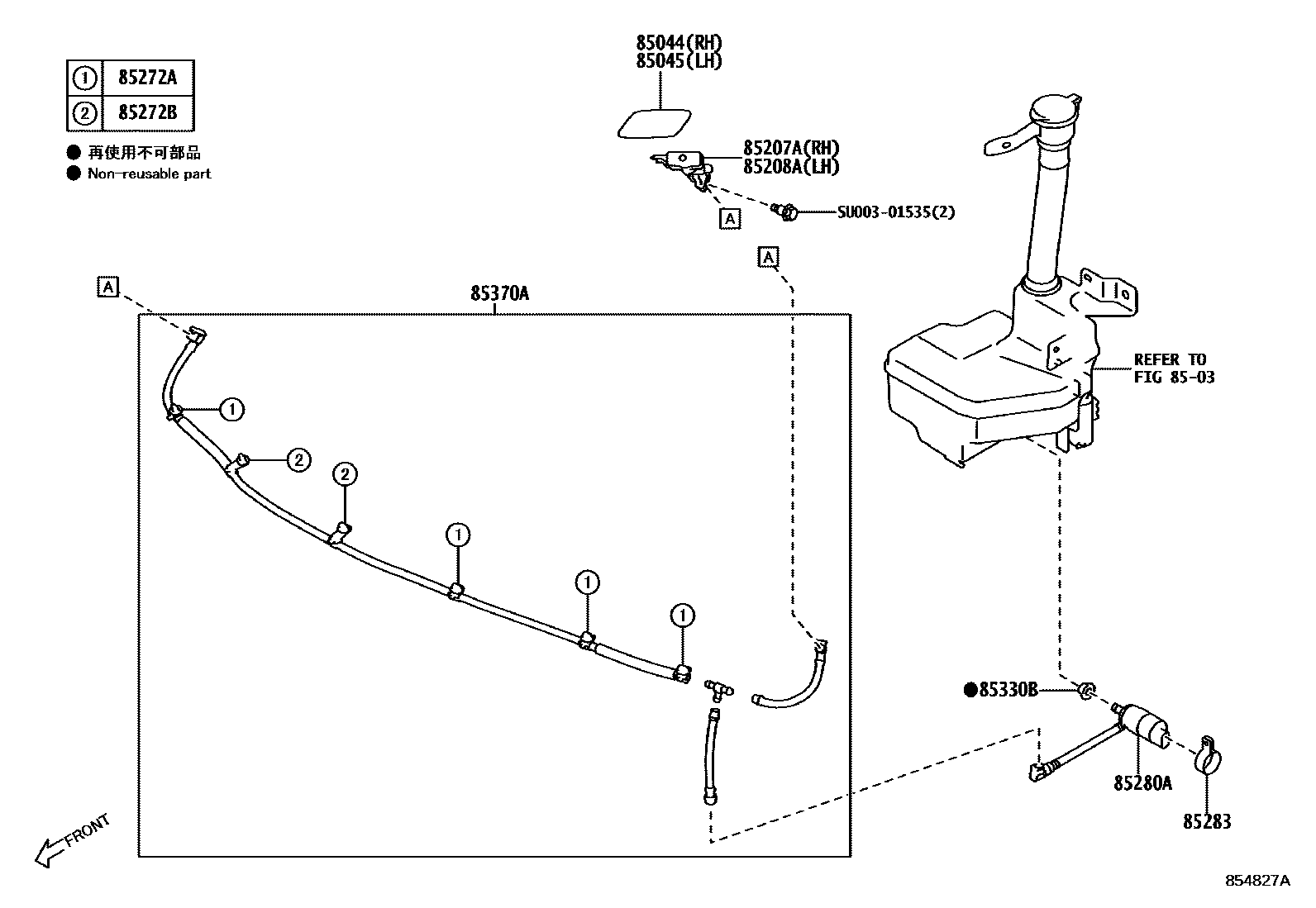

HEADLAMP CLEANER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH

mainSU00310152iZN8202203-202206

BRIGHT BLUE,DAR

mainSU00310153iZN8..(BASE,HIGH)..D202408

SAPPHIRE BLUE PEARL,WCH

mainSU00310154iZN8..(BASE,HIGH)..B202206-202310

MAGNETITE GRAY M,P8Y

mainSU00310155iZN8..C202311

ICE SILVER METALLIC,G1U

mainSU00310156iZN8..(BASE,HIGH)..B202206-202310

IGNITION RED,DCK

mainSU00310157iZN8202203-202206

CRYSTAL BLACK SILICA,D4S

mainSU00310158iZN8..(BASE,HIGH)..D202408

CRYSTAL WHITE PEARL,K1X

mainSU00311106iZN8..ORA202206-202310

SOLAR ORANGE PEARL

mainSU00311434iZN8..C202311

OASIS BLUE,XDA

mainSU00311920iZN8..D202408

MOSS GREEN,DMG

85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH

mainSU00310159iZN8..(BASE,HIGH)..B202206-202310

BRIGHT BLUE,DAR

mainSU00310160iZN8..(BASE,HIGH)..B202206-202310

SAPPHIRE BLUE PEARL,WCH

mainSU00310161iZN8202203-202206

MAGNETITE GRAY M,P8Y

mainSU00310162iZN8..(BASE,HIGH)..D202408

ICE SILVER METALLIC,G1U

mainSU00310163iZN8..C202311

IGNITION RED,DCK

mainSU00310164iZN8202203-202206

CRYSTAL BLACK SILICA,D4S

mainSU00310165iZN8..(BASE,HIGH)..D202408

CRYSTAL WHITE PEARL,K1X

mainSU00311107iZN8..ORA202206-202310

SOLAR ORANGE PEARL

mainSU00311435iZN8..C202311

OASIS BLUE,XDA

mainSU00311921iZN8..D202408

MOSS GREEN,DMG

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

mainSU00310150iZN8202203-202206

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

mainSU00310151iZN8202203-202206

85272ACLAMP, HEADLAMP CLEANER, NO.1

mainSU00305872×4iZN8202203-202206

85272BCLAMP, HEADLAMP CLEANER, NO.2

mainSU00305873×2iZN8202203-202206

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

mainSU00305972iZN8202203-202206

85283BRACKET, HEADLAMP CLEANER WASHER

mainSU00302718iZN8202203-202206

85330BBUSH, HEADLAMP CLEANER WASHER JAR

mainSU00302131iZN8202203-202206

85370AHOSE ASSY, HEADLAMP CLEANER WASHER, NO.1

mainSU00310166iZN8202203-202206

SU00301535

mainSU003-01535

12 parts on this diagram · 1 diagram in section
