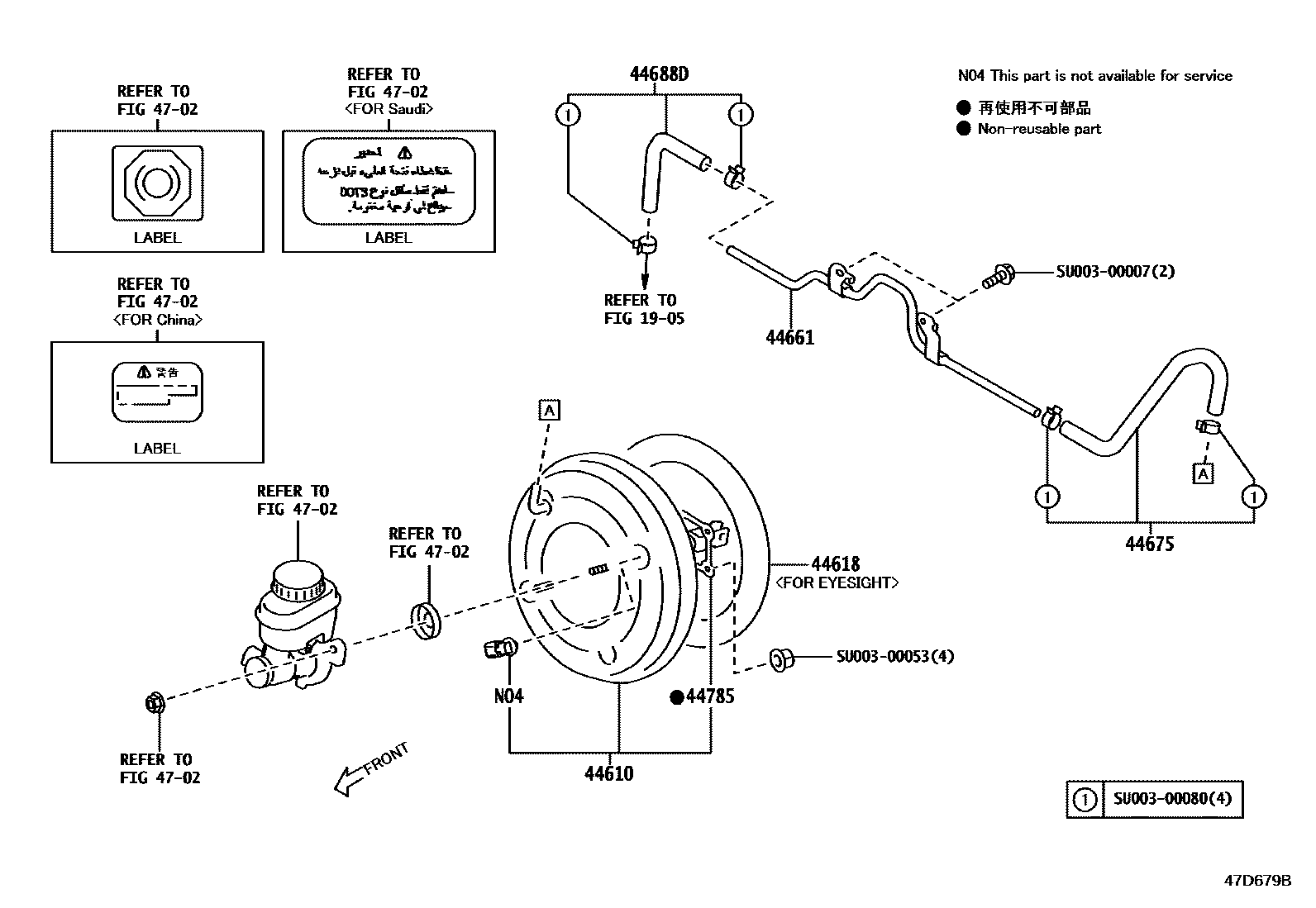

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1905VACUUM PUMP

→ Go to FIG 19-05

44610BOOSTER ASSY, BRAKE

mainSU00308833iZN8..RHD202203-202206

mainSU00309709iZN8..LHD202203-202206

mainSU00311613iZN8..RHD..C202401

mainSU00311614iZN8..LHD..C202401

44618SEAL, BOOSTER BODY

mainSU00308834iZN8..6FC202203-202206

44661TUBE, BOOSTER VACUUM

mainSU00310347iZN8..LHD..D202408

44675HOSE, BOOSTER VACUUM

mainSU00309858iZN8..LHD202203-202206

44688DHOSE, BOOSTER VACUUM

mainSU00309859iZN8..LHD202203-202206

44785GASKET, BRAKE BOOSTER

mainSU00304545iZN8202203-202206

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

SU00300007

mainSU003-00007

SU00300053

mainSU003-00053

SU00300080

mainSU003-00080

11 parts on this diagram · 2 diagrams in section
