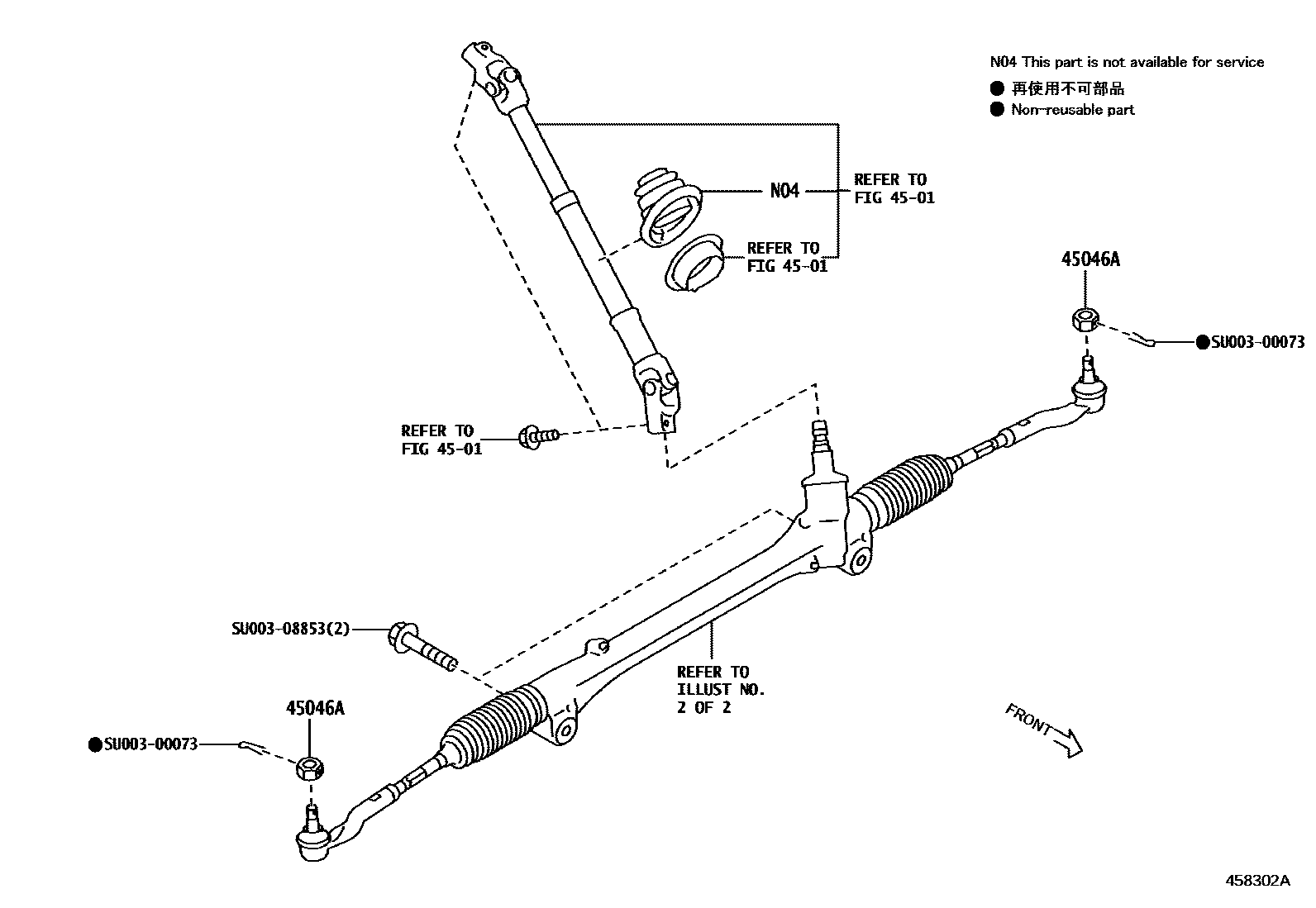

Toyota GR 86 — FRONT STEERING GEAR & LINK

4501STEERING COLUMN & SHAFT

→ Go to FIG 45-01

45046END SUB-ASSY, TIE ROD, RH

SU003-00047

SU003-00833

45046ANUT, CASTLE(FOR TIE ROD END)

SU00300073

SU003-00073

SU00308853

SU003-08853

5 parts on this diagram · 4 diagrams in section

FRONT STEERING GEAR & LINK for Toyota GR 86

This section contains 20 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota GR 86. Key components include: REPAIR KIT, TIE ROD END, CAP, POWER STEERING RACK HOUSING, STEERING COLUMN & SHAFT, END SUB-ASSY, TIE ROD, RH, NUT, CASTLE(FOR TIE ROD END).
