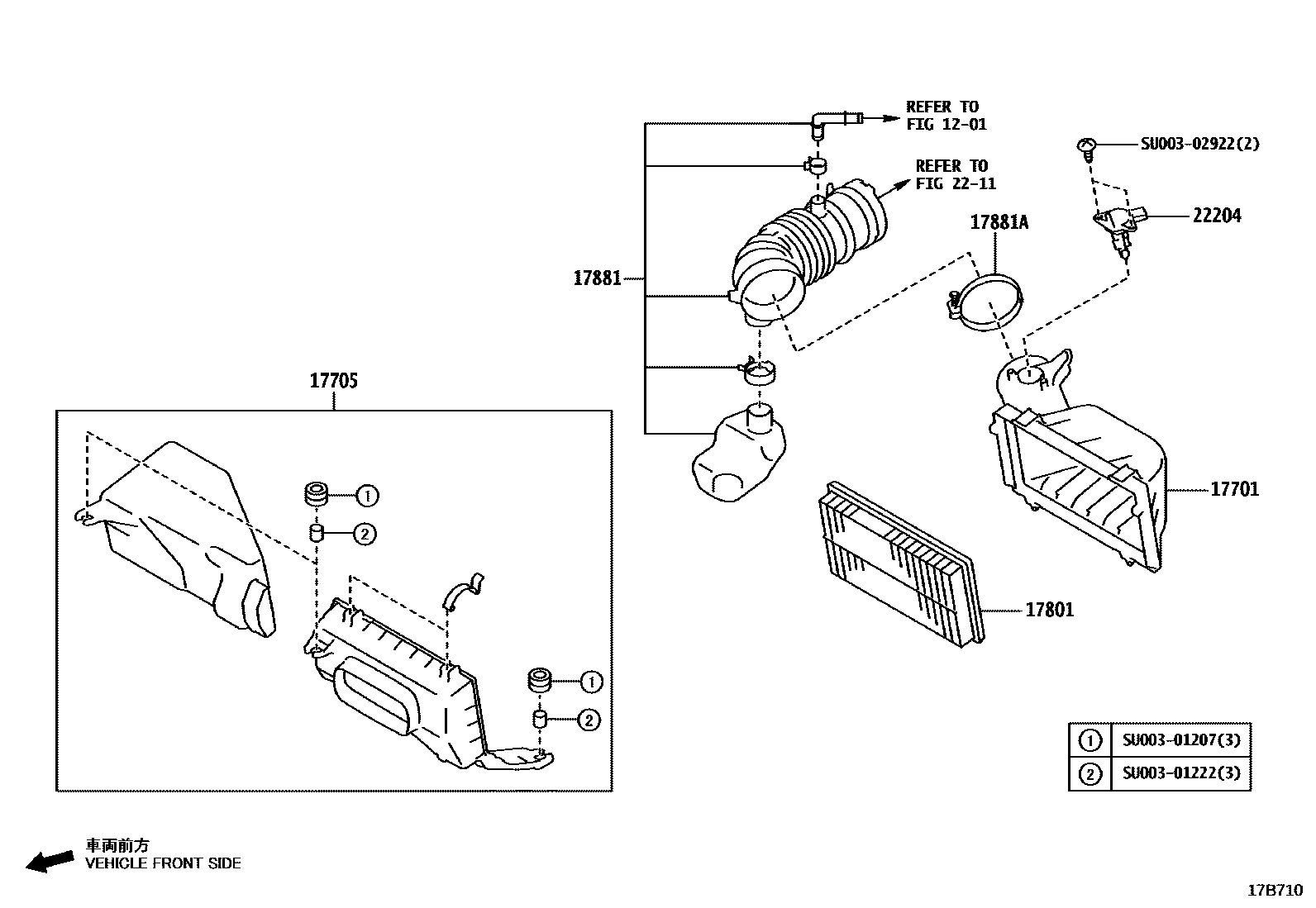

AIR CLEANER

0001 1 0002 1

1201VENTILATION HOSE

→ Go to FIG 12-01

17701CASE SUB-ASSY, AIR CLEANER

mainSU00309558iFA24..ZN8202203-202206

17705CAP SUB-ASSY, AIR CLEANER

mainSU00310481iFA24..ZN8202203-202206

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

mainSU00309025iFA24..ZN8202203-202206

17881HOSE, AIR CLEANER, NO.1

mainSU00310479iFA24..ZN8202203-202206

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

mainSU00309559iFA24..ZN8202203-202206

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

22204METER SUB-ASSY, INTAKE AIR FLOW

mainSU00308427iFA24..ZN8202203-202206

SU00301207

mainSU003-01207

SU00301222

mainSU003-01222

SU00302922

mainSU003-02922

11 parts on this diagram · 2 diagrams in section
