ENGINE OIL PUMP

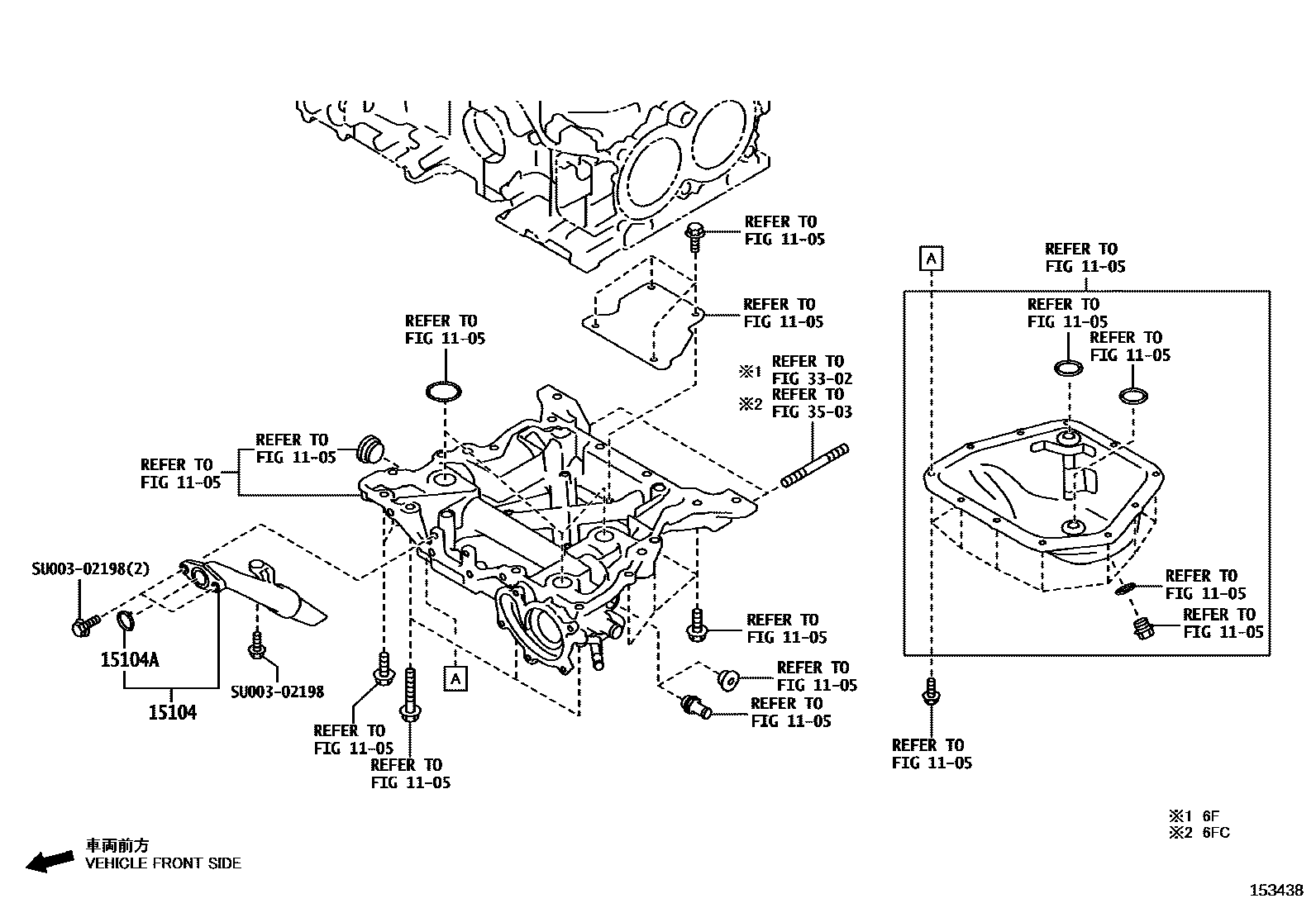

Parts diagram

1105CYLINDER BLOCK

→ Go to FIG 11-05

15104STRAINER SUB-ASSY, OIL

mainSU00309485i202203-202206

15104ARING, O(FOR OIL STRAINER)

mainSU00308410i202203-202206

3302CLUTCH HOUSING & TRANSMISSION CASE (MTM)

→ Go to FIG 33-02

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

SU00302198

mainSU003-02198

6 parts on this diagram · 1 diagram in section
