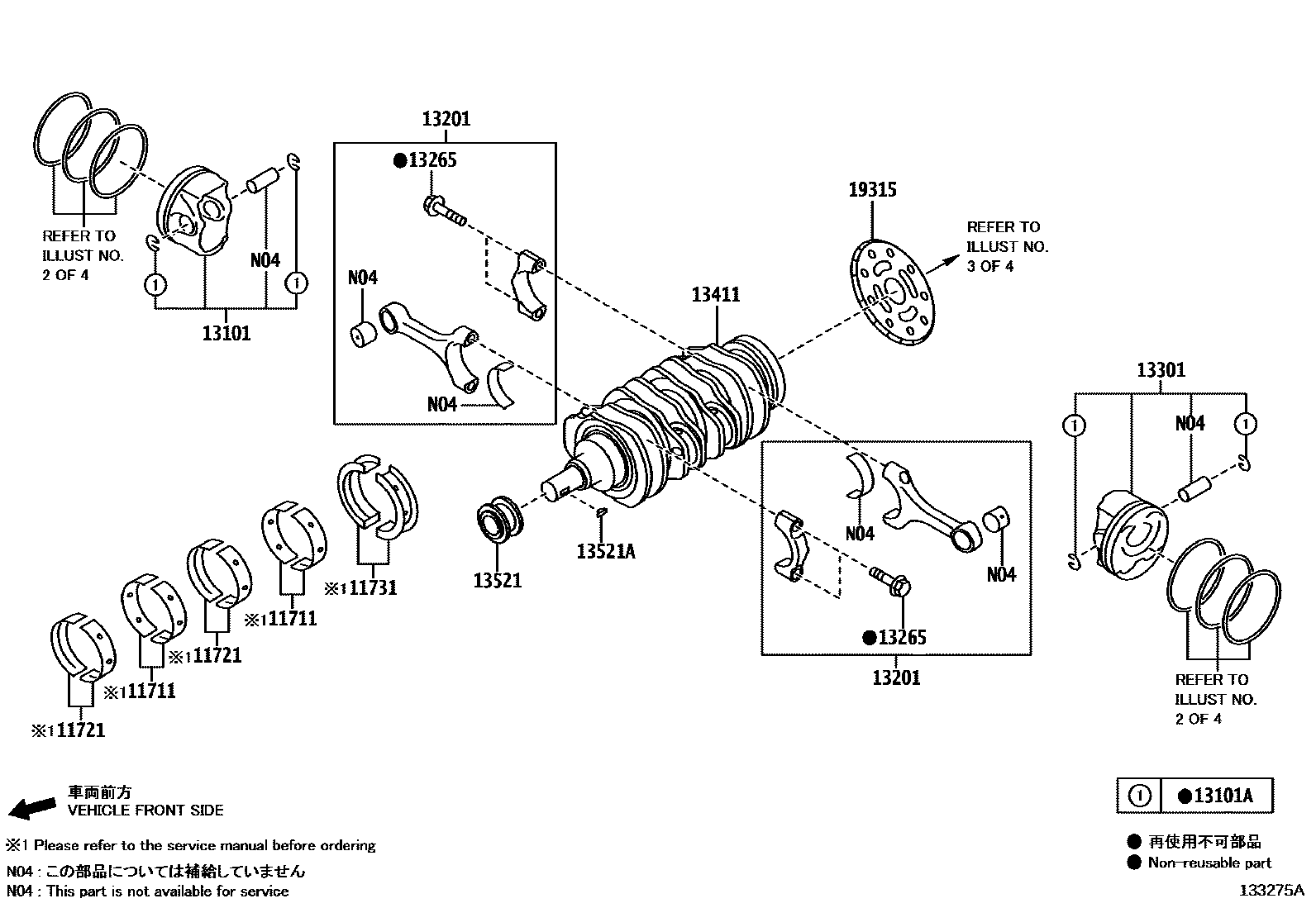

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
STD 3
STD 0
STD 1
STD 2
STD 4
11721BEARING, CRANKSHAFT, NO.2
STD 3
STD 1
STD 2
STD 4
STD 5
11731BEARING, CRANKSHAFT, NO.3
STD 3
STD 0
STD 1
STD 2
STD 4
13101PISTON SUB-ASSY, W/PIN
STD GRADE A
STD GRADE B
O/S 0.25
O/S 0.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
STD 1
STD 2
STD 3
13265BOLT, CONNECTING ROD
13301PISTON SUB-ASSY, W/PIN, LH
STD GRADE A
STD GRADE B
O/S 0.25
O/S 0.50
13411CRANKSHAFT
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
19315PLATE, CRANK ANGLE SENSOR, NO.1
