VENTILATION HOSE

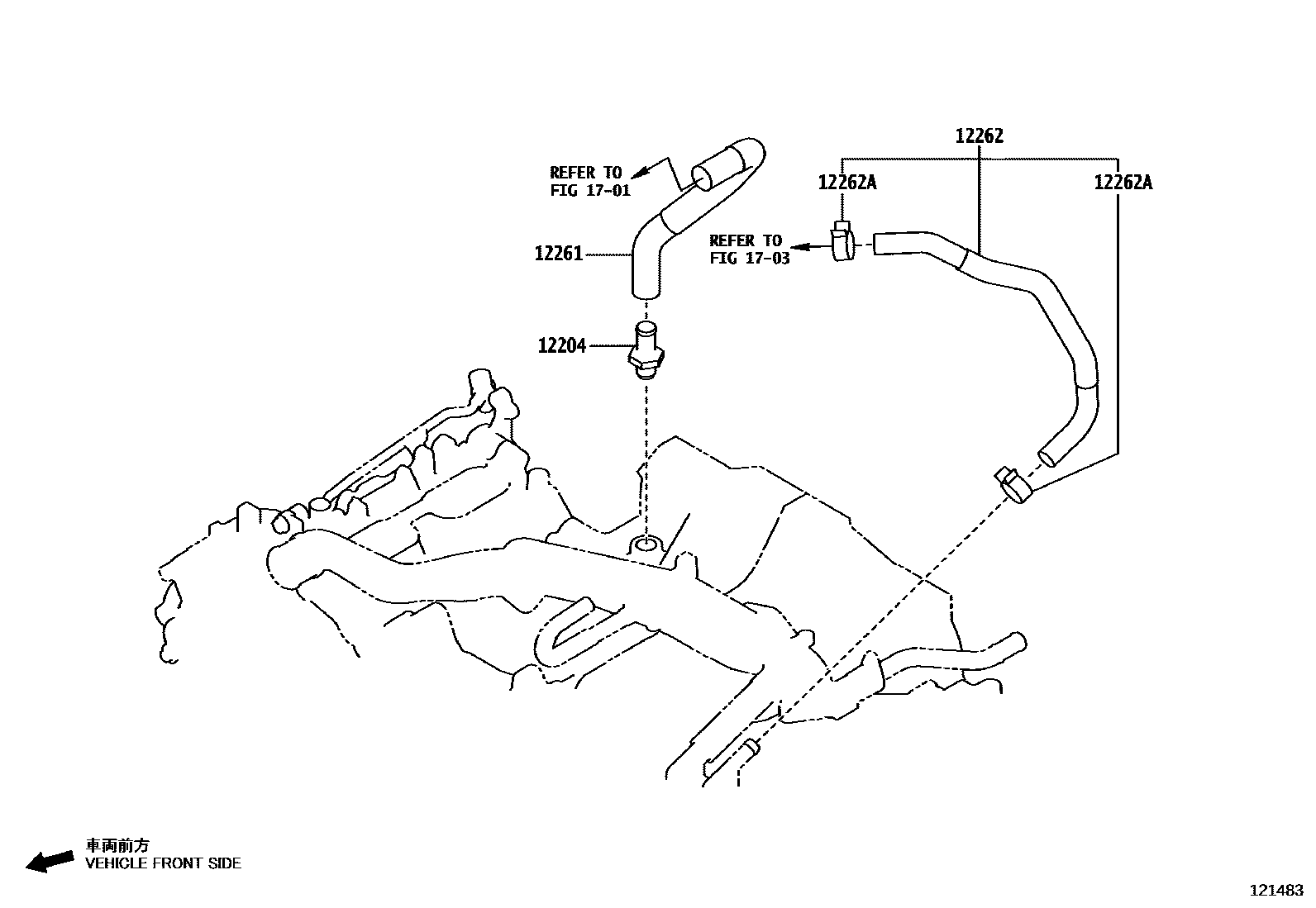

Parts diagram

12204VALVE SUB-ASSY, VENTILATION

mainSU00308382i202203-202206

12261HOSE, VENTILATION

mainSU00309437i202203-202206

12262HOSE, VENTILATION, NO.2

mainSU00308996i202203-202206

12262ACLIP(FOR VENTILATION HOSE NO.2)

mainSU00300080×2i202203-202206

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

6 parts on this diagram · 1 diagram in section
