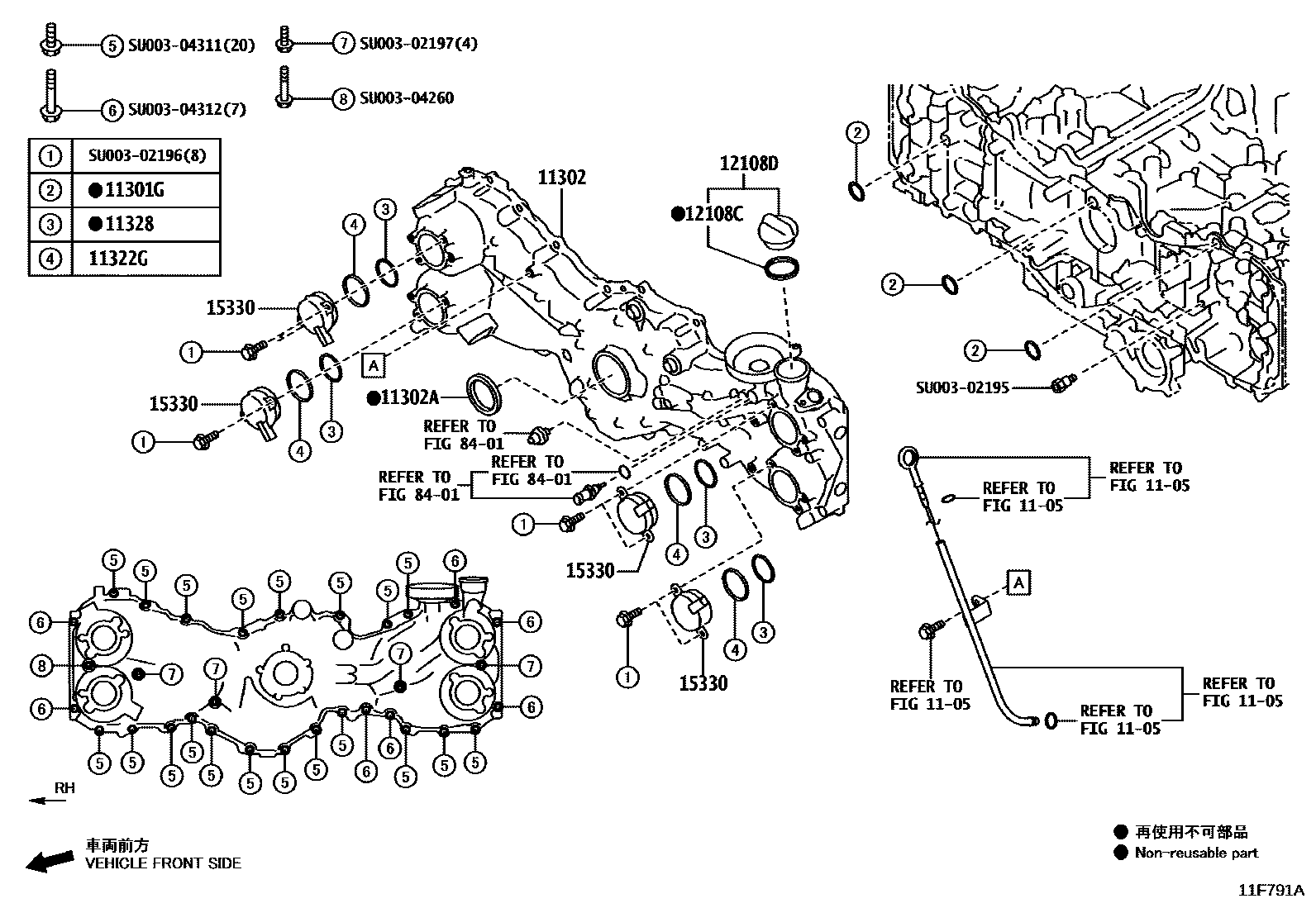

TIMING GEAR COVER & REAR END PLATE

1105CYLINDER BLOCK

→ Go to FIG 11-05

11301GRING, O(FOR TIMING GEAR CASE, UPPER)

mainSU00302183×3iFA24..ZN8202203-202206

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

mainSU00309594iFA24..ZN8202203-202206

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

mainSU00309477iFA24..ZN8202203-202206

11322GRING, O(FOR TIMING GEAR COVER)

mainSU00300332×4iFA24..ZN8202203-202206

11328GASKET, TIMING GEAR OR CHAIN COVER

mainSU00302191×4iFA24..ZN8202203-202206

12108CGASKET

mainSU00302160iFA24..ZN8202203-202206

12108DCAP ASSY, OIL FILLER

mainSU00304083iFA24..ZN8202203-202206

15330VALVE ASSY, CAM TIMING OIL CONTROL

mainSU00307806×4iFA24..ZN8202203-202206

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

SU00302195

mainSU003-02195

SU00302196

mainSU003-02196

SU00302197

mainSU003-02197

SU00304260

mainSU003-04260

SU00304311

mainSU003-04311

SU00304312

mainSU003-04312

16 parts on this diagram · 1 diagram in section
