HEADLAMP CLEANER

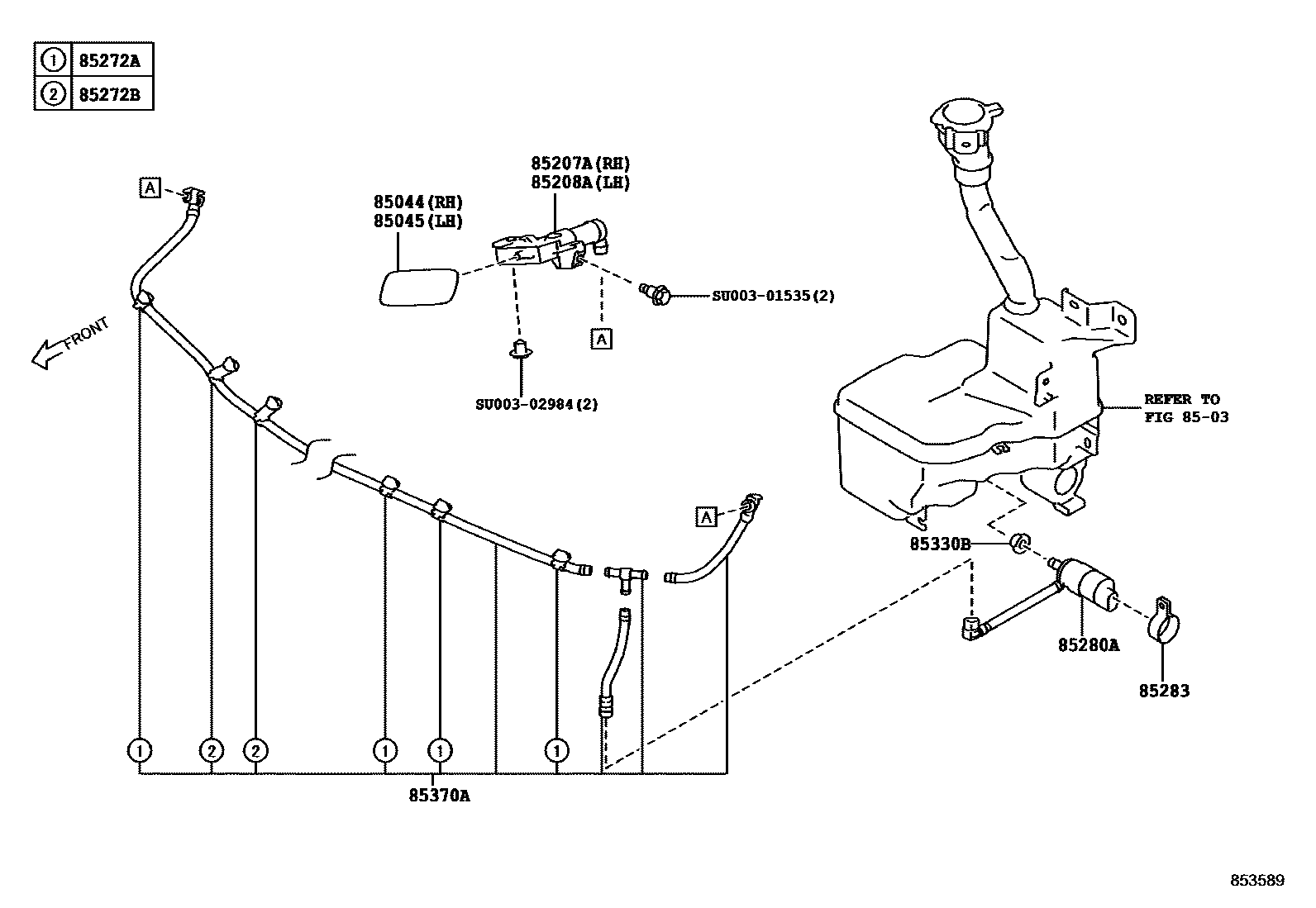

Parts diagram

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH

mainSU00306631i201608-201904

DARK GRAY METALLIC,61K

mainSU00306632i201608-202104

LAPIS BLUE PEARL,K3X

mainSU00306633i201608-201709

ORANGE METALLIC,H8R

mainSU00306634i201608-202104

ICE SILVER METALLIC,G1U

mainSU00306635i201608-202104

PURE RED,M7Y

mainSU00306636i201608-202104

CRYSTAL BLACK SILICA,D4S

mainSU00306637i201608-202104

CRYSTAL WHITE PEARL,K1X

mainSU00307462i201608-201709

SOLAR ORANGE

mainSU00307714i201710-201803

SOLID GRAY,PBA

mainSU00307850i201804-202104

BRIGHT BLUE,DAR

mainSU00308172i201903-202104

MAGNETITE GRAY M,P8Y

85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH

mainSU00306638i201608-201904

DARK GRAY METALLIC,61K

mainSU00306639i201608-202104

LAPIS BLUE PEARL,K3X

mainSU00306640i201608-201709

ORANGE METALLIC,H8R

mainSU00306641i201608-202104

ICE SILVER METALLIC,G1U

mainSU00306642i201608-202104

PURE RED,M7Y

mainSU00306643i201608-202104

CRYSTAL BLACK SILICA,D4S

mainSU00306644i201608-202104

CRYSTAL WHITE PEARL,K1X

mainSU00307463i201608-201709

SOLAR ORANGE

mainSU00307715i201710-201803

SOLID GRAY,PBA

mainSU00307851i201804-202104

BRIGHT BLUE,DAR

mainSU00308173i201903-202104

MAGNETITE GRAY M,P8Y

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

mainSU00306645i201608-202104

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

mainSU00306646i201608-202104

85272ACLAMP, HEADLAMP CLEANER, NO.1

mainSU00305872i201608-202104

85272BCLAMP, HEADLAMP CLEANER, NO.2

mainSU00305873i201608-202104

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

mainSU00307024i201608-202104

85283BRACKET, HEADLAMP CLEANER WASHER

mainSU00302718i201608-202104

85330BBUSH, HEADLAMP CLEANER WASHER JAR

mainSU00302131i201608-202104

85370AHOSE ASSY, HEADLAMP CLEANER WASHER, NO.1

mainSU00306647i201608-202104

SU00301535

mainSU003-01535

SU00302984

mainSU003-02984

13 parts on this diagram · 1 diagram in section
