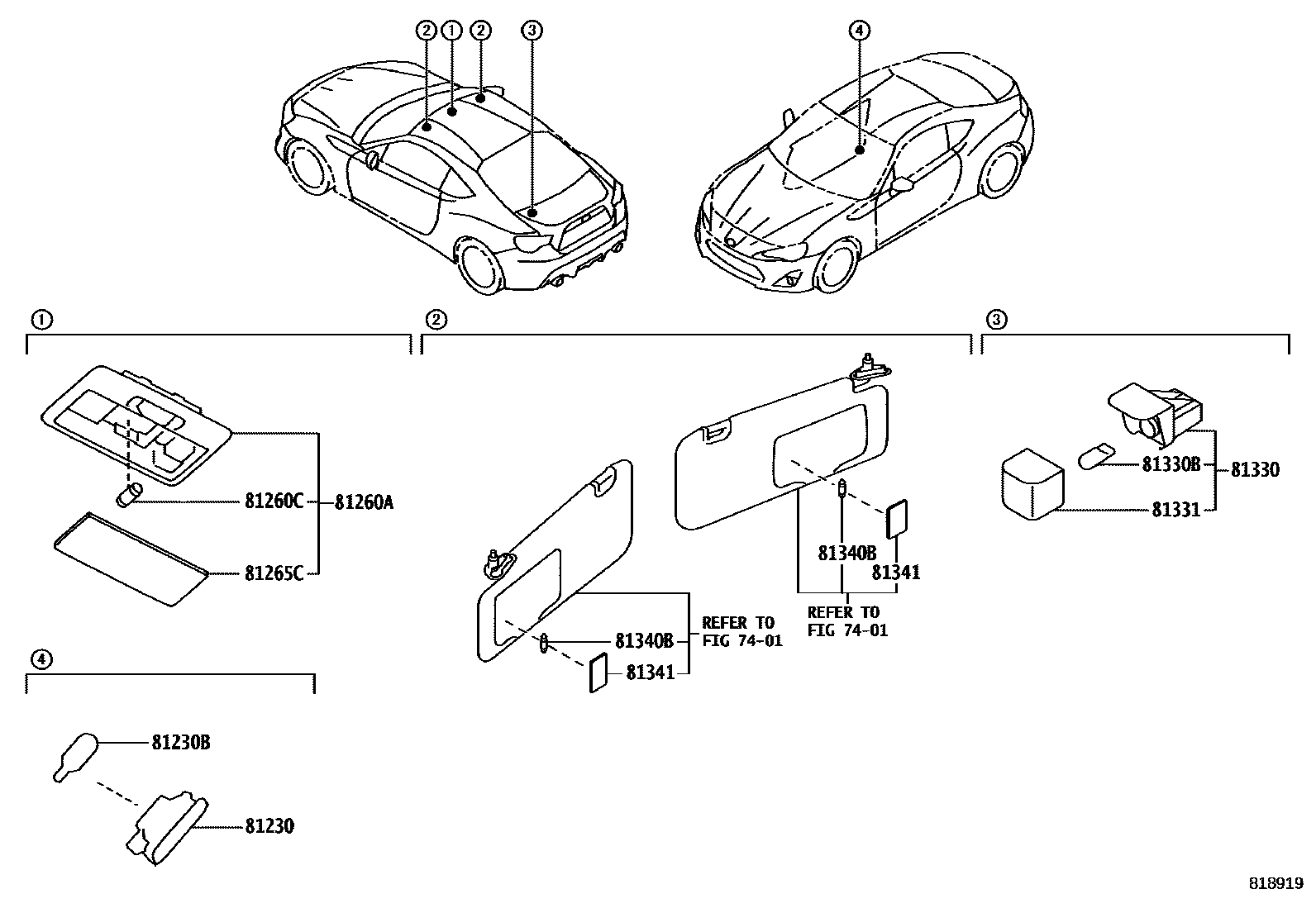

INTERIOR LAMP

7401ARMREST & VISOR

→ Go to FIG 74-01

81230LAMP ASSY, COURTESY

mainSU00303290iZN6..HI,SPE201608-202104

81230BBULB(FOR COURTESY LAMP)

mainSU00303297iZN6..HI,SPE201608-202104

12V 5W

81260ALAMP ASSY, MAP

mainSU00302522iZN6201608-202104

BLACK

81260CBULB(FOR MAP LAMP)

mainSU00302569iZN6201608-202104

12V 10W

81265CLENS, MAP LAMP, NO.1

mainSU00302526iZN6201608-202104

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

mainSU00302521iZN6201608-201903

mainSU00308197iZN6..G201903-202006

mainSU00308734iZN6202006-202104

81330BBULB, LUGGAGE COMPARTMENT LAMP

mainSU00301984iZN6201608-202006

12V 5W

mainSU00302129iZN6202006-202104

12V 5W

81331LENS, LUGGAGE COMPARTMENT LAMP

mainSU00302527iZN6201608-202104

81340BBULB (FOR VANITY LAMP)

mainSU00305707iZN6..HI,SPE201608-202104

12V 2W

81341LENS, VANITY LAMP

mainSU00303185iZN6..HI,SPE201608-202104

11 parts on this diagram · 1 diagram in section
