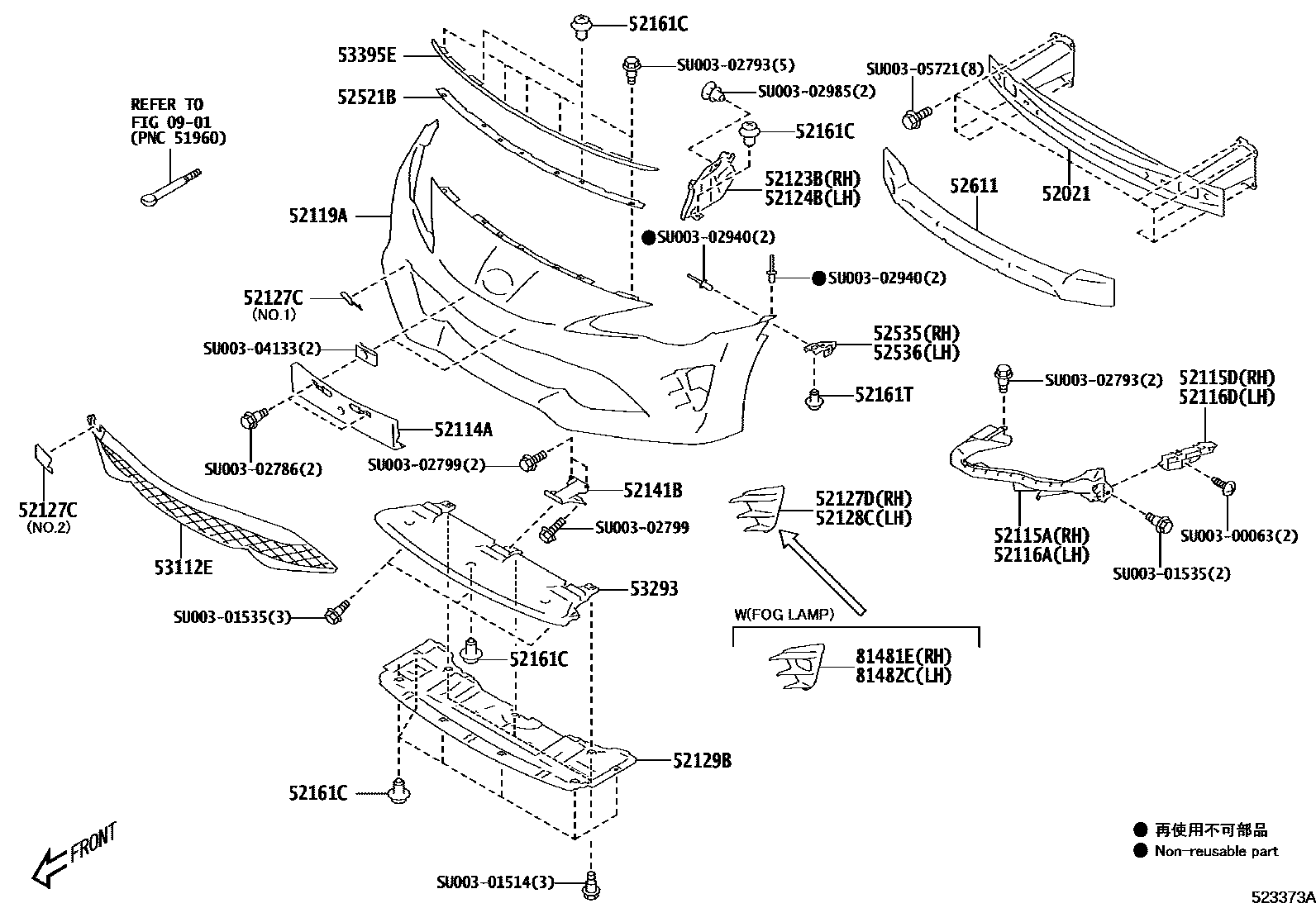

FRONT BUMPER & BUMPER STAY

0901

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

mainSU00301508iZN6201608-202104

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

mainSU00306857iZN6..6FC..SPE;ZN6..LHD..6F..SPE;ZN6..LHD..(BASE,HI)..EUR201608-201709

DESTINATION CODE=KE

mainSU00306857iZN6..6FC..SPE;ZN6..LHD..6F..SPE;ZN6..LHD..(BASE,HI)..EUR201608-201904

DESTINATION CODE=EN

mainSU00306857iZN6..6FC..SPE;ZN6..LHD..6F..SPE;ZN6..LHD..(BASE,HI)..EUR201608-202104

DESTINATION CODE=K8

mainSU00306857iZN6..6FC..SPE;ZN6..LHD..6F..SPE;ZN6..LHD..(BASE,HI)..EUR201608-202104

DESTINATION CODE=KY

mainSU00306857iZN6..RHD..6F..SPE;ZN6..RHD..(BASE,HI)201608-202104

DESTINATION CODE=EK

mainSU00306857iZN6..RHD..6F..SPE;ZN6..RHD..(BASE,HI)201608-202104

DESTINATION CODE=ER

mainSU00306857iZN6..RHD..6F..SPE;ZN6..RHD..(BASE,HI)201608-202104

DESTINATION CODE=KC

mainSU00306857iZN6..LHD201710-202104

DESTINATION CODE=K2

mainSU00306857iZN6..LHD201710-202104

DESTINATION CODE=KV

mainSU00306859iZN6..CHI201608-202104

52115ASUPPORT, FRONT BUMPER SIDE, RH

mainSU00306837iZN6201608-201701

subSU003-07494

mainSU00307494iZN6201701-202104

52115DSUPPORT, FRONT BUMPER SIDE, NO.2 RH

mainSU00301498iZN6201608-202104

52116ASUPPORT, FRONT BUMPER SIDE, LH

mainSU00306838iZN6201608-201701

subSU003-07495

mainSU00307495iZN6201701-202104

52116DSUPPORT, FRONT BUMPER SIDE, NO.2 LH

mainSU00301499iZN6201608-202104

52119ACOVER, FRONT BUMPER

mainSU00306826iZN6201608-202104

PAINT REQ.

52123BPLATE, FRONT BUMPER REINFORCEMENT, RH

mainSU00301537iZN6..G201608-202104

52124BPLATE, FRONT BUMPER REINFORCEMENT, LH

mainSU00301538iZN6201608-202104

52127CCOVER, FRONT BUMPER HOLE

mainSU00306845iZN6201608-201709

NO.2:REFER ILLUST.

mainSU00306849iZN6..RHD..BASE201608-201709

MATERIAL COLOR,61K,D4S,G1U,H8R,K1X,K3X,M7Y,NBB,NO.1:REFER ILLUST.

mainSU00306849iZN6..HI,SPE;ZN6..LHD..BASE201608-201709

MATERIAL COLOR,61K,D4S,G1U,H8R,K1X,K3X,M7Y,NO.1:REFER ILLUST.

mainSU00306849iZN6201710-201803

MATERIAL COLOR,61K,D4S,G1U,K1X,K3X,M7Y,PBA,NO.1:REFER ILLUST.

mainSU00306849iZN6..G201804-201904

MATERIAL COLOR,61K,D4S,DAR,G1U,K1X,K3X,M7Y,NO.1:REFER ILLUST.

mainSU00306849iZN6..H201903-202104

MATERIAL COLOR,D4S,DAR,G1U,K1X,K3X,M7Y,P8Y,NO.1:REFER ILLUST.

52127DCOVER, FRONT BUMPER HOLE, RH

mainSU00306840iZN6..RHD..BASE201608-202104

52128CCOVER, FRONT BUMPER HOLE, LH

mainSU00306841iZN6..RHD..BASE..G201608-202104

52129BCOVER, FRONT BUMPER, LOWER

mainSU00304308iZN6..H201608-202104

52141BSTAY, FRONT BUMPER

mainSU00301511iZN6..G201608-202104

52161CPIECE, FRONT BUMPER

mainSU00302984iZN6..H201608-202104

52161TPIECE, FRONT BUMPER

mainSU00302974iZN6..H201608-202104

52521BRETAINER, FRONT BUMPER, UPPER

mainSU00305827iZN6..G201608-202104

52535RETAINER, FRONT BUMPER SIDE, RH

mainSU00301505iZN6..G201608-202104

52536RETAINER, FRONT BUMPER SIDE, LH

mainSU00301506iZN6201608-202104

52611ABSORBER, FRONT BUMPER ENERGY

mainSU00301495iZN6..H201608-202104

53112EGRILLE, RADIATOR, LOWER NO.1

mainSU00306844iZN6..G201608-202104

NO PAINT REQ.

53293BRACKET, FRONT BUMPER STAY

mainSU00301500iZN6..G201608-202104

53395ESEAL, HOOD TO FRONT END PANEL

mainSU00301534iZN6..G201608-202104

81481ECOVER, FOG LAMP, RH

mainSU00306842iZN6..G201608-202104

81482CCOVER, FOG LAMP, LH

mainSU00306843iZN6..H201608-202104

SU00300063

mainSU003-00063

SU00301514

mainSU003-01514

SU00301535

mainSU003-01535

SU00302786

mainSU003-02786

SU00302793

mainSU003-02793

SU00302799

mainSU003-02799

SU00302940

mainSU003-02940

SU00302985

mainSU003-02985

SU00304133

mainSU003-04133

SU00305721

mainSU003-05721

36 parts on this diagram · 1 diagram in section
