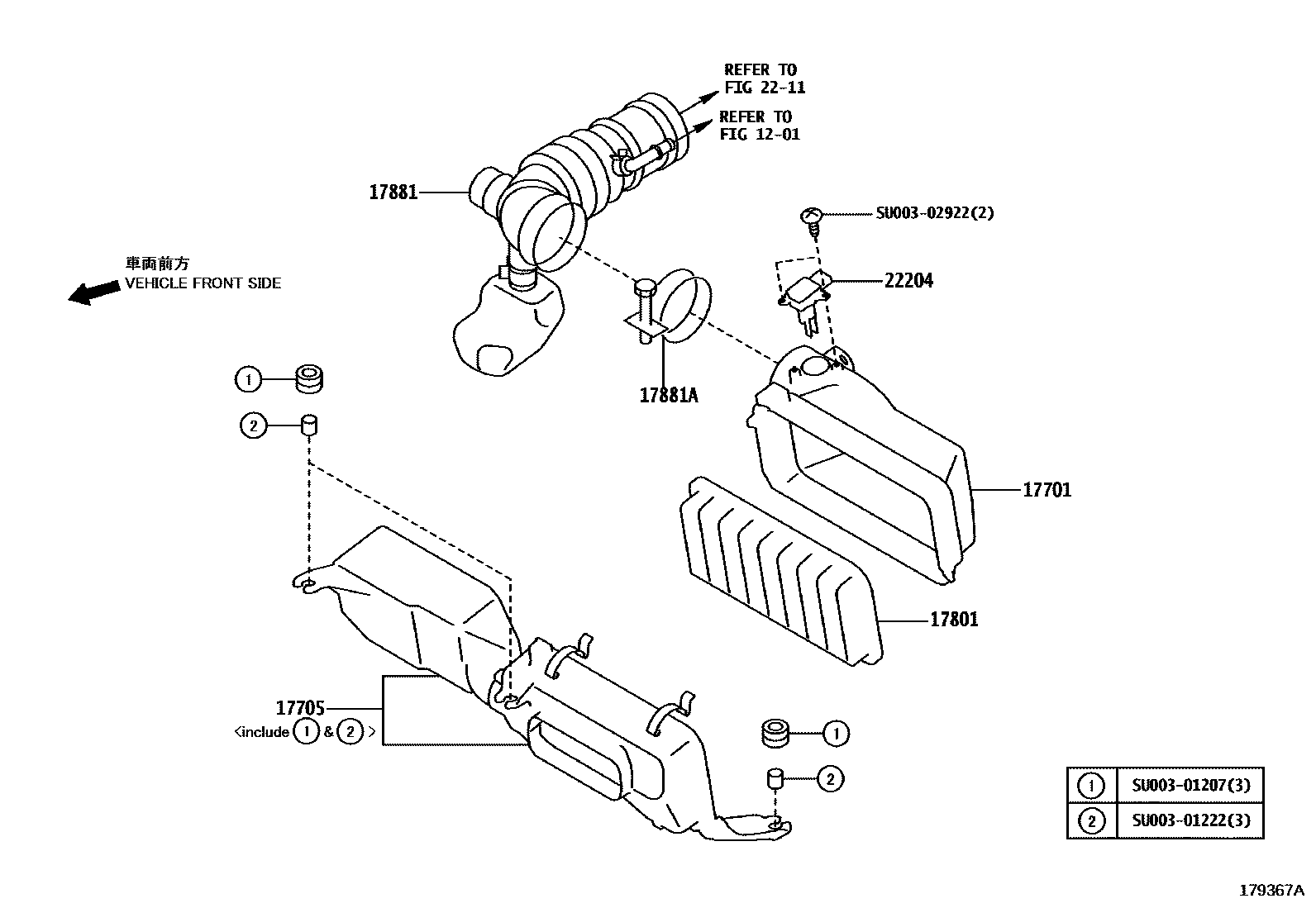

AIR CLEANER
1201VENTILATION HOSE
17701CASE SUB-ASSY, AIR CLEANER
mainSU00301214iFA20..ZN6..6FC..G;FA20..ZN6..LHD..6F..G; FA20..ZN6..RHD..6F..(HI,SPE)..G; FA20..ZN6..RHD..6F..G201804-201904
DESTINATION CODE=EK; DESTINATION CODE=EN; DESTINATION CODE=ER; DESTINATION CODE=K2; DESTINATION CODE=K8; DESTINATION CODE=KC; DESTINATION CODE=KV; DESTINATION CODE=KY
DESTINATION CODE=KA
17705CAP SUB-ASSY, AIR CLEANER
mainSU00301215iFA20..ZN6..6FC;FA20..ZN6..LHD..6F; FA20..ZN6..RHD..6F; FA20..ZN6..RHD..6F..(BASE,HI)201608-201709
DESTINATION CODE=EK; DESTINATION CODE=EN; DESTINATION CODE=ER; DESTINATION CODE=K8; DESTINATION CODE=KC; DESTINATION CODE=KE; DESTINATION CODE=KY
DESTINATION CODE=KA
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
mainSU00300319iFA20..ZN6..LHD;FA20..ZN6..RHD..6FC; FA20..ZN6..RHD..6F; FA20..ZN6..RHD..6F..(HI,SPE)201710-201803
DESTINATION CODE=EK; DESTINATION CODE=EN; DESTINATION CODE=ER; DESTINATION CODE=K2; DESTINATION CODE=K8; DESTINATION CODE=KC; DESTINATION CODE=KV; DESTINATION CODE=KY
DESTINATION CODE=KA
17881HOSE, AIR CLEANER, NO.1
mainSU00305882iFA20..ZN6..6FC;FA20..ZN6..LHD..6F; FA20..ZN6..RHD..6F; FA20..ZN6..RHD..6F..(BASE,HI)201608-201709
DESTINATION CODE=EK; DESTINATION CODE=EN; DESTINATION CODE=ER; DESTINATION CODE=K8; DESTINATION CODE=KC; DESTINATION CODE=KE; DESTINATION CODE=KY
DESTINATION CODE=KA
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
2211FUEL INJECTION SYSTEM
22204METER SUB-ASSY, INTAKE AIR FLOW
SU00301207
mainSU003-01207
SU00301222
mainSU003-01222
SU00302922
mainSU003-02922
11 parts on this diagram · 2 diagrams in section
