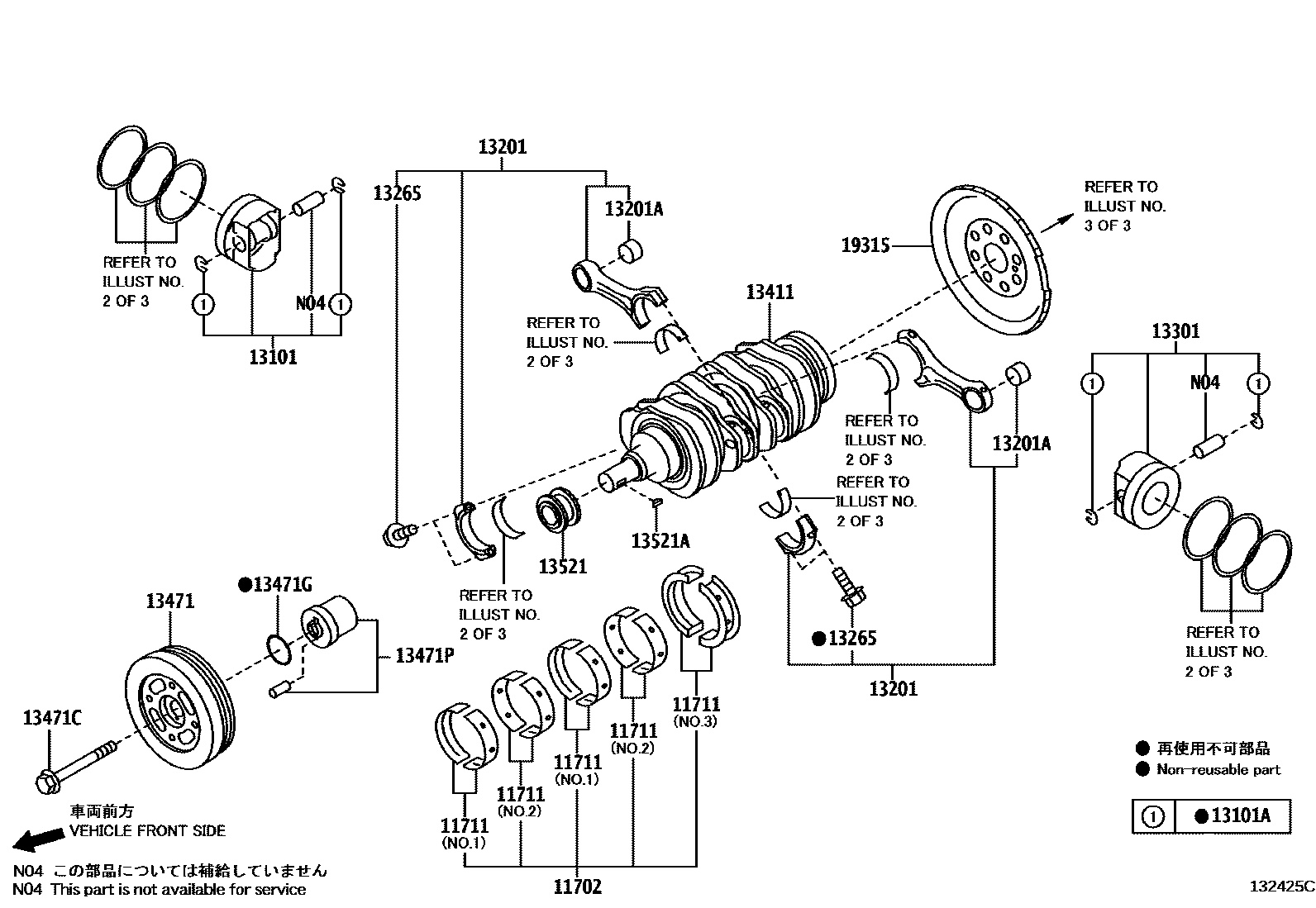

CRANKSHAFT & PISTON
11702BEARING SET, CRANKSHAFT
STD
U/S 0.03
U/S 0.05
U/S 0.25
11711BEARING, CRANKSHAFT
NO.2,STD
NO.2,U/S 0.03
NO.2,U/S 0.05
NO.2,U/S 0.25
NO.1,STD
NO.1,U/S 0.03
NO.1,U/S 0.05
NO.1,U/S 0.25
NO.3,STD
NO.3,U/S 0.03
NO.3,U/S 0.05
NO.3,U/S 0.25
13101PISTON SUB-ASSY, W/PIN
STD GRADE A,REFER REPAIR MANUAL
STD GRADE B,REFER REPAIR MANUAL
O/S 0.25
O/S 0.50
STD GRADE A,DESTINATION CODE=KA,REFER REPAIR MANUAL
STD GRADE B,DESTINATION CODE=KA,REFER REPAIR MANUAL
O/S 0.25,DESTINATION CODE=KA
O/S 0.50,DESTINATION CODE=KA
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13265BOLT, CONNECTING ROD
13301PISTON SUB-ASSY, W/PIN, LH
STD GRADE A,REFER REPAIR MANUAL
STD GRADE B,REFER REPAIR MANUAL
O/S 0.25
O/S 0.50
STD GRADE A,DESTINATION CODE=KA,REFER REPAIR MANUAL
STD GRADE B,DESTINATION CODE=KA,REFER REPAIR MANUAL
O/S 0.25,DESTINATION CODE=KA
O/S 0.50,DESTINATION CODE=KA
13411CRANKSHAFT
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13471GRING, O(FOR CRANKSHAFT PULLEY)
13471PSPACER(FOR CRANKSHAFT PULLEY)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
19315PLATE, CRANK ANGLE SENSOR, NO.1
