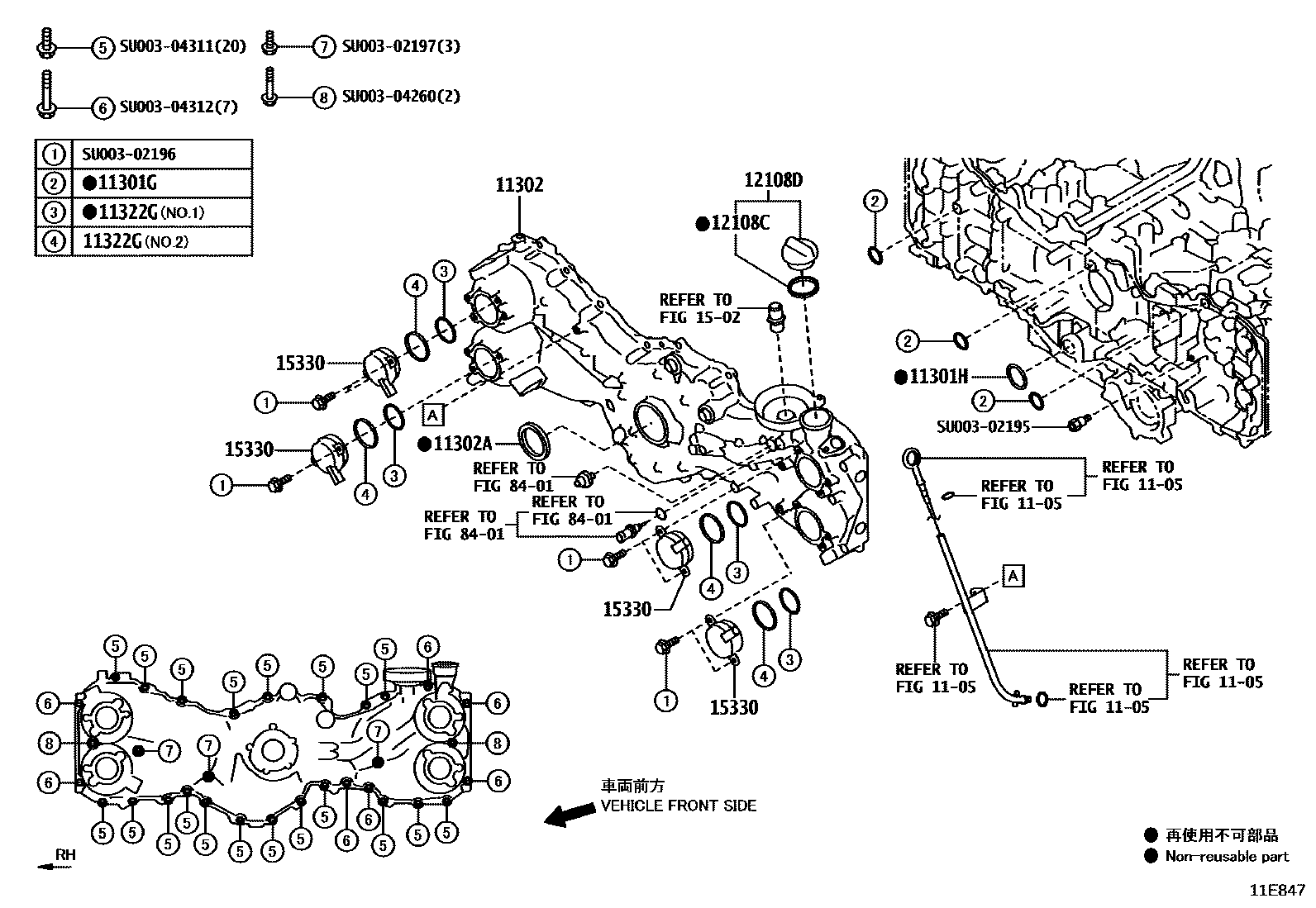

TIMING GEAR COVER & REAR END PLATE

1105CYLINDER BLOCK

→ Go to FIG 11-05

11301GRING, O(FOR TIMING GEAR CASE, UPPER)

mainSU00302183×3iFA20..ZN6201710-201803

11301HRING, O(FOR TIMING GEAR CASE, LOWER)

mainSU00302186iFA20..ZN6201608-201709

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

mainSU00304572iFA20..ZN6201608-201701

mainSU00307504iFA20..ZN6201701-201709

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

mainSU00302180iFA20..ZN6201608-201709

11322GRING, O(FOR TIMING GEAR COVER)

mainSU00300332×4iFA20..ZN6201710-201803

NO.2

mainSU00302191×4iFA20..ZN6201608-201709

NO.1

12108CGASKET

mainSU00302160iFA20..ZN6201608-201709

12108DCAP ASSY, OIL FILLER

mainSU00304083iFA20..ZN6201608-201709

1502OIL FILTER

→ Go to FIG 15-02

15330VALVE ASSY, CAM TIMING OIL CONTROL

mainSU00306052×4iFA20..ZN6201608-201702

mainSU00307584×4iFA20..ZN6201702-201709

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

SU00302195

mainSU003-02195

SU00302196

mainSU003-02196

SU00302197

mainSU003-02197

SU00304260

mainSU003-04260

SU00304311

mainSU003-04311

SU00304312

mainSU003-04312

17 parts on this diagram · 1 diagram in section
