REAR COMBINATION LAMP

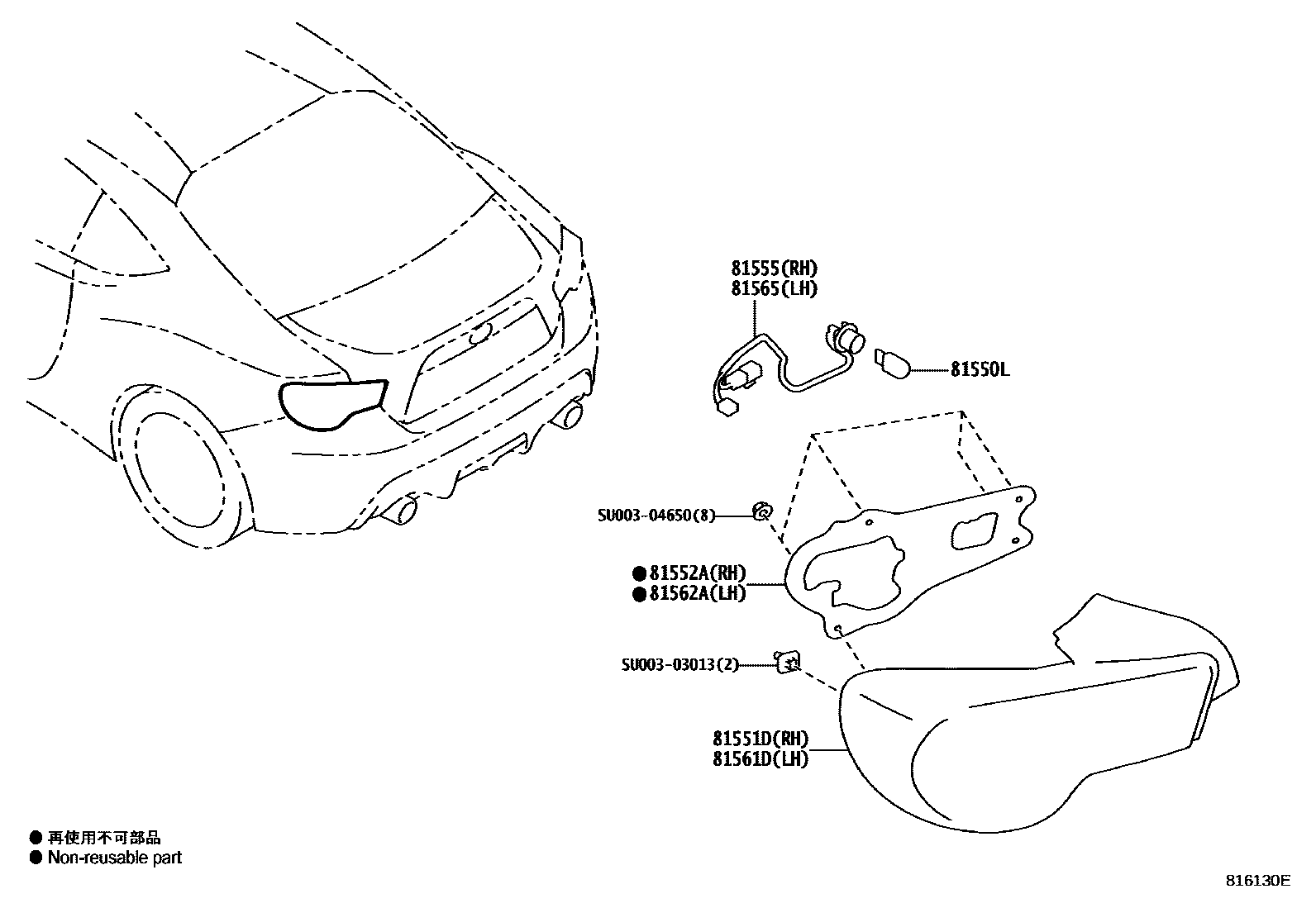

Parts diagram

81550LBULB, REAR TURN SIGNAL LAMP

mainSU00302568×2i201204-201308

12V 21W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

mainSU00302530i201204-201308

mainSU00305115i201308-201404

mainSU00305808i201405-201503

81552AGASKET, REAR COMBINATION LAMP, RH

mainSU00302586i201204-201301

mainSU00304708i201302-201308

mainSU00305121i201308-201404

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

mainSU00302573i201204-201308

mainSU00305119i201308-201404

81561DLENS & BODY, REAR COMBINATION LAMP, LH

mainSU00302531i201204-201308

mainSU00305116i201308-201404

mainSU00305809i201405-201503

81562AGASKET, REAR COMBINATION LAMP, LH

mainSU00304315i201204-201301

mainSU00304709i201302-201308

mainSU00305122i201308-201404

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

mainSU00302573i201204-201308

mainSU00305119i201308-201404

SU00303013

mainSU003-03013

SU00304650

mainSU003-04650

9 parts on this diagram · 1 diagram in section
