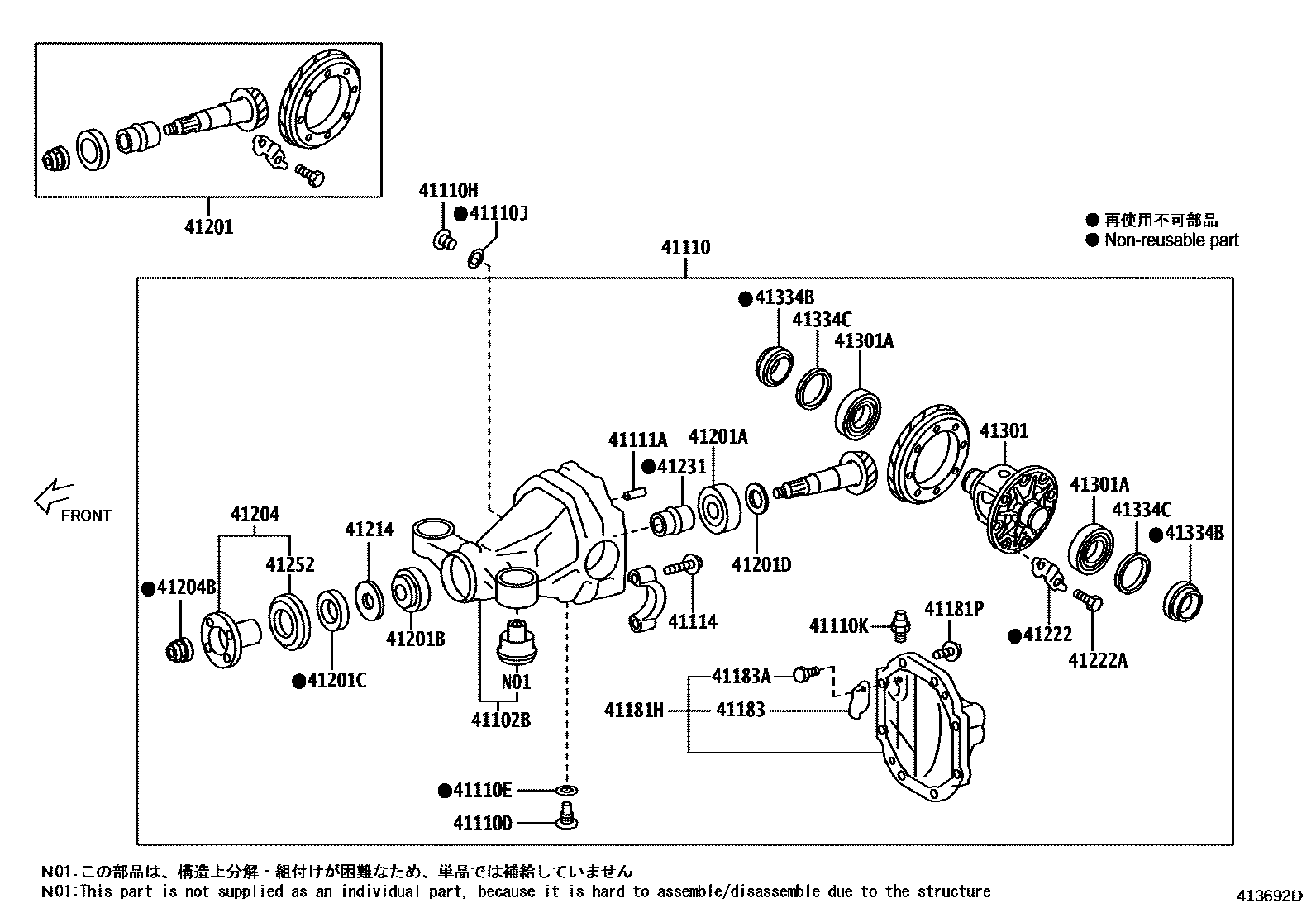

REAR AXLE HOUSING & DIFFERENTIAL

41102BCARRIER SUB-ASSY, DIFFERENTIAL W/MOUNT

main41102-30030i201504-201607

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-18020i201204-201210

*FGR=41:10=4.100

main41110-18021i201307-201404

*FGR=41:10=4.100; *FGR=41:10=4.100,DESTINATION CODE=KA

main41110-30A02i201204-201210

*FGR=41:10=4.100

main41110-30A03i201307-201404

*FGR=41:10=4.100; *FGR=41:10=4.100,DESTINATION CODE=EK; *FGR=41:10=4.100,DESTINATION CODE=EN; *FGR=41:10=4.100,DESTINATION CODE=ER; *FGR=41:10=4.100,DESTINATION CODE=K2; *FGR=41:10=4.100,DESTINATION CODE=K8; *FGR=41:10=4.100,DESTINATION CODE=KC; *FGR=41:10=4.100,DESTINATION CODE=KE

main41110-53203i201204-201210

*FGR=41:11=3.727

main41110-53204i201307-201404

*FGR=41:11=3.727

41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)

main90341-18035i201405-201503

41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)

main12157-10010i201405-201503

41110HPLUG (FOR REAR DIFFERENTIAL FILLER)

mainSU00300304i201405-201503

41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)

mainSU00300122i201405-201503

41110KPLUG, BREATHER (FOR REAR DIFFERENTIAL)

main90930-03077i201405-201503

41111APIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER)

main90250-08120×2i201204-201308

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12164×4i201204-201308

41181HCOVER, REAR DIFFERENTIAL CARRIER

main41108-53020i201204-201210

main41108-53021i201405-201503

41181PBOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING)

main90105-10417×8i201405-201503

41183DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL

main41183-53020i201504-201607

41183ABOLT (FOR REAR DIFFERENTIAL BREATHER PLUG OIL DEFLECTOR)

main91611-B0614i201204-201308

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-19605i201204-201308

*FGR=41:10=4.100

main41201-19606i201309-201404

*FGR=41:10=4.100

main41201-80050i201204-201308

*FGR=41:11=3.727

main41201-80781i201309-201404

*FGR=41:11=3.727

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35133i201204-201210

main90366-35170i201504-201607

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30093i201204-201210

main90366-30108i201504-201607

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38070i201504-201607

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35497i201307-201404

OD=47,T=1.70; OD=47,T=1.70,DESTINATION CODE=EK; OD=47,T=1.70,DESTINATION CODE=EN; OD=47,T=1.70,DESTINATION CODE=ER; OD=47,T=1.70,DESTINATION CODE=K2; OD=47,T=1.70,DESTINATION CODE=K8; OD=47,T=1.70,DESTINATION CODE=KA; OD=47,T=1.70,DESTINATION CODE=KC; OD=47,T=1.70,DESTINATION CODE=KE

main90201-35498i201405-201503

OD=47,T=1.73; OD=47,T=1.73,DESTINATION CODE=EK; OD=47,T=1.73,DESTINATION CODE=EN; OD=47,T=1.73,DESTINATION CODE=ER; OD=47,T=1.73,DESTINATION CODE=K2; OD=47,T=1.73,DESTINATION CODE=K8; OD=47,T=1.73,DESTINATION CODE=KA; OD=47,T=1.73,DESTINATION CODE=KC; OD=47,T=1.73,DESTINATION CODE=KE; OD=47,T=1.73,DESTINATION CODE=KY

main90201-35499i201504-201607

OD=47,T=1.76; OD=47,T=1.76,DESTINATION CODE=EK; OD=47,T=1.76,DESTINATION CODE=EN; OD=47,T=1.76,DESTINATION CODE=ER; OD=47,T=1.76,DESTINATION CODE=K2; OD=47,T=1.76,DESTINATION CODE=K8; OD=47,T=1.76,DESTINATION CODE=KA; OD=47,T=1.76,DESTINATION CODE=KC; OD=47,T=1.76,DESTINATION CODE=KE; OD=47,T=1.76,DESTINATION CODE=KY

main90201-35500i201307-201404

OD=47,T=1.79; OD=47,T=1.79,DESTINATION CODE=EK; OD=47,T=1.79,DESTINATION CODE=EN; OD=47,T=1.79,DESTINATION CODE=ER; OD=47,T=1.79,DESTINATION CODE=K2; OD=47,T=1.79,DESTINATION CODE=K8; OD=47,T=1.79,DESTINATION CODE=KA; OD=47,T=1.79,DESTINATION CODE=KC; OD=47,T=1.79,DESTINATION CODE=KE

main90201-35501i201204-201308

OD=47,T=1.82

main90201-35502i201405-201503

OD=47,T=1.85; OD=47,T=1.85,DESTINATION CODE=EK; OD=47,T=1.85,DESTINATION CODE=EN; OD=47,T=1.85,DESTINATION CODE=ER; OD=47,T=1.85,DESTINATION CODE=K2; OD=47,T=1.85,DESTINATION CODE=K8; OD=47,T=1.85,DESTINATION CODE=KA; OD=47,T=1.85,DESTINATION CODE=KC; OD=47,T=1.85,DESTINATION CODE=KE; OD=47,T=1.85,DESTINATION CODE=KY

main90201-35503i201307-201404

OD=47,T=1.88; OD=47,T=1.88,DESTINATION CODE=EK; OD=47,T=1.88,DESTINATION CODE=EN; OD=47,T=1.88,DESTINATION CODE=ER; OD=47,T=1.88,DESTINATION CODE=K2; OD=47,T=1.88,DESTINATION CODE=K8; OD=47,T=1.88,DESTINATION CODE=KA; OD=47,T=1.88,DESTINATION CODE=KC; OD=47,T=1.88,DESTINATION CODE=KE

main90201-35504i201307-201404

OD=47,T=1.91; OD=47,T=1.91,DESTINATION CODE=EK; OD=47,T=1.91,DESTINATION CODE=EN; OD=47,T=1.91,DESTINATION CODE=ER; OD=47,T=1.91,DESTINATION CODE=K2; OD=47,T=1.91,DESTINATION CODE=K8; OD=47,T=1.91,DESTINATION CODE=KA; OD=47,T=1.91,DESTINATION CODE=KC; OD=47,T=1.91,DESTINATION CODE=KE

main90201-35505i201504-201607

OD=47,T=1.94; OD=47,T=1.94,DESTINATION CODE=EK; OD=47,T=1.94,DESTINATION CODE=EN; OD=47,T=1.94,DESTINATION CODE=ER; OD=47,T=1.94,DESTINATION CODE=K2; OD=47,T=1.94,DESTINATION CODE=K8; OD=47,T=1.94,DESTINATION CODE=KA; OD=47,T=1.94,DESTINATION CODE=KC; OD=47,T=1.94,DESTINATION CODE=KE; OD=47,T=1.94,DESTINATION CODE=KY

main90201-35506i201307-201404

OD=47,T=1.97; OD=47,T=1.97,DESTINATION CODE=EK; OD=47,T=1.97,DESTINATION CODE=EN; OD=47,T=1.97,DESTINATION CODE=ER; OD=47,T=1.97,DESTINATION CODE=K2; OD=47,T=1.97,DESTINATION CODE=K8; OD=47,T=1.97,DESTINATION CODE=KA; OD=47,T=1.97,DESTINATION CODE=KC; OD=47,T=1.97,DESTINATION CODE=KE

main90201-35507i201504-201607

OD=47,T=2.00; OD=47,T=2.00,DESTINATION CODE=EK; OD=47,T=2.00,DESTINATION CODE=EN; OD=47,T=2.00,DESTINATION CODE=ER; OD=47,T=2.00,DESTINATION CODE=K2; OD=47,T=2.00,DESTINATION CODE=K8; OD=47,T=2.00,DESTINATION CODE=KA; OD=47,T=2.00,DESTINATION CODE=KC; OD=47,T=2.00,DESTINATION CODE=KE; OD=47,T=2.00,DESTINATION CODE=KY

main90201-35508i201204-201308

OD=47,T=2.03

main90201-35509i201204-201308

OD=47,T=2.06

main90201-35510i201204-201308

OD=47,T=2.09

main90201-35511i201504-201607

OD=47,T=2.12; OD=47,T=2.12,DESTINATION CODE=EK; OD=47,T=2.12,DESTINATION CODE=EN; OD=47,T=2.12,DESTINATION CODE=ER; OD=47,T=2.12,DESTINATION CODE=K2; OD=47,T=2.12,DESTINATION CODE=K8; OD=47,T=2.12,DESTINATION CODE=KA; OD=47,T=2.12,DESTINATION CODE=KC; OD=47,T=2.12,DESTINATION CODE=KE; OD=47,T=2.12,DESTINATION CODE=KY

main90201-35512i201504-201607

OD=47,T=2.15; OD=47,T=2.15,DESTINATION CODE=EK; OD=47,T=2.15,DESTINATION CODE=EN; OD=47,T=2.15,DESTINATION CODE=ER; OD=47,T=2.15,DESTINATION CODE=K2; OD=47,T=2.15,DESTINATION CODE=K8; OD=47,T=2.15,DESTINATION CODE=KA; OD=47,T=2.15,DESTINATION CODE=KC; OD=47,T=2.15,DESTINATION CODE=KE; OD=47,T=2.15,DESTINATION CODE=KY

main90201-35513i201307-201404

OD=47,T=2.18; OD=47,T=2.18,DESTINATION CODE=EK; OD=47,T=2.18,DESTINATION CODE=EN; OD=47,T=2.18,DESTINATION CODE=ER; OD=47,T=2.18,DESTINATION CODE=K2; OD=47,T=2.18,DESTINATION CODE=K8; OD=47,T=2.18,DESTINATION CODE=KA; OD=47,T=2.18,DESTINATION CODE=KC; OD=47,T=2.18,DESTINATION CODE=KE

main90201-35514i201307-201404

OD=47,T=2.21; OD=47,T=2.21,DESTINATION CODE=EK; OD=47,T=2.21,DESTINATION CODE=EN; OD=47,T=2.21,DESTINATION CODE=ER; OD=47,T=2.21,DESTINATION CODE=K2; OD=47,T=2.21,DESTINATION CODE=K8; OD=47,T=2.21,DESTINATION CODE=KA; OD=47,T=2.21,DESTINATION CODE=KC; OD=47,T=2.21,DESTINATION CODE=KE

main90201-35515i201504-201607

OD=47,T=2.24,MARK 01; OD=47,T=2.24,MARK 01,DESTINATION CODE=EK; OD=47,T=2.24,MARK 01,DESTINATION CODE=EN; OD=47,T=2.24,MARK 01,DESTINATION CODE=ER; OD=47,T=2.24,MARK 01,DESTINATION CODE=K2; OD=47,T=2.24,MARK 01,DESTINATION CODE=K8; OD=47,T=2.24,MARK 01,DESTINATION CODE=KA; OD=47,T=2.24,MARK 01,DESTINATION CODE=KC; OD=47,T=2.24,MARK 01,DESTINATION CODE=KE; OD=47,T=2.24,MARK 01,DESTINATION CODE=KY

main90201-35516i201405-201503

OD=47,T=2.27,MARK 02; OD=47,T=2.27,MARK 02,DESTINATION CODE=EK; OD=47,T=2.27,MARK 02,DESTINATION CODE=EN; OD=47,T=2.27,MARK 02,DESTINATION CODE=ER; OD=47,T=2.27,MARK 02,DESTINATION CODE=K2; OD=47,T=2.27,MARK 02,DESTINATION CODE=K8; OD=47,T=2.27,MARK 02,DESTINATION CODE=KA; OD=47,T=2.27,MARK 02,DESTINATION CODE=KC; OD=47,T=2.27,MARK 02,DESTINATION CODE=KE; OD=47,T=2.27,MARK 02,DESTINATION CODE=KY

main90201-35517i201405-201503

OD=47,T=2.30,MARK 03; OD=47,T=2.30,MARK 03,DESTINATION CODE=EK; OD=47,T=2.30,MARK 03,DESTINATION CODE=EN; OD=47,T=2.30,MARK 03,DESTINATION CODE=ER; OD=47,T=2.30,MARK 03,DESTINATION CODE=K2; OD=47,T=2.30,MARK 03,DESTINATION CODE=K8; OD=47,T=2.30,MARK 03,DESTINATION CODE=KA; OD=47,T=2.30,MARK 03,DESTINATION CODE=KC; OD=47,T=2.30,MARK 03,DESTINATION CODE=KE; OD=47,T=2.30,MARK 03,DESTINATION CODE=KY

main90201-35518i201405-201503

OD=47,T=2.33,MARK 04; OD=47,T=2.33,MARK 04,DESTINATION CODE=EK; OD=47,T=2.33,MARK 04,DESTINATION CODE=EN; OD=47,T=2.33,MARK 04,DESTINATION CODE=ER; OD=47,T=2.33,MARK 04,DESTINATION CODE=K2; OD=47,T=2.33,MARK 04,DESTINATION CODE=K8; OD=47,T=2.33,MARK 04,DESTINATION CODE=KA; OD=47,T=2.33,MARK 04,DESTINATION CODE=KC; OD=47,T=2.33,MARK 04,DESTINATION CODE=KE; OD=47,T=2.33,MARK 04,DESTINATION CODE=KY

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-35041i201504-201607

41204BNUT (FOR REAR DRIVE PINION)

main90179-20018i201504-201607

OD=37

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26010i201307-201404

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-22010×5i201504-201607

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353×10i201405-201503

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-24010i201307-201404

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-35020i201204-201308

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-53020i201204-201308

main41301-53032i201405-201503

DESTINATION CODE=EK; DESTINATION CODE=EN; DESTINATION CODE=ER; DESTINATION CODE=K2; DESTINATION CODE=K8; DESTINATION CODE=KC; DESTINATION CODE=KE; DESTINATION CODE=KY

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50001×2i201405-201503

41334BSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90311-43009×2i201504-201607

41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90201-52001×2i201504-201607

T=2.58,MARK 01; T=2.58,MARK 01,DESTINATION CODE=EK; T=2.58,MARK 01,DESTINATION CODE=EN; T=2.58,MARK 01,DESTINATION CODE=ER; T=2.58,MARK 01,DESTINATION CODE=K2; T=2.58,MARK 01,DESTINATION CODE=K8; T=2.58,MARK 01,DESTINATION CODE=KA; T=2.58,MARK 01,DESTINATION CODE=KC; T=2.58,MARK 01,DESTINATION CODE=KE; T=2.58,MARK 01,DESTINATION CODE=KY

main90201-52003×2i201504-201607

T=2.64,MARK 03; T=2.64,MARK 03,DESTINATION CODE=EK; T=2.64,MARK 03,DESTINATION CODE=EN; T=2.64,MARK 03,DESTINATION CODE=ER; T=2.64,MARK 03,DESTINATION CODE=K2; T=2.64,MARK 03,DESTINATION CODE=K8; T=2.64,MARK 03,DESTINATION CODE=KA; T=2.64,MARK 03,DESTINATION CODE=KC; T=2.64,MARK 03,DESTINATION CODE=KE; T=2.64,MARK 03,DESTINATION CODE=KY

main90201-52005×2i201504-201607

T=2.70,MARK 05; T=2.70,MARK 05,DESTINATION CODE=EK; T=2.70,MARK 05,DESTINATION CODE=EN; T=2.70,MARK 05,DESTINATION CODE=ER; T=2.70,MARK 05,DESTINATION CODE=K2; T=2.70,MARK 05,DESTINATION CODE=K8; T=2.70,MARK 05,DESTINATION CODE=KA; T=2.70,MARK 05,DESTINATION CODE=KC; T=2.70,MARK 05,DESTINATION CODE=KE; T=2.70,MARK 05,DESTINATION CODE=KY

main90201-52007×2i201204-201308

T=2.76,MARK 07

main90201-52009×2i201405-201503

T=2.82,MARK 09; T=2.82,MARK 09,DESTINATION CODE=EK; T=2.82,MARK 09,DESTINATION CODE=EN; T=2.82,MARK 09,DESTINATION CODE=ER; T=2.82,MARK 09,DESTINATION CODE=K2; T=2.82,MARK 09,DESTINATION CODE=K8; T=2.82,MARK 09,DESTINATION CODE=KA; T=2.82,MARK 09,DESTINATION CODE=KC; T=2.82,MARK 09,DESTINATION CODE=KE; T=2.82,MARK 09,DESTINATION CODE=KY

main90201-52011×2i201405-201503

T=2.88,MARK 11; T=2.88,MARK 11,DESTINATION CODE=EK; T=2.88,MARK 11,DESTINATION CODE=EN; T=2.88,MARK 11,DESTINATION CODE=ER; T=2.88,MARK 11,DESTINATION CODE=K2; T=2.88,MARK 11,DESTINATION CODE=K8; T=2.88,MARK 11,DESTINATION CODE=KA; T=2.88,MARK 11,DESTINATION CODE=KC; T=2.88,MARK 11,DESTINATION CODE=KE; T=2.88,MARK 11,DESTINATION CODE=KY

main90201-52013×2i201405-201503

T=2.94,MARK 13; T=2.94,MARK 13,DESTINATION CODE=EK; T=2.94,MARK 13,DESTINATION CODE=EN; T=2.94,MARK 13,DESTINATION CODE=ER; T=2.94,MARK 13,DESTINATION CODE=K2; T=2.94,MARK 13,DESTINATION CODE=K8; T=2.94,MARK 13,DESTINATION CODE=KA; T=2.94,MARK 13,DESTINATION CODE=KC; T=2.94,MARK 13,DESTINATION CODE=KE; T=2.94,MARK 13,DESTINATION CODE=KY

main90201-52015×2i201307-201404

T=3.00,MARK 15; T=3.00,MARK 15,DESTINATION CODE=EK; T=3.00,MARK 15,DESTINATION CODE=EN; T=3.00,MARK 15,DESTINATION CODE=ER; T=3.00,MARK 15,DESTINATION CODE=K2; T=3.00,MARK 15,DESTINATION CODE=K8; T=3.00,MARK 15,DESTINATION CODE=KA; T=3.00,MARK 15,DESTINATION CODE=KC; T=3.00,MARK 15,DESTINATION CODE=KE

main90201-52017×2i201504-201607

T=3.06,MARK 17; T=3.06,MARK 17,DESTINATION CODE=EK; T=3.06,MARK 17,DESTINATION CODE=EN; T=3.06,MARK 17,DESTINATION CODE=ER; T=3.06,MARK 17,DESTINATION CODE=K2; T=3.06,MARK 17,DESTINATION CODE=K8; T=3.06,MARK 17,DESTINATION CODE=KA; T=3.06,MARK 17,DESTINATION CODE=KC; T=3.06,MARK 17,DESTINATION CODE=KE; T=3.06,MARK 17,DESTINATION CODE=KY

main90201-52019×2i201307-201404

T=3.12,MARK 19; T=3.12,MARK 19,DESTINATION CODE=EK; T=3.12,MARK 19,DESTINATION CODE=EN; T=3.12,MARK 19,DESTINATION CODE=ER; T=3.12,MARK 19,DESTINATION CODE=K2; T=3.12,MARK 19,DESTINATION CODE=K8; T=3.12,MARK 19,DESTINATION CODE=KA; T=3.12,MARK 19,DESTINATION CODE=KC; T=3.12,MARK 19,DESTINATION CODE=KE

main90201-52021×2i201405-201503

T=3.18,MARK 21; T=3.18,MARK 21,DESTINATION CODE=EK; T=3.18,MARK 21,DESTINATION CODE=EN; T=3.18,MARK 21,DESTINATION CODE=ER; T=3.18,MARK 21,DESTINATION CODE=K2; T=3.18,MARK 21,DESTINATION CODE=K8; T=3.18,MARK 21,DESTINATION CODE=KA; T=3.18,MARK 21,DESTINATION CODE=KC; T=3.18,MARK 21,DESTINATION CODE=KE; T=3.18,MARK 21,DESTINATION CODE=KY

main90201-52023×2i201405-201503

T=3.24,MARK 23; T=3.24,MARK 23,DESTINATION CODE=EK; T=3.24,MARK 23,DESTINATION CODE=EN; T=3.24,MARK 23,DESTINATION CODE=ER; T=3.24,MARK 23,DESTINATION CODE=K2; T=3.24,MARK 23,DESTINATION CODE=K8; T=3.24,MARK 23,DESTINATION CODE=KA; T=3.24,MARK 23,DESTINATION CODE=KC; T=3.24,MARK 23,DESTINATION CODE=KE; T=3.24,MARK 23,DESTINATION CODE=KY

main90201-52025×2i201405-201503

T=3.30,MARK 25; T=3.30,MARK 25,DESTINATION CODE=EK; T=3.30,MARK 25,DESTINATION CODE=EN; T=3.30,MARK 25,DESTINATION CODE=ER; T=3.30,MARK 25,DESTINATION CODE=K2; T=3.30,MARK 25,DESTINATION CODE=K8; T=3.30,MARK 25,DESTINATION CODE=KA; T=3.30,MARK 25,DESTINATION CODE=KC; T=3.30,MARK 25,DESTINATION CODE=KE; T=3.30,MARK 25,DESTINATION CODE=KY

main90201-52027×2i201307-201404

T=3.36,MARK 27; T=3.36,MARK 27,DESTINATION CODE=EK; T=3.36,MARK 27,DESTINATION CODE=EN; T=3.36,MARK 27,DESTINATION CODE=ER; T=3.36,MARK 27,DESTINATION CODE=K2; T=3.36,MARK 27,DESTINATION CODE=K8; T=3.36,MARK 27,DESTINATION CODE=KA; T=3.36,MARK 27,DESTINATION CODE=KC; T=3.36,MARK 27,DESTINATION CODE=KE

main90201-52029×2i201307-201404

T=3.42,MARK 29; T=3.42,MARK 29,DESTINATION CODE=EK; T=3.42,MARK 29,DESTINATION CODE=EN; T=3.42,MARK 29,DESTINATION CODE=ER; T=3.42,MARK 29,DESTINATION CODE=K2; T=3.42,MARK 29,DESTINATION CODE=K8; T=3.42,MARK 29,DESTINATION CODE=KA; T=3.42,MARK 29,DESTINATION CODE=KC; T=3.42,MARK 29,DESTINATION CODE=KE

main90201-52031×2i201405-201503

T=3.48,MARK 31; T=3.48,MARK 31,DESTINATION CODE=EK; T=3.48,MARK 31,DESTINATION CODE=EN; T=3.48,MARK 31,DESTINATION CODE=ER; T=3.48,MARK 31,DESTINATION CODE=K2; T=3.48,MARK 31,DESTINATION CODE=K8; T=3.48,MARK 31,DESTINATION CODE=KA; T=3.48,MARK 31,DESTINATION CODE=KC; T=3.48,MARK 31,DESTINATION CODE=KE; T=3.48,MARK 31,DESTINATION CODE=KY

main90564-46014×2i201204-201308

T=2.60,MARK 32

main90564-46015×2i201405-201503

T=2.62,MARK 33; T=2.62,MARK 33,DESTINATION CODE=EK; T=2.62,MARK 33,DESTINATION CODE=EN; T=2.62,MARK 33,DESTINATION CODE=ER; T=2.62,MARK 33,DESTINATION CODE=K2; T=2.62,MARK 33,DESTINATION CODE=K8; T=2.62,MARK 33,DESTINATION CODE=KA; T=2.62,MARK 33,DESTINATION CODE=KC; T=2.62,MARK 33,DESTINATION CODE=KE; T=2.62,MARK 33,DESTINATION CODE=KY

main90564-46016×2i201504-201607

T=2.66,MARK 34; T=2.66,MARK 34,DESTINATION CODE=EK; T=2.66,MARK 34,DESTINATION CODE=EN; T=2.66,MARK 34,DESTINATION CODE=ER; T=2.66,MARK 34,DESTINATION CODE=K2; T=2.66,MARK 34,DESTINATION CODE=K8; T=2.66,MARK 34,DESTINATION CODE=KA; T=2.66,MARK 34,DESTINATION CODE=KC; T=2.66,MARK 34,DESTINATION CODE=KE; T=2.66,MARK 34,DESTINATION CODE=KY

main90564-46017×2i201405-201503

T=2.68,MARK 35; T=2.68,MARK 35,DESTINATION CODE=EK; T=2.68,MARK 35,DESTINATION CODE=EN; T=2.68,MARK 35,DESTINATION CODE=ER; T=2.68,MARK 35,DESTINATION CODE=K2; T=2.68,MARK 35,DESTINATION CODE=K8; T=2.68,MARK 35,DESTINATION CODE=KA; T=2.68,MARK 35,DESTINATION CODE=KC; T=2.68,MARK 35,DESTINATION CODE=KE; T=2.68,MARK 35,DESTINATION CODE=KY

main90564-46018×2i201204-201308

T=2.72,MARK 36

main90564-46019×2i201504-201607

T=2.74,MARK 37; T=2.74,MARK 37,DESTINATION CODE=EK; T=2.74,MARK 37,DESTINATION CODE=EN; T=2.74,MARK 37,DESTINATION CODE=ER; T=2.74,MARK 37,DESTINATION CODE=K2; T=2.74,MARK 37,DESTINATION CODE=K8; T=2.74,MARK 37,DESTINATION CODE=KA; T=2.74,MARK 37,DESTINATION CODE=KC; T=2.74,MARK 37,DESTINATION CODE=KE; T=2.74,MARK 37,DESTINATION CODE=KY

main90564-46020×2i201307-201404

T=2.78,MARK 38; T=2.78,MARK 38,DESTINATION CODE=EK; T=2.78,MARK 38,DESTINATION CODE=EN; T=2.78,MARK 38,DESTINATION CODE=ER; T=2.78,MARK 38,DESTINATION CODE=K2; T=2.78,MARK 38,DESTINATION CODE=K8; T=2.78,MARK 38,DESTINATION CODE=KA; T=2.78,MARK 38,DESTINATION CODE=KC; T=2.78,MARK 38,DESTINATION CODE=KE

main90564-46021×2i201504-201607

T=2.80,MARK 39; T=2.80,MARK 39,DESTINATION CODE=EK; T=2.80,MARK 39,DESTINATION CODE=EN; T=2.80,MARK 39,DESTINATION CODE=ER; T=2.80,MARK 39,DESTINATION CODE=K2; T=2.80,MARK 39,DESTINATION CODE=K8; T=2.80,MARK 39,DESTINATION CODE=KA; T=2.80,MARK 39,DESTINATION CODE=KC; T=2.80,MARK 39,DESTINATION CODE=KE; T=2.80,MARK 39,DESTINATION CODE=KY

main90564-46022×2i201307-201404

T=2.84,MARK 40; T=2.84,MARK 40,DESTINATION CODE=EK; T=2.84,MARK 40,DESTINATION CODE=EN; T=2.84,MARK 40,DESTINATION CODE=ER; T=2.84,MARK 40,DESTINATION CODE=K2; T=2.84,MARK 40,DESTINATION CODE=K8; T=2.84,MARK 40,DESTINATION CODE=KA; T=2.84,MARK 40,DESTINATION CODE=KC; T=2.84,MARK 40,DESTINATION CODE=KE

main90564-46023×2i201504-201607

T=2.86,MARK 41; T=2.86,MARK 41,DESTINATION CODE=EK; T=2.86,MARK 41,DESTINATION CODE=EN; T=2.86,MARK 41,DESTINATION CODE=ER; T=2.86,MARK 41,DESTINATION CODE=K2; T=2.86,MARK 41,DESTINATION CODE=K8; T=2.86,MARK 41,DESTINATION CODE=KA; T=2.86,MARK 41,DESTINATION CODE=KC; T=2.86,MARK 41,DESTINATION CODE=KE; T=2.86,MARK 41,DESTINATION CODE=KY

main90564-46024×2i201405-201503

T=2.90,MARK 42; T=2.90,MARK 42,DESTINATION CODE=EK; T=2.90,MARK 42,DESTINATION CODE=EN; T=2.90,MARK 42,DESTINATION CODE=ER; T=2.90,MARK 42,DESTINATION CODE=K2; T=2.90,MARK 42,DESTINATION CODE=K8; T=2.90,MARK 42,DESTINATION CODE=KA; T=2.90,MARK 42,DESTINATION CODE=KC; T=2.90,MARK 42,DESTINATION CODE=KE; T=2.90,MARK 42,DESTINATION CODE=KY

main90564-46025×2i201504-201607

T=2.92,MARK 43; T=2.92,MARK 43,DESTINATION CODE=EK; T=2.92,MARK 43,DESTINATION CODE=EN; T=2.92,MARK 43,DESTINATION CODE=ER; T=2.92,MARK 43,DESTINATION CODE=K2; T=2.92,MARK 43,DESTINATION CODE=K8; T=2.92,MARK 43,DESTINATION CODE=KA; T=2.92,MARK 43,DESTINATION CODE=KC; T=2.92,MARK 43,DESTINATION CODE=KE; T=2.92,MARK 43,DESTINATION CODE=KY

main90564-46026×2i201307-201404

T=2.96,MARK 44; T=2.96,MARK 44,DESTINATION CODE=EK; T=2.96,MARK 44,DESTINATION CODE=EN; T=2.96,MARK 44,DESTINATION CODE=ER; T=2.96,MARK 44,DESTINATION CODE=K2; T=2.96,MARK 44,DESTINATION CODE=K8; T=2.96,MARK 44,DESTINATION CODE=KA; T=2.96,MARK 44,DESTINATION CODE=KC; T=2.96,MARK 44,DESTINATION CODE=KE

main90564-46027×2i201504-201607

T=2.98,MARK 45; T=2.98,MARK 45,DESTINATION CODE=EK; T=2.98,MARK 45,DESTINATION CODE=EN; T=2.98,MARK 45,DESTINATION CODE=ER; T=2.98,MARK 45,DESTINATION CODE=K2; T=2.98,MARK 45,DESTINATION CODE=K8; T=2.98,MARK 45,DESTINATION CODE=KA; T=2.98,MARK 45,DESTINATION CODE=KC; T=2.98,MARK 45,DESTINATION CODE=KE; T=2.98,MARK 45,DESTINATION CODE=KY

main90564-46028×2i201405-201503

T=3.02,MARK 46; T=3.02,MARK 46,DESTINATION CODE=EK; T=3.02,MARK 46,DESTINATION CODE=EN; T=3.02,MARK 46,DESTINATION CODE=ER; T=3.02,MARK 46,DESTINATION CODE=K2; T=3.02,MARK 46,DESTINATION CODE=K8; T=3.02,MARK 46,DESTINATION CODE=KA; T=3.02,MARK 46,DESTINATION CODE=KC; T=3.02,MARK 46,DESTINATION CODE=KE; T=3.02,MARK 46,DESTINATION CODE=KY

main90564-46029×2i201504-201607

T=3.04,MARK 47; T=3.04,MARK 47,DESTINATION CODE=EK; T=3.04,MARK 47,DESTINATION CODE=EN; T=3.04,MARK 47,DESTINATION CODE=ER; T=3.04,MARK 47,DESTINATION CODE=K2; T=3.04,MARK 47,DESTINATION CODE=K8; T=3.04,MARK 47,DESTINATION CODE=KA; T=3.04,MARK 47,DESTINATION CODE=KC; T=3.04,MARK 47,DESTINATION CODE=KE; T=3.04,MARK 47,DESTINATION CODE=KY

main90564-46030×2i201405-201503

T=3.08,MARK 48; T=3.08,MARK 48,DESTINATION CODE=EK; T=3.08,MARK 48,DESTINATION CODE=EN; T=3.08,MARK 48,DESTINATION CODE=ER; T=3.08,MARK 48,DESTINATION CODE=K2; T=3.08,MARK 48,DESTINATION CODE=K8; T=3.08,MARK 48,DESTINATION CODE=KA; T=3.08,MARK 48,DESTINATION CODE=KC; T=3.08,MARK 48,DESTINATION CODE=KE; T=3.08,MARK 48,DESTINATION CODE=KY

main90564-46031×2i201504-201607

T=3.10,MARK 49; T=3.10,MARK 49,DESTINATION CODE=EK; T=3.10,MARK 49,DESTINATION CODE=EN; T=3.10,MARK 49,DESTINATION CODE=ER; T=3.10,MARK 49,DESTINATION CODE=K2; T=3.10,MARK 49,DESTINATION CODE=K8; T=3.10,MARK 49,DESTINATION CODE=KA; T=3.10,MARK 49,DESTINATION CODE=KC; T=3.10,MARK 49,DESTINATION CODE=KE; T=3.10,MARK 49,DESTINATION CODE=KY

main90564-46032×2i201204-201308

T=3.14,MARK 50

main90564-46033×2i201504-201607

T=3.16,MARK 51; T=3.16,MARK 51,DESTINATION CODE=EK; T=3.16,MARK 51,DESTINATION CODE=EN; T=3.16,MARK 51,DESTINATION CODE=ER; T=3.16,MARK 51,DESTINATION CODE=K2; T=3.16,MARK 51,DESTINATION CODE=K8; T=3.16,MARK 51,DESTINATION CODE=KA; T=3.16,MARK 51,DESTINATION CODE=KC; T=3.16,MARK 51,DESTINATION CODE=KE; T=3.16,MARK 51,DESTINATION CODE=KY

main90564-46034×2i201307-201404

T=3.20,MARK 52; T=3.20,MARK 52,DESTINATION CODE=EK; T=3.20,MARK 52,DESTINATION CODE=EN; T=3.20,MARK 52,DESTINATION CODE=ER; T=3.20,MARK 52,DESTINATION CODE=K2; T=3.20,MARK 52,DESTINATION CODE=K8; T=3.20,MARK 52,DESTINATION CODE=KA; T=3.20,MARK 52,DESTINATION CODE=KC; T=3.20,MARK 52,DESTINATION CODE=KE

main90564-46035×2i201504-201607

T=3.22,MARK 53; T=3.22,MARK 53,DESTINATION CODE=EK; T=3.22,MARK 53,DESTINATION CODE=EN; T=3.22,MARK 53,DESTINATION CODE=ER; T=3.22,MARK 53,DESTINATION CODE=K2; T=3.22,MARK 53,DESTINATION CODE=K8; T=3.22,MARK 53,DESTINATION CODE=KA; T=3.22,MARK 53,DESTINATION CODE=KC; T=3.22,MARK 53,DESTINATION CODE=KE; T=3.22,MARK 53,DESTINATION CODE=KY

main90564-46036×2i201307-201404

T=3.26,MARK 54; T=3.26,MARK 54,DESTINATION CODE=EK; T=3.26,MARK 54,DESTINATION CODE=EN; T=3.26,MARK 54,DESTINATION CODE=ER; T=3.26,MARK 54,DESTINATION CODE=K2; T=3.26,MARK 54,DESTINATION CODE=K8; T=3.26,MARK 54,DESTINATION CODE=KA; T=3.26,MARK 54,DESTINATION CODE=KC; T=3.26,MARK 54,DESTINATION CODE=KE

main90564-46037×2i201504-201607

T=3.28,MARK 55; T=3.28,MARK 55,DESTINATION CODE=EK; T=3.28,MARK 55,DESTINATION CODE=EN; T=3.28,MARK 55,DESTINATION CODE=ER; T=3.28,MARK 55,DESTINATION CODE=K2; T=3.28,MARK 55,DESTINATION CODE=K8; T=3.28,MARK 55,DESTINATION CODE=KA; T=3.28,MARK 55,DESTINATION CODE=KC; T=3.28,MARK 55,DESTINATION CODE=KE; T=3.28,MARK 55,DESTINATION CODE=KY

main90564-46038×2i201204-201308

T=3.32,MARK 56

main90564-46039×2i201504-201607

T=3.34,MARK 57; T=3.34,MARK 57,DESTINATION CODE=EK; T=3.34,MARK 57,DESTINATION CODE=EN; T=3.34,MARK 57,DESTINATION CODE=ER; T=3.34,MARK 57,DESTINATION CODE=K2; T=3.34,MARK 57,DESTINATION CODE=K8; T=3.34,MARK 57,DESTINATION CODE=KA; T=3.34,MARK 57,DESTINATION CODE=KC; T=3.34,MARK 57,DESTINATION CODE=KE; T=3.34,MARK 57,DESTINATION CODE=KY

main90564-46040×2i201307-201404

T=3.38,MARK 58; T=3.38,MARK 58,DESTINATION CODE=EK; T=3.38,MARK 58,DESTINATION CODE=EN; T=3.38,MARK 58,DESTINATION CODE=ER; T=3.38,MARK 58,DESTINATION CODE=K2; T=3.38,MARK 58,DESTINATION CODE=K8; T=3.38,MARK 58,DESTINATION CODE=KA; T=3.38,MARK 58,DESTINATION CODE=KC; T=3.38,MARK 58,DESTINATION CODE=KE

main90564-46041×2i201504-201607

T=3.40,MARK 59; T=3.40,MARK 59,DESTINATION CODE=EK; T=3.40,MARK 59,DESTINATION CODE=EN; T=3.40,MARK 59,DESTINATION CODE=ER; T=3.40,MARK 59,DESTINATION CODE=K2; T=3.40,MARK 59,DESTINATION CODE=K8; T=3.40,MARK 59,DESTINATION CODE=KA; T=3.40,MARK 59,DESTINATION CODE=KC; T=3.40,MARK 59,DESTINATION CODE=KE; T=3.40,MARK 59,DESTINATION CODE=KY

main90564-46042×2i201405-201503

T=3.44,MARK 60; T=3.44,MARK 60,DESTINATION CODE=EK; T=3.44,MARK 60,DESTINATION CODE=EN; T=3.44,MARK 60,DESTINATION CODE=ER; T=3.44,MARK 60,DESTINATION CODE=K2; T=3.44,MARK 60,DESTINATION CODE=K8; T=3.44,MARK 60,DESTINATION CODE=KA; T=3.44,MARK 60,DESTINATION CODE=KC; T=3.44,MARK 60,DESTINATION CODE=KE; T=3.44,MARK 60,DESTINATION CODE=KY

main90564-46043×2i201504-201607

T=3.46,MARK 61; T=3.46,MARK 61,DESTINATION CODE=EK; T=3.46,MARK 61,DESTINATION CODE=EN; T=3.46,MARK 61,DESTINATION CODE=ER; T=3.46,MARK 61,DESTINATION CODE=K2; T=3.46,MARK 61,DESTINATION CODE=K8; T=3.46,MARK 61,DESTINATION CODE=KA; T=3.46,MARK 61,DESTINATION CODE=KC; T=3.46,MARK 61,DESTINATION CODE=KE; T=3.46,MARK 61,DESTINATION CODE=KY

29 parts on this diagram · 3 diagrams in section
