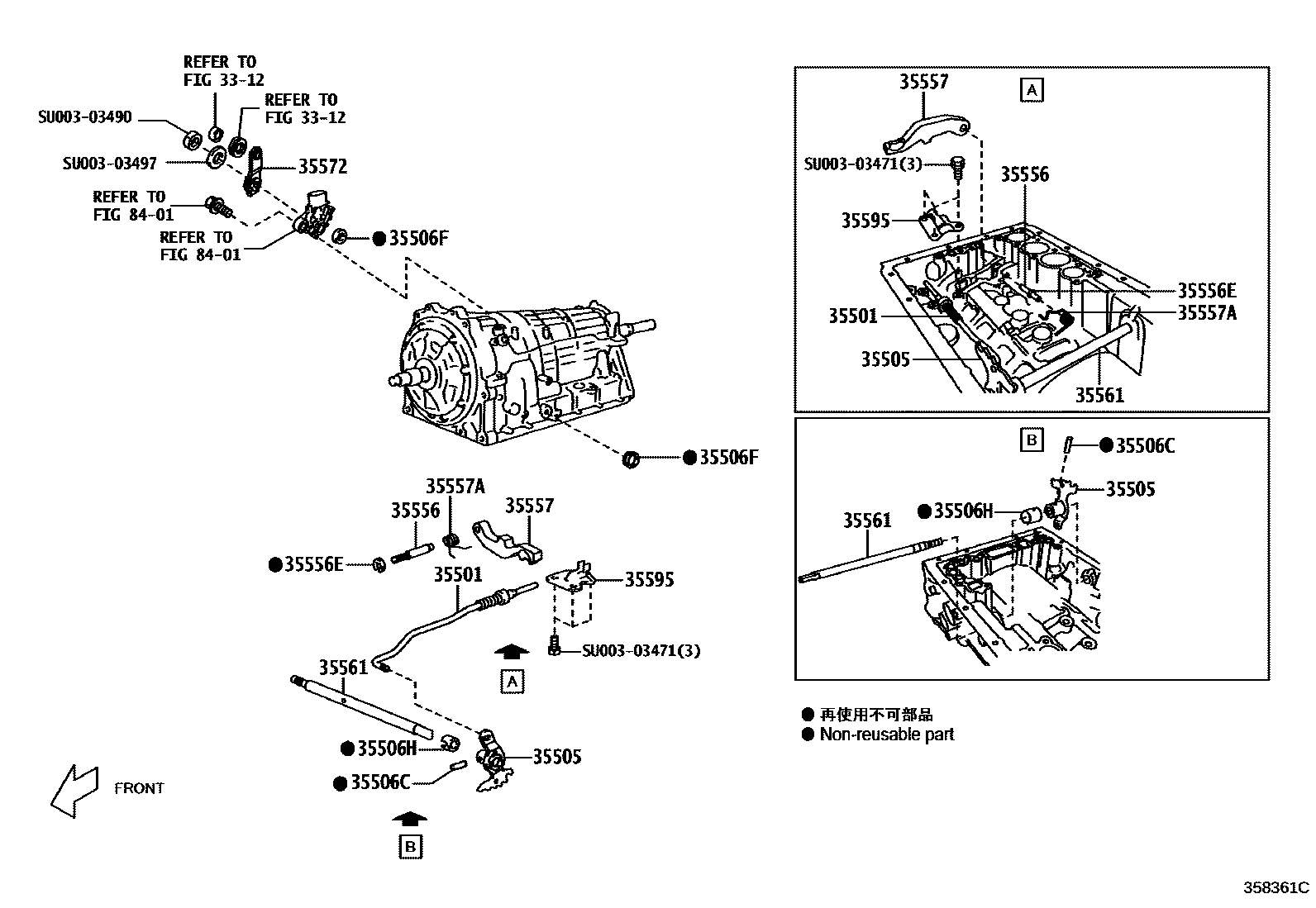

THROTTLE LINK & VALVE LEVER (ATM)

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

35501ROD SUB-ASSY, PARKING LOCK

mainSU00303688iZN6..6FC201204-201308

35505LEVER SUB-ASSY, MANUAL VALVE

mainSU00303689iZN6..6FC201204-201308

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

mainSU00303634iZN6..6FC201204-201308

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

mainSU00303628×2iZN6..6FC201204-201308

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

mainSU00303848iZN6..6FC201204-201308

35556SHAFT, PARKING LOCK PAWL

mainSU00303690iZN6..6FC201204-201308

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

mainSU00303529iZN6..6FC201204-201308

35557PAWL, PARKING LOCK

mainSU00303691iZN6..6FC201204-201308

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

mainSU00303846iZN6..6FC201204-201308

35561SHAFT, MANUAL VALVE LEVER

mainSU00303692iZN6..6FC201204-201308

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

mainSU00303693iZN6..6FC201204-201308

35595BRACKET, PARKING LOCK PAWL

mainSU00303694iZN6..6FC201204-201308

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

SU00303471

mainSU003-03471

SU00303490

mainSU003-03490

SU00303497

mainSU003-03497

17 parts on this diagram · 1 diagram in section
