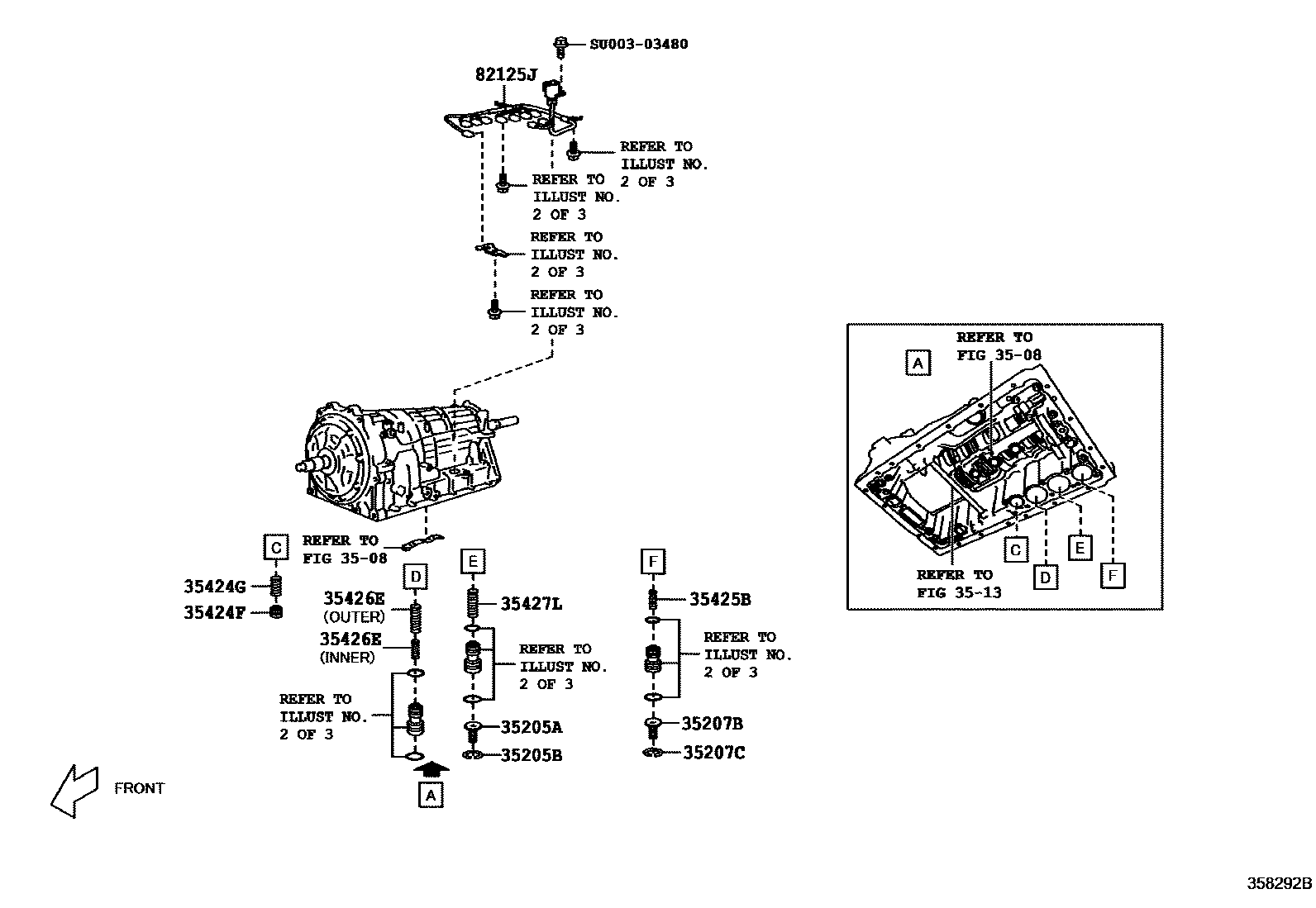

VALVE BODY & OIL STRAINER (ATM)

0001 1TX6A 0002 1TX6A 0003 1TX6A

3508CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

→ Go to FIG 35-08

3513THROTTLE LINK & VALVE LEVER (ATM)

→ Go to FIG 35-13

35205ASPRING SUB-ASSY, B-3 ACCUMULATOR

mainSU00303670iZN6..6FC201204-201308

35205BRING, HOLE SNAP (FOR B-3 ACCUMULATOR SPRING)

mainSU00303531iZN6..6FC201204-201308

35207BSPRING SUB-ASSY, C-2 ACCUMULATOR

mainSU00303671iZN6..6FC201204-201308

35207CRING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)

mainSU00303531iZN6..6FC201204-201308

35424FVALVE, C-1 ACCUMULATOR

mainSU00303681iZN6..6FC201204-201308

35424GSPRING, COMPRESSION (FOR C-1 ACCUMULATOR VALVE)

mainSU00303842iZN6..6FC201204-201308

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

mainSU00303841iZN6..6FC..B201307-201404

35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

mainSU00303843iZN6..6FC201204-201308

INNER

mainSU00303844iZN6..6FC201405-201503

OUTER

35427LSPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON)

mainSU00303845iZN6..6FC201405-201503

82125JWIRE, TRANSMISSION

mainSU00303836iZN6..6FC201204-201308

SU00303480

mainSU003-03480

13 parts on this diagram · 3 diagrams in section
