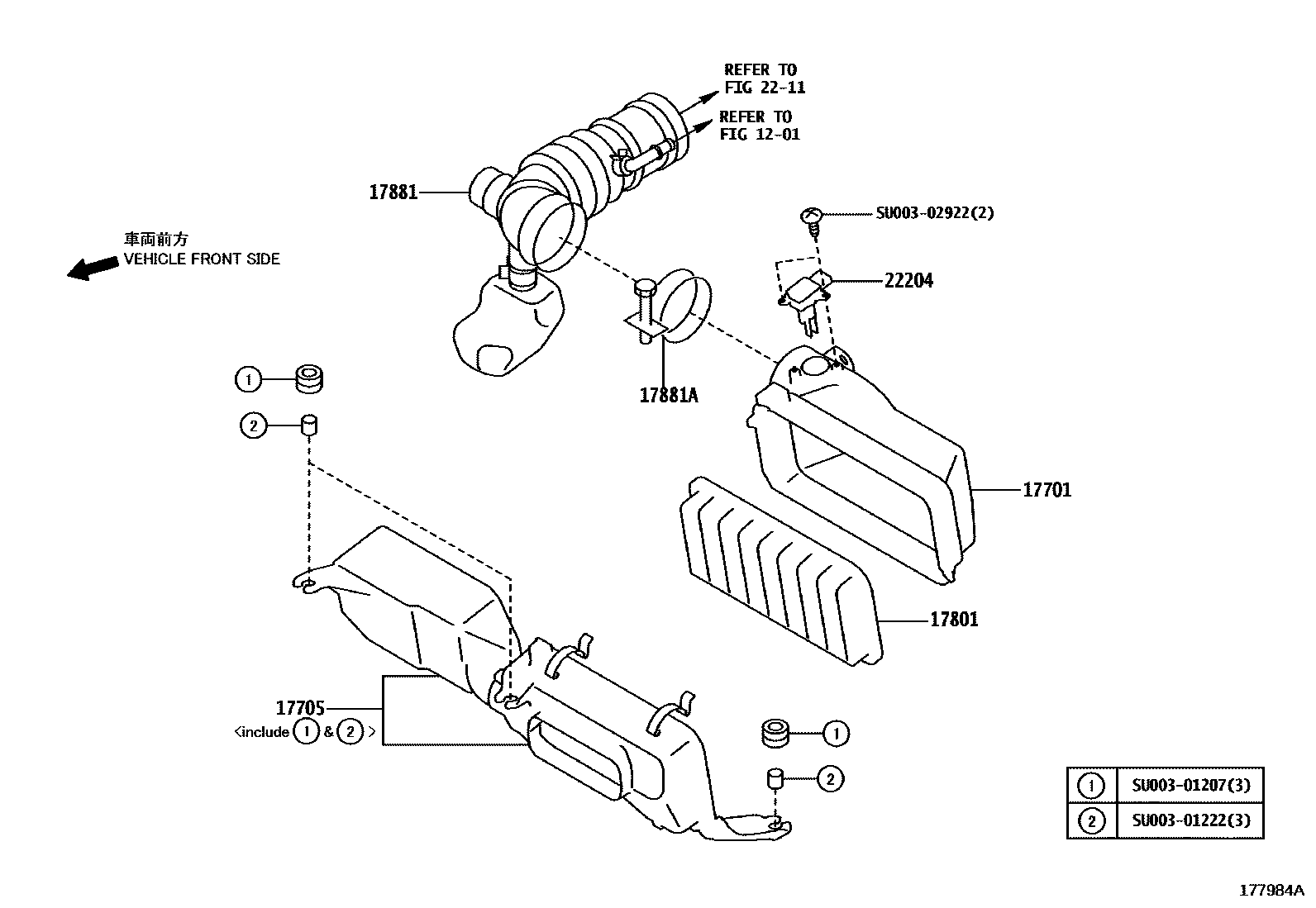

AIR CLEANER

0001 1 0002 1

1201VENTILATION HOSE

→ Go to FIG 12-01

17701CASE SUB-ASSY, AIR CLEANER

mainSU00301214iFA20..ZN6..B201307-201404

17705CAP SUB-ASSY, AIR CLEANER

mainSU00301215iFA20..ZN6..D201504-201607

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

mainSU00300319iFA20..ZN6..D201504-201607

17881HOSE, AIR CLEANER, NO.1

mainSU00304333iFA20..ZN6201405-201408

mainSU00305882iFA20..ZN6201409-201503

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

mainSU00301217iFA20..ZN6..D201504-201607

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

22204METER SUB-ASSY, INTAKE AIR FLOW

mainSU00300427iFA20..ZN6..D201504-201607

SU00301207

mainSU003-01207

SU00301222

mainSU003-01222

SU00302922

mainSU003-02922

11 parts on this diagram · 2 diagrams in section
