OIL FILTER

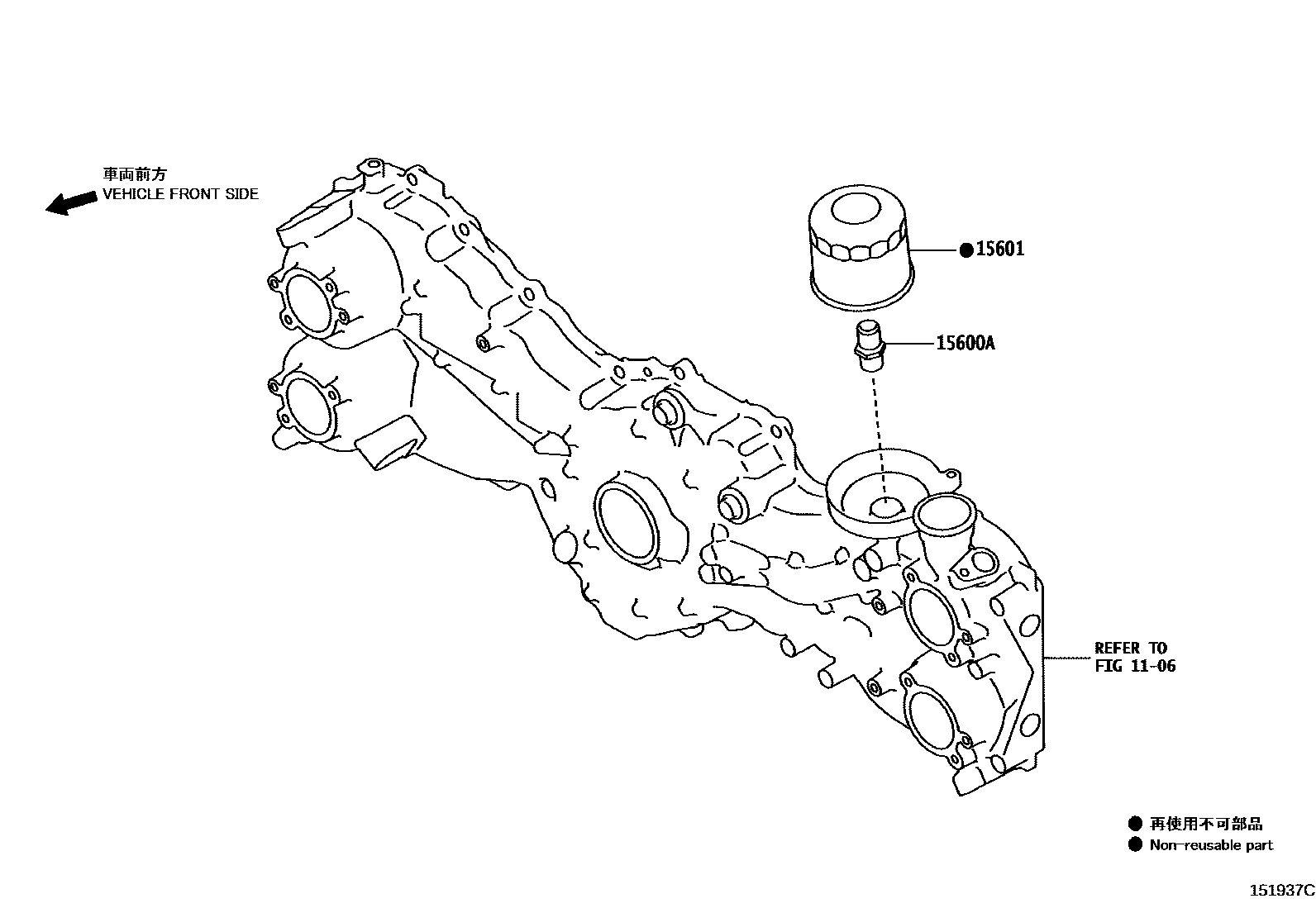

Parts diagram

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15600AUNION(FOR OIL FILTER)

mainSU00300302i201204-201308

mainSU00305813i201407-201503

15601FILTER SUB-ASSY, OIL

mainSU00300311i201204-201308

3 parts on this diagram · 1 diagram in section
