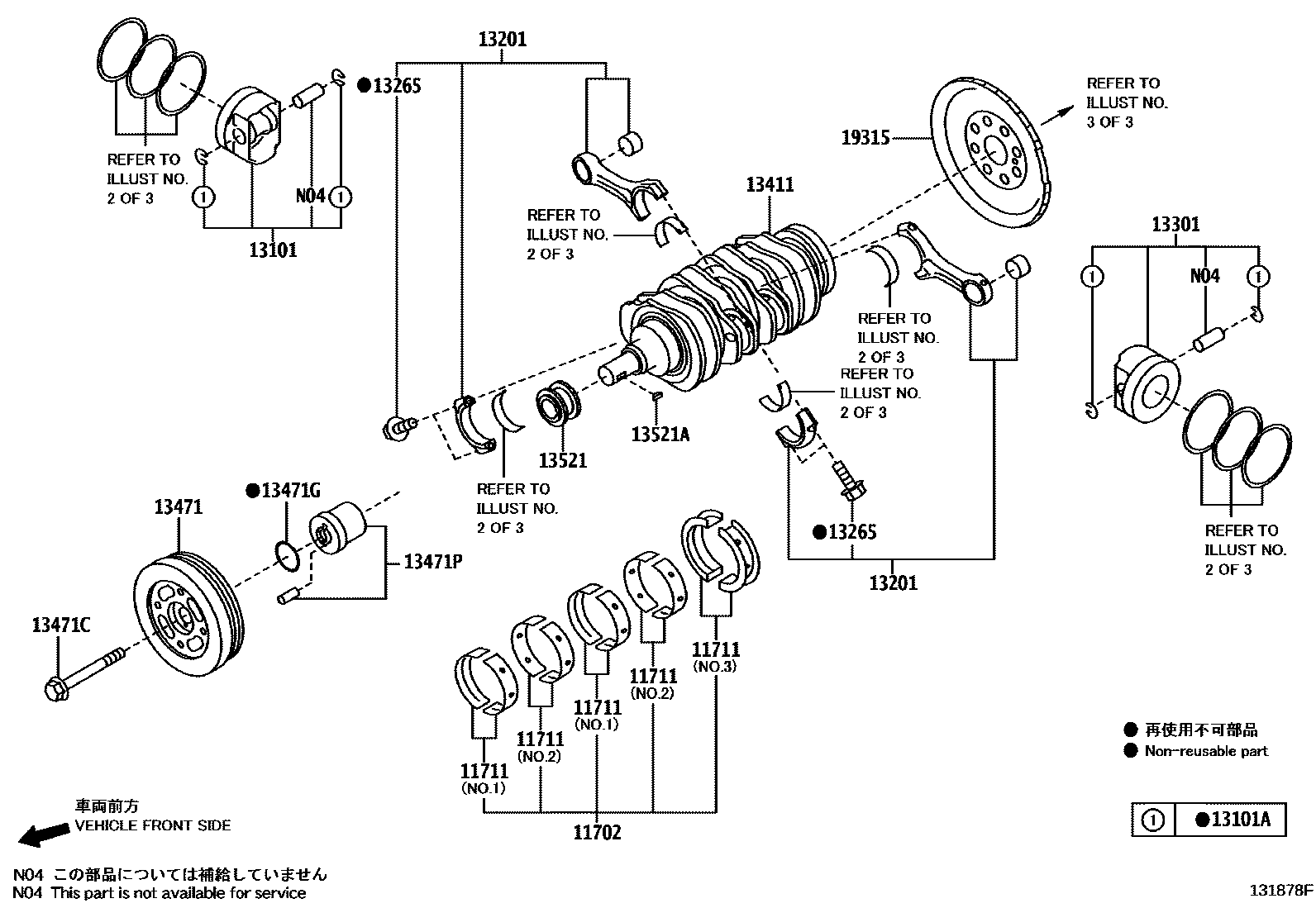

CRANKSHAFT & PISTON
11702BEARING SET, CRANKSHAFT
STD
U/S 0.03
U/S 0.05
U/S 0.25
11711BEARING, CRANKSHAFT
NO.2,STD
NO.2,U/S 0.03
NO.2,U/S 0.05
NO.2,U/S 0.25
NO.1,STD
NO.1,U/S 0.03
NO.1,U/S 0.05
NO.1,U/S 0.25
NO.3,STD
NO.3,U/S 0.03
NO.3,U/S 0.05
NO.3,U/S 0.25
13101PISTON SUB-ASSY, W/PIN
STD GRADE A,REFER REPAIR MANUAL
STD GRADE B,REFER REPAIR MANUAL
O/S 0.25,REFER REPAIR MANUAL
O/S 0.50,REFER REPAIR MANUAL
STD GRADE A,REFER REPAIR MANUAL
STD GRADE B,REFER REPAIR MANUAL
O/S 0.25,REFER REPAIR MANUAL
O/S 0.50,REFER REPAIR MANUAL
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13265BOLT, CONNECTING ROD
13301PISTON SUB-ASSY, W/PIN, LH
STD GRADE A,REFER REPAIR MANUAL
STD GRADE B,REFER REPAIR MANUAL
O/S 0.25,REFER REPAIR MANUAL
O/S 0.50,REFER REPAIR MANUAL
STD GRADE A,REFER REPAIR MANUAL
STD GRADE B,REFER REPAIR MANUAL
O/S 0.25,REFER REPAIR MANUAL
O/S 0.50,REFER REPAIR MANUAL
13411CRANKSHAFT
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13471GRING, O(FOR CRANKSHAFT PULLEY)
13471PSPACER(FOR CRANKSHAFT PULLEY)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
19315PLATE, CRANK ANGLE SENSOR, NO.1
15 parts on this diagram · 3 diagrams in section
