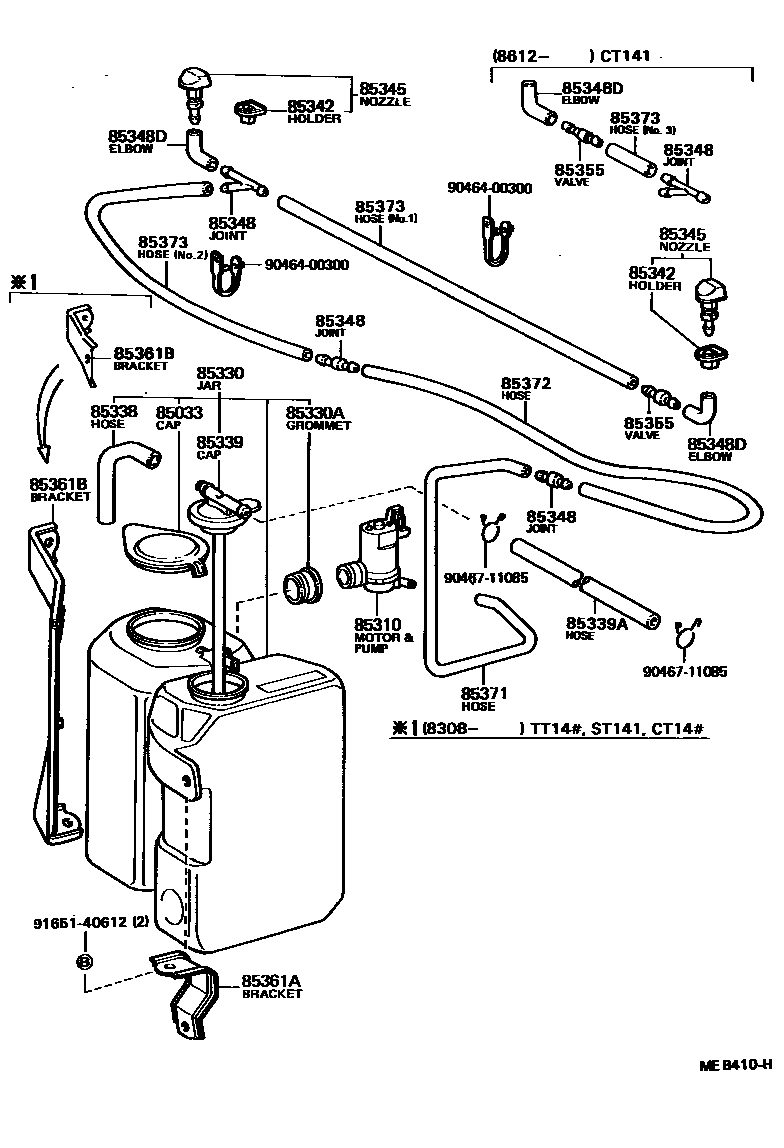

WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85339CAP SUB-ASSY, RESERVE TANK
85339AHOSE (FOR RADIATOR RESERVE TANK)
85342HOLDER, WASHER NOZZLE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
3-WAY
3-WAY
2-WAY,NO.1
2-WAY
2-WAY,NO.1,NO.2
2-WAY,NO.2
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85355VALVE, WINDSHIELD WASHER HOSE
85361ABRACKET, WINDSHIELD WASHER, NO.1
85361BBRACKET, WINDSHIELD WASHER, NO.2
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=700
L=2000(*H,L=400)
L=600(*H,L=370)
L=1000
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=2000(*H,L=1200)
L=2000(*H,L=1100)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1000(*H,L=550)
L=1000(*H,L=550),NO.1,NO.2
L=1450(*H,L=480),NO.2
L=1000(*H,L=420),NO.1,NO.3
9046400300
main90464-00300
9046711085
main90467-11085
9165140612
main91651-40612
20 parts on this diagram · 4 diagrams in section
