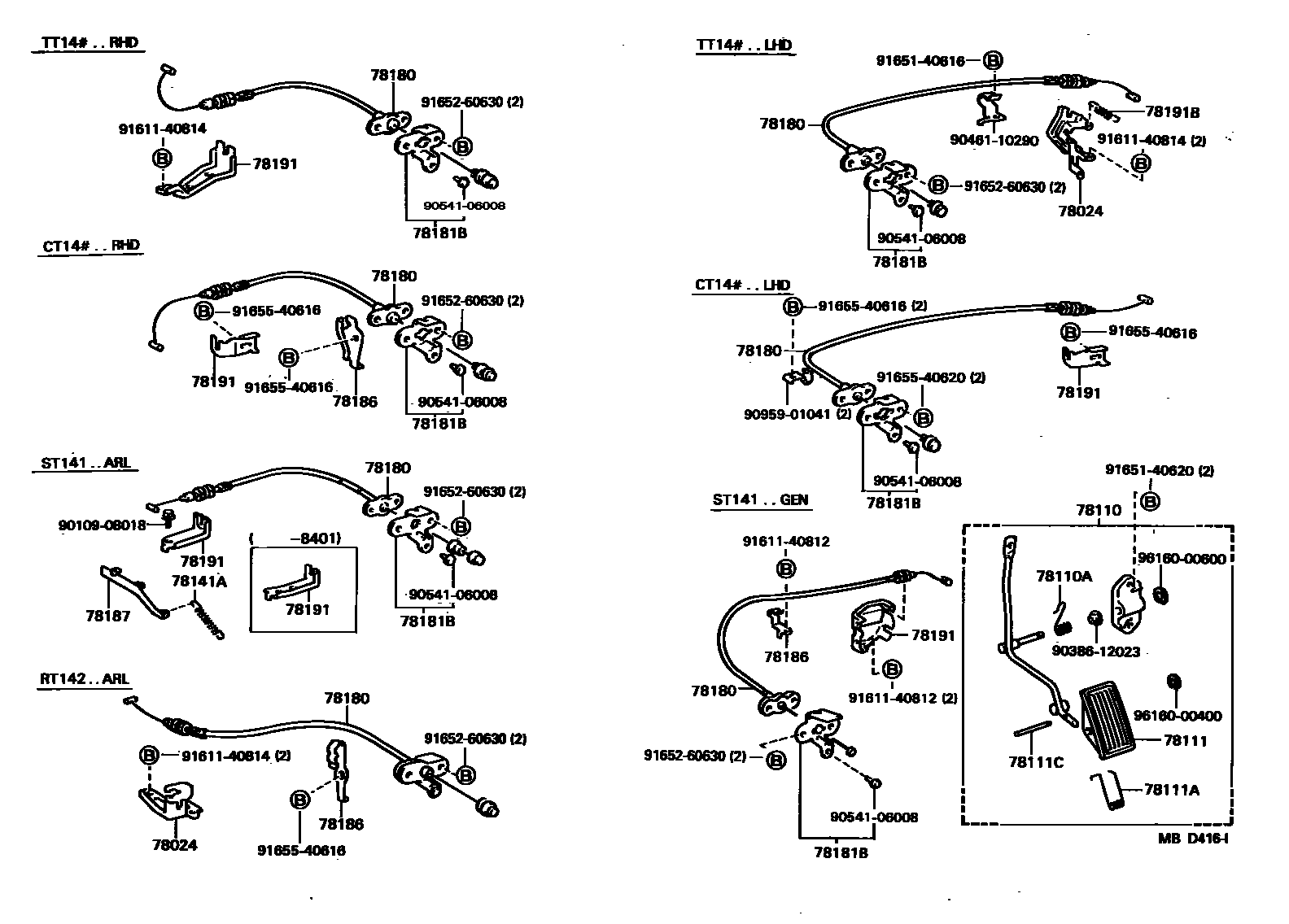

ACCELERATOR LINK

0001 1 0002 1 0003 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-12010iTT14#..LHD198201-198508

main78024-20020iRT142198408-198612

78110ROD ASSY, ACCELERATOR PEDAL

main78120-14240iRT142..4FC198408-198612

main78120-14270iTT14#..LHD..(4F,5F)198201-198508

main78120-14280iTT14#..RHD..MTM198201-198412

main78120-14290iTT141..RHD..3FC198201-198412

main78120-14300iST141..5F..GEN198508-199907

main78120-14320iST141..4FC..GEN198508-199907

main78120-14340iTT141..LHD..3FC198201-198508

main78120-14380iCT141..5F198201-199907

main78120-14400iCT141..4F198201-199907

main78120-14410iRT142,ST141..MTM..ARL198304-198612

main78120-20160iTT140..4H198201-198310

main78120-20170iRT140198206-198312

main78120-20200iYT140..RHD198801-199907

main78120-20240iST141..ATM..ARL198304-198612

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18024iRT140198206-198312

main90508-18033iRT142,ST141,TT141..ATM198201-199907

main90508-23052iST141..5F..GEN198201-198612

sub90508-23064

main90508-23064iTT140..4H198201-199907

main90508-26048iRT142,ST141..MTM..ARL198304-199907

main90508-26049iCT141..5F198201-199907

78111PEDAL, ACCELERATOR

main78111-12100iCT14#,RT14#,ST141,TT14#198201-199907

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23003iCT141,YT140198201-199907

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iCT14#,RT14#,ST141,TT14#198201-199907

78141ASPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)

main90507-07001iST141..ATM198304-199907

main90507-08003iST141..MTM198304-199907

main90507-08003iST141..WG..5F..ARL198508-198612

*NZ

78180WIRE ASSY, ACCELERATOR

main78180-14320iCT141..5F198201-199907

main78180-14330iTT14#..RHD198201-198508

sub78180-14270

main78180-14350iTT14#..LHD198201-198508

main78180-14382iST141198304-198401

main78180-14510iCT140..LHD198201-199907

main78180-14720iST141..ARL198401-198612

main78180-14740iRT142198408-198612

main78180-20600iST141..GEN198508-199907

main78180-20740iYT140..LHD198612-199907

main78180-2B310iYT140..RHD198801-199907

78181BSTOPPER, ACCELERATOR IDLE ADJUSTING

main78181-14060iCT14#,ST141,TT14#198201-199907

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-14020iCT140..RHD198201-198207

sub78186-14021

main78186-14021iCT141..5F198207-199907

main78186-14080iYT140..RHD198408-199907

main78186-20060iST141..GEN198508-199907

main78186-20080iYT140..LHD198612-199907

78187BRACKET, ACCELERATOR PULL BACK SPRING

main78187-14020iST141198304-199907

78191BRACKET, ACCELERATOR WIRE SUPPORT

main78024-14030iST141..ARL198401-198612

main78184-12050iTT14#..RHD198201-198508

main78184-14041iST141198304-198401

main78184-14060iCT140198201-199907

main78184-20090iST141..GEN198508-199907

main78184-95J00iYT140198612-199907

78191BSPRING, TENSION (FOR ACCELERATOR WIRE SUPPORT BRACKET)

main90507-08002iTT14#..LHD198201-198508

9010908018

main90109-08018

9038612023

main90386-12023

9046110290

main90461-10290

9054106008

main90541-06008

9095901041

main90959-01041

9161140812

main91611-40812

9161140814

main91611-40814

9165140616

main91651-40616

9165140620

main91651-40620

9165260630

main91652-60630

9165540616

main91655-40616

9165540620

main91655-40620

9616000400

main96160-00400

9616000600

main96160-00600

27 parts on this diagram · 3 diagrams in section
