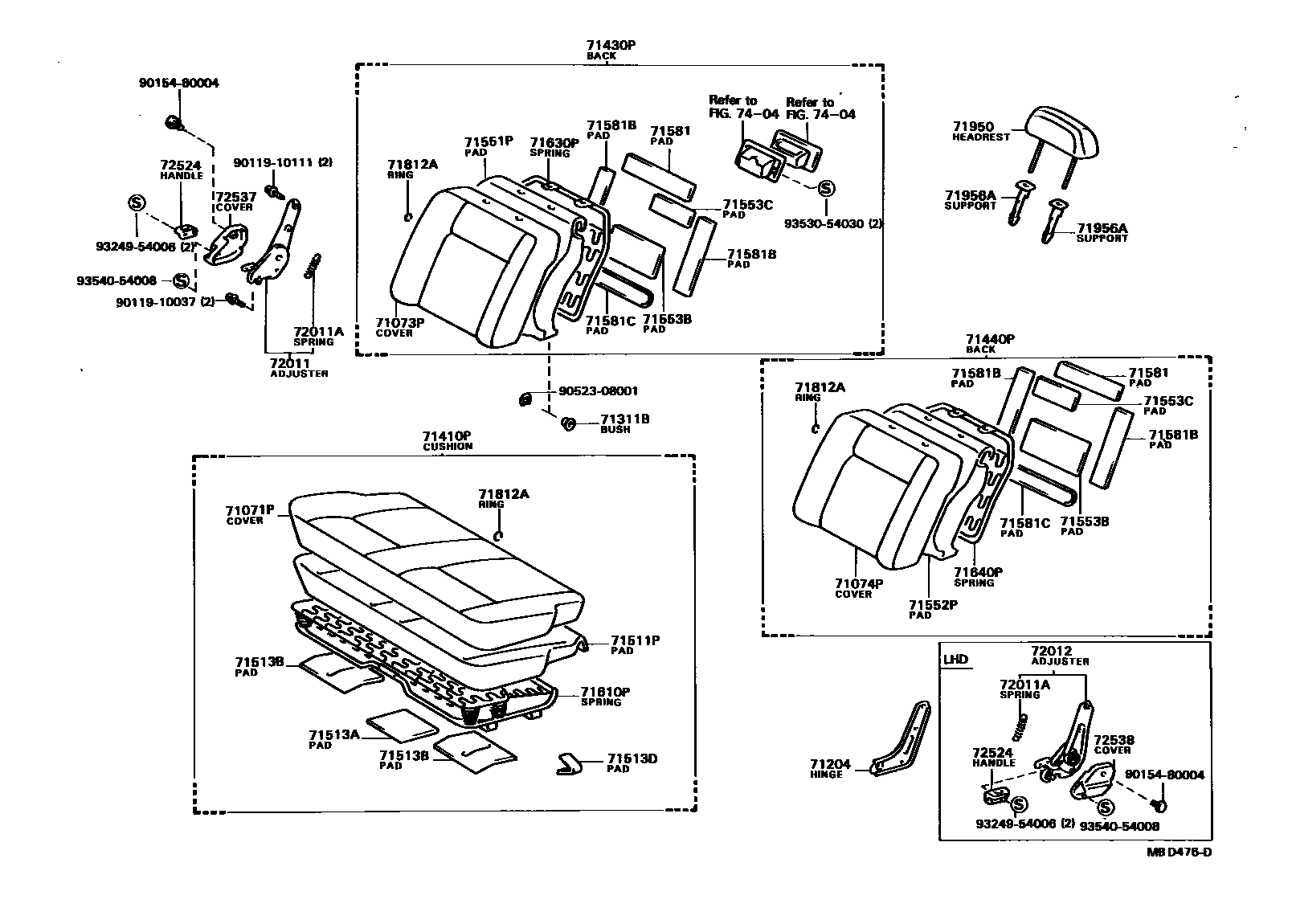

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1

71071PCOVER, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE)

main71071-2B120-03iTT140..3H,4H198201-198206

PF,GRAY,GRAY

main71071-2B120-04iTT140..3H,4H198201-198206

PF,BLUE,BLUE

main71071-2B120-05iTT140..3H,4H198201-198206

PF,BEIGE,BEIGE

main71071-2B230-03iTT140..3H,4H198206-198212

PF,GRAY,GRAY

main71071-2B230-04iTT140..3H,4H198206-198212

PF,BLUE,BLUE

main71071-2B230-05iTT140..3H,4H198206-198212

PF,BEIGE,BEIGE

main71071-2B231-03iTT140..3H,4H198212-198310

PF,GRAY,GRAY

main71071-2B231-04iTT140..3H,4H198212-198310

PF,BLUE,BLUE

main71071-2B231-05iTT140..3H,4H198212-198310

PF,BEIGE,BEIGE

71073PCOVER, FRONT SEATBACK, RH(FOR SEMI-SEPARATE TYPE)

main71073-2B120-03iTT140..3H,4H198201-198206

W/O HEADREST,PF,GRAY,GRAY

main71073-2B120-04iTT140..3H,4H198201-198206

W/O HEADREST,PF,BLUE,BLUE

main71073-2B120-05iTT140..3H,4H198201-198206

W/O HEADREST,PF,BEIGE,BEIGE

main71073-2B130-03iTT140..3H,4H198201-198206

W/HEADREST,PF,GRAY,GRAY

main71073-2B130-04iTT140..3H,4H198201-198206

W/HEADREST,PF,BLUE,BLUE

main71073-2B130-05iTT140..3H,4H198201-198206

W/HEADREST,PF,BEIGE,BEIGE

main71073-2B250-03iTT140..3H,4H198206-198310

W/O HEADREST,PF,GRAY,GRAY

main71073-2B250-04iTT140..3H,4H198206-198310

W/O HEADREST,PF,BLUE,BLUE

main71073-2B250-05iTT140..3H,4H198206-198310

W/O HEADREST,PF,BEIGE,BEIGE

main71073-2B260-03iTT140..3H,4H198206-198310

W/HEADREST,PF,GRAY,GRAY

main71073-2B260-04iTT140..3H,4H198206-198310

W/HEADREST,PF,BLUE,BLUE

main71073-2B260-05iTT140..3H,4H198206-198310

W/HEADREST,PF,BEIGE,BEIGE

71074PCOVER, FRONT SEATBACK, LH(FOR SEMI-SEPARATE TYPE)

main71074-20690-03iTT140..3H,4H198201-198206

W/O HEADREST,PF,GRAY,GRAY

main71074-20690-04iTT140..3H,4H198201-198206

W/O HEADREST,PF,BLUE,BLUE

main71074-20690-05iTT140..3H,4H198201-198206

W/O HEADREST,PF,BEIGE,BEIGE

main71074-20700-03iTT140..3H,4H198201-198206

W/HEADREST,PF,GRAY,GRAY

main71074-20700-04iTT140..3H,4H198201-198206

W/HEADREST,PF,BLUE,BLUE

main71074-20700-05iTT140..3H,4H198201-198206

W/HEADREST,PF,BEIGE,BEIGE

main71074-20770-03iTT140..3H,4H198206-198310

W/O HEADREST,PF,GRAY,GRAY

main71074-20770-04iTT140..3H,4H198206-198310

W/O HEADREST,PF,BLUE,BLUE

main71074-20770-05iTT140..3H,4H198206-198310

W/O HEADREST,PF,BEIGE,BEIGE

main71074-20780-03iTT140..3H,4H198206-198310

W/HEADREST,PF,GRAY,GRAY

main71074-20780-04iTT140..3H,4H198206-198310

W/HEADREST,PF,BLUE,BLUE

main71074-20780-05iTT140..3H,4H198206-198310

W/HEADREST,PF,BEIGE,BEIGE

71204HINGE SUB-ASSY, PASSENGER SEAT, LH

main71164-20040iTT140..3H198201-198310

71311BBUSH (FOR FRONT SEAT HINGE PIN)

main90386-12016×2iTT140..3H,4H198201-198310

main90386-12018×2iCT14#,RT14#,ST141,TT14#..3FC,4F,4FC,5F198201-198612

71410PCUSHION ASSY, FRONT SEAT(FOR SEMI-SEPARATE TYPE)

main71410-2B230-03iTT140..3H,4H198201-198206

PF,GRAY,GRAY

main71410-2B230-04iTT140..3H,4H198201-198206

PF,BLUE,BLUE

main71410-2B230-05iTT140..3H,4H198201-198206

PF,BEIGE,BEIGE

main71410-2B350-03iTT140..3H,4H198206-198212

PF,GRAY,GRAY

main71410-2B350-04iTT140..3H,4H198206-198212

PF,BLUE,BLUE

main71410-2B350-05iTT140..3H,4H198206-198212

PF,BEIGE,BEIGE

main71410-2B351-03iTT140..3H,4H198212-198310

PF,GRAY,GRAY

main71410-2B351-04iTT140..3H,4H198212-198310

PF,BLUE,BLUE

main71410-2B351-05iTT140..3H,4H198212-198310

PF,BEIGE,BEIGE

71430PBACK ASSY, FRONT SEAT, RH(FOR SEMI-SEPARATE TYPE)

main71430-2B180-03iTT140..3H,4H198201-198206

W/O HEADREST,PF,GRAY,GRAY

main71430-2B180-04iTT140..3H,4H198201-198206

W/O HEADREST,PF,BLUE,BLUE

main71430-2B180-05iTT140..3H,4H198201-198206

W/O HEADREST,PF,BEIGE,BEIGE

main71430-2B200-03iTT140..3H,4H198201-198206

W/HEADREST,PF,GRAY,GRAY

main71430-2B200-04iTT140..3H,4H198201-198206

W/HEADREST,PF,BLUE,BLUE

main71430-2B200-05iTT140..3H,4H198201-198206

W/HEADREST,PF,BEIGE,BEIGE

main71430-2B290-03iTT140..3H,4H198206-198310

W/O HEADREST,PF,GRAY,GRAY

main71430-2B290-04iTT140..3H,4H198206-198310

W/O HEADREST,PF,BLUE,BLUE

main71430-2B290-05iTT140..3H,4H198206-198310

W/O HEADREST,PF,BEIGE,BEIGE

main71430-2B310-03iTT140..3H,4H198206-198310

W/HEADREST,PF,GRAY,GRAY

main71430-2B310-04iTT140..3H,4H198206-198310

W/HEADREST,PF,BLUE,BLUE

main71430-2B310-05iTT140..3H,4H198206-198310

W/HEADREST,PF,BEIGE,BEIGE

71440PBACK ASSY, FRONT SEAT, LH(FOR SEMI-SEPARATE TYPE)

main71440-20780-03iTT140..3H,4H198201-198206

W/O HEADREST,PF,GRAY,GRAY

main71440-20780-04iTT140..3H,4H198201-198206

W/O HEADREST,PF,BLUE,BLUE

main71440-20780-05iTT140..3H,4H198201-198206

W/O HEADREST,PF,BEIGE,BEIGE

main71440-20790-03iTT140..3H,4H198201-198206

W/HEADREST,PF,GRAY,GRAY

main71440-20790-04iTT140..3H,4H198201-198206

W/HEADREST,PF,BLUE,BLUE

main71440-20790-05iTT140..3H,4H198201-198206

W/HEADREST,PF,BEIGE,BEIGE

main71440-20870-03iTT140..3H,4H198206-198310

W/O HEADREST,PF,GRAY,GRAY

main71440-20870-04iTT140..3H,4H198206-198310

W/O HEADREST,PF,BLUE,BLUE

main71440-20870-05iTT140..3H,4H198206-198310

W/O HEADREST,PF,BEIGE,BEIGE

main71440-20890-03iTT140..3H,4H198206-198310

W/HEADREST,PF,GRAY,GRAY

main71440-20890-04iTT140..3H,4H198206-198310

W/HEADREST,PF,BLUE,BLUE

main71440-20890-05iTT140..3H,4H198206-198310

W/HEADREST,PF,BEIGE,BEIGE

71511PPAD, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE)

main71511-20310iTT140..3H,4H198201-198310

71513APAD, FRONT SEAT CUSHION, A

main71521-20260iTT140..3H,4H198201-198310

71513BPAD, FRONT SEAT CUSHION, B

main71522-20100×2iTT140..3H,4H198201-198310

main71522-22090×2iCT141198601-198603

main71522-22100×2iCT141,YT140198603-199907

71513DPAD, FRONT SEAT CUSHION, D

main71524-20010×2iCT141,YT140198809-199907

71551PPAD, FRONT SEATBACK, RH(FOR SEMI-SEPARATE TYPE)

main71551-20280iTT140..3H,4H198201-198310

71552PPAD, FRONT SEATBACK, LH(FOR SEMI-SEPARATE TYPE)

main71552-20160iTT140..3H,4H198201-198310

71553BPAD, FRONT SEATBACK, B

main71553-20090×2iTT140..3H,4H198201-198310

71553CPAD, FRONT SEATBACK, C

main71573-20080×2iTT140..3H,4H198201-198310

71581PAD, FRONT SEATBACK SILENCER

main71571-20150×2iTT140..3H,4H198201-198310

main71571-22150×2iCT141,YT140198601-199907

main71571-24010×2iCT140,RT140,TT14#..3FC,4F,5F198201-198508

71581BPAD, FRONT SEATBACK CORNER, B

main71581-20030×4iTT140..3H,4H198201-198310

71581CPAD, FRONT SEATBACK CORNER, C

main71582-20090×2iTT140..3H,4H198201-198310

main71583-22070×2iCT141,YT140198601-199907

71610PSPRING ASSY, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE)

main71610-20260iTT140..3H,4H198201-198310

71630PSPRING ASSY, FRONT SEATBACK, RH(FOR SEMI-SEPARATE TYPE)

main71630-20231iTT140..3H,4H198201-198310

71640PSPRING ASSY, FRONT SEATBACK, LH(FOR SEMI-SEPARATE TYPE)

main71640-20151iTT140..3H,4H198201-198310

71812ARING, HOG, SMALL (FOR FRONT SEAT)

main90468-18071iCT14#,RT14#,ST141,TT14#198201-198612

71950HEADREST ASSY, FRONT SEAT

main71910-14360-01×2iST141..GEN198508-199907

BLACK,BLACK

main71910-14360-04×2iCT140,RT14#,ST141,TT14#..SED..(3FC,4F,5F)..(CS,CSI,DLX,S,STD,TAX)198201-198508

BLUE,BLUE

main71910-14360-16×2iCT140,RT14#,ST141,TT14#..(3FC,4F,5F)..(CS,CSI,DLX,S,STD,TAX)198201-198508

SADDLE BROWN,BROWN

main71910-14461-01×2iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-198310

W/ADJUSTER,BLACK,BLACK

main71910-14461-04×2iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-198310

W/ADJUSTER,BLUE,BLUE

main71910-14461-16×2iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-198310

W/ADJUSTER,SADDLE BROWN,BROWN

main71910-14580-01×2iCT140,RT140,TT14#..SED..(DLX,GL)198310-198508

W/ADJUSTER,BLACK,BLACK

main71910-14580-04×2iCT140,RT140,TT14#..SED..(DLX,GL)198310-198508

W/ADJUSTER,BLUE,BLUE

main71910-20380-01×2iCT141198601-198612

BLACK,BLACK

main71910-20830-01×2iCT141,YT140198612-199907

VL,BLACK,BLACK

main71910-20830-04iCT141,YT140198705-199907

*ST,NTUC,VL,BLUE,BLUE

main71910-22240-01×2iTT140..3H,4H198201-198310

BLACK,BLACK

main71910-22240-14×2iTT140..3H,4H198201-198310

BLUE,BLUE

main71910-22240-16×2iTT140..3H,4H198201-198310

SADDLE BROWN,BROWN

71956ASUPPORT, FRONT SEAT HEADREST

main71930-10060-01×2iYT140198612-199907

W(LOCK),W/LOCK,VL,BLACK,BLACK

main71930-10060-11iCT141,YT140198705-199907

W(LOCK),*ST,NTUC,VL,W/LOCK,BLACK,BLACK

main71930-14090-01×2iST141..CSX,DLX;RT142,ST141..SED..(CS,CSI,CXI,S)198508-199907

W/LOCK,BLACK,BLACK

main71930-14090-05×2iST141..GEN198508-199907

W/LOCK,BEIGE,BEIGE

main71930-14090-14×2iCT140,RT14#,ST141,TT14#..SED..(3FC,4F,4FC,5F)198201-198508

W/LOCK,BLUE,BLUE

main71931-10010-01×2iYT140198612-199907

W/O(LOCK),W/O LOCK,VL,BLACK,BLACK

main71931-10010-11iCT141,YT140198705-199907

W/O(LOCK),*ST,NTUC,VL,W/LOCK,BLACK,BLACK

main71931-14020-01×2iCT141,YT140198612-199907

W/O LOCK,FB,BLACK,BLACK

main71931-14020-05×2iCT140,RT14#,ST141,TT14#..3FC,4F,4FC,5F198201-198508

W/O LOCK,BEIGE,BEIGE

main71931-14020-14×2iCT140,RT14#,ST141,TT14#..SED..(3FC,4F,4FC,5F)198201-198508

W/O LOCK,BLUE,BLUE

main71956-30020-01×2iTT140..3H,4H198201-198310

W/O(LOCK),W/O LOCK,BLACK,BLACK

main71956-30020-04×2iTT140..3H,4H198201-198310

W/O(LOCK),W/O LOCK,BLUE,BLUE

main71956-30020-25×2iTT140..3H,4H198201-198310

W/O(LOCK),W/O LOCK,BEIGE,BEIGE

main71990-30020-01×2iTT140..3H,4H198201-198310

W(LOCK),W/LOCK,BLACK,BLACK

main71990-30020-04×2iTT140..3H,4H198201-198310

W(LOCK),W/LOCK,BLUE,BLUE

main71990-30020-25×2iTT140..3H,4H198201-198310

W(LOCK),W/LOCK,BEIGE,BEIGE

72011ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

main72010-14180iCT141,YT140..LHD; CT141,YT140..RHD198612-199907

W/FB SEAT; W/VERTICAL ADJUSTER

main72010-14190iCT140,TT14#..SED..RHD..(DLX,GL)198201-198304

W/VERTICAL ADJUSTER

main72010-20130iRT142,ST141..CSX,CXI198508-198612

main72010-20140iRT142,ST141..CS,CSI,S198508-198612

main72510-20090iCT141198601-198612

main72510-20120×2iCT141,YT140198612-199907

main72510-20130iTT140..3H,4H198201-198209

main72510-20140iTT140..3H198209-198310

72011ASPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER)

main90506-15002×2iTT140..3H,4H198201-198310

main90506-18015×2iCT140,RT14#,ST141,TT14#..3FC,4F,4FC,5F198201-199907

72012ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH

main72020-14190iCT140,RT142,ST141,TT14#..RHD..(3FC,4F,4FC,5F)198201-198410

main72020-14200iCT140,TT14#..SED..LHD..(DLX,GL,TAX)198201-198304

W/VERTICAL ADJUSTER

main72020-20120iCT141,YT140..LHD198612-199907

W/VERTICAL ADJUSTER

main72020-20140iRT142,ST141..ARL198410-198612

main72520-20130iCT141,YT140198601-199907

main72520-20140iTT140..4H198201-198209

main72520-20150iTT140..4H198209-198310

72524HANDLE, RECLINING ADJUSTER RELEASE

main72525-14010-01iST141..SED..GEN198508-199907

RH,BLACK,BLACK

main72525-14010-14iCT140,RT14#,ST141,TT14#..SED..(3FC,4F,4FC,5F)198201-198508

RH,BLUE,BLUE

main72525-14010-36iST141..GEN198508-199907

RH,BROWN,BROWN

main72525-20050-01iCT141,YT140198601-199907

RH,BLACK,BLACK

main72525-20050-24iTT140..3H,4H198201-198310

RH,BLUE,BLUE

main72525-20050-26iTT140..3H,4H198201-198310

RH,SADDLE BROWN,BROWN

main72526-14010-01iCT141,YT140..LHD; CT141,YT140..RHD198612-199907

W/*VA,LH,BLACK,BLACK; W/FB SEAT,LH,BLACK,BLACK

main72526-14010-14iCT140,RT14#,ST141,TT14#..SED..(3FC,4F,4FC,5F)198201-198508

LH,BLUE,BLUE

main72526-14010-36iST141..GEN198508-199907

LH,BROWN,BROWN

main72526-20040-01iCT141,YT140198601-199907

LH,BLACK,BLACK

main72526-20040-24iTT140..4H198201-198310

LH,BLUE,BLUE

main72526-20040-26iTT140..4H198201-198310

LH,SADDLE BROWN,BROWN

72537COVER, RECLINING HINGE OUTER, RH

main71811-20060-01iTT140..3H,4H198201-198310

BLACK,BLACK

main71811-20060-04iTT140..3H,4H198201-198310

BLUE,BLUE

main71811-20060-16iTT140..3H,4H198201-198310

SADDLE BROWN,BROWN

main71811-20090iCT141,YT140198601-199907

BLACK

72538COVER, RECLINING HINGE OUTER, LH

main71812-20020-01iTT140..4H198201-198310

BLACK,BLACK

main71812-20020-04iTT140..4H198201-198310

BLUE,BLUE

main71812-20020-16iTT140..4H198201-198310

SADDLE BROWN,BROWN

main71812-20030iCT141,YT140198601-199907

BLACK

7404ASH RECEPTACLE

→ Go to FIG 74-04

9011910037

main90119-10037

9011910111

main90119-10111

9015480004

main90154-80004

9052308001

main90523-08001

9324954006

main93249-54006

9353054030

main93530-54030

9354054008

main93540-54008

39 parts on this diagram · 3 diagrams in section
