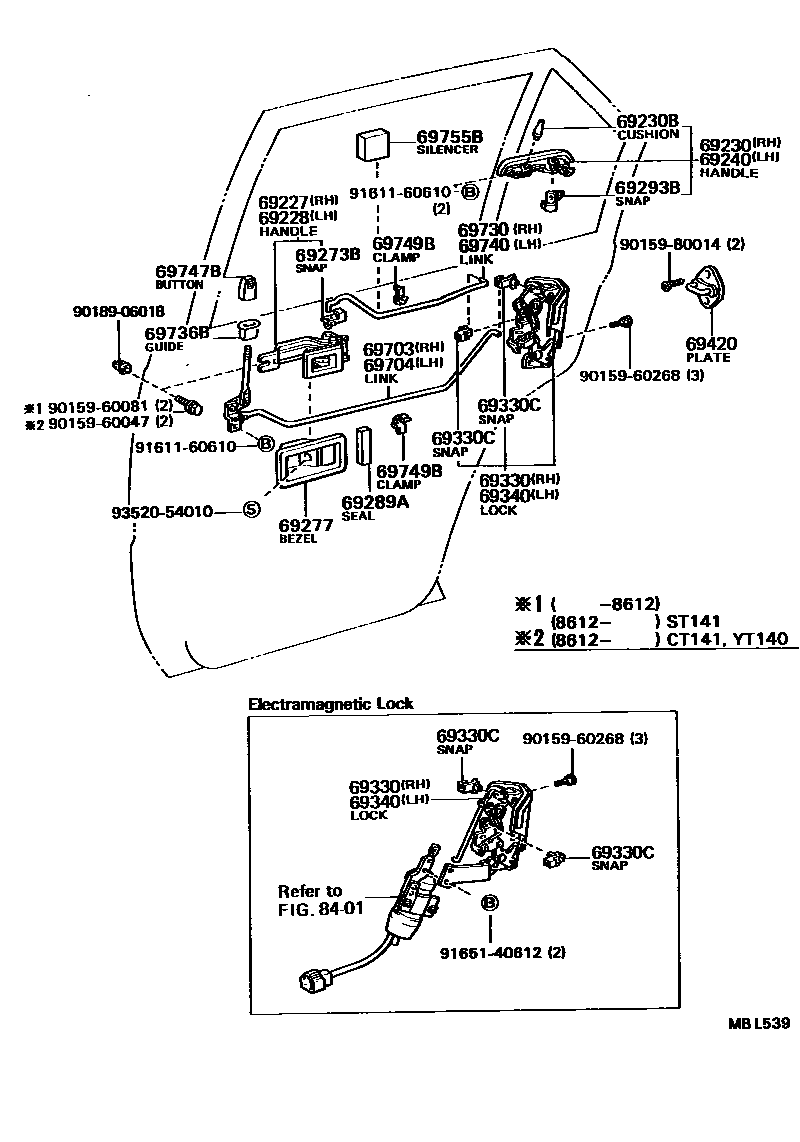

REAR DOOR LOCK & HANDLE

69227HANDLE, REAR DOOR INSIDE, RH

main69205-14040-01iCT140,RT140,ST141,TT14#198201-198305

BLACK,BLACK

main69205-14040-04iCT140,RT140,ST141,TT14#..SED198201-198305

BLUE,BLUE

main69205-14040-16iCT140,RT140,ST141,TT14#198201-198305

SADDLE BROWN,BROWN

main69205-14041-01iCT141,YT140198305-199907

BLACK,BLACK

main69205-14041-04iCT140,RT14#,ST141,TT14#..SED198305-198508

BLUE,BLUE

main69205-14041-16iCT140,RT14#,ST141,TT14#198305-199907

SADDLE BROWN,BROWN

69228HANDLE, REAR DOOR INSIDE, LH

main69206-14040-01iCT140,RT140,ST141,TT14#198201-198305

BLACK,BLACK

main69206-14040-04iCT140,RT140,ST141,TT14#..SED198201-198305

BLUE,BLUE

main69206-14040-16iCT140,RT140,ST141,TT14#198201-198305

SADDLE BROWN,BROWN

main69206-14041-01iCT140,RT14#,ST141,TT14#198305-199907

BLACK,BLACK

main69206-14041-04iCT140,RT14#,ST141,TT14#..SED198305-198508

BLUE,BLUE

main69206-14041-16iST141..GEN198305-199907

SADDLE BROWN,BROWN

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-20070iCT14#,RT14#,ST141,TT14#198201-199907

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-03021iCT140,RT140,ST141,TT14#198201-199907

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-20070iCT14#,RT14#,ST141,TT14#198201-199907

69273BSNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)

main69759-14050iCT140,RT140,ST141,TT14#198201-198305

RH

main69759-20060iCT14#,RT14#,ST141,TT14#198305-199907

RH

main69759-20070iCT14#,RT14#,ST141,TT14#198305-199907

LH

main69759-24070iCT140,RT140,ST141,TT14#198201-198305

LH

69277BEZEL, REAR DOOR INSIDE HANDLE

main69277-16040-01iCT140,RT14#,ST141,TT14#198201-199907

BLACK,BLACK

sub69277-16040

sub69277-89104

main69277-16040-14iCT140,RT14#,ST141,TT14#..SED198201-198508

BLUE,BLUE

sub69277-16040

sub69277-89104

main69277-16040-26iCT140,RT14#,ST141,TT14#198201-199907

SADDLE BROWN,BROWN

sub69277-16040

sub69277-89104

69289ASEAL, DOOR INSIDE HANDLE, NO.2

main69289-12010iCT140,RT14#,ST141,TT14#198308-199907

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-16010iCT141,YT140198201-199907

LH

main69293-16020iCT14#,RT14#,ST141,TT14#198201-199907

RH

69330LOCK ASSY, REAR DOOR, RH

main69330-20110iCT140,RT140,TT14#198201-198305

main69330-20111iRT142,ST141..CS,CSI,S198305-199907

main69330-20120iST141,TT141..CSX,GL198212-198305

W/*EL

main69330-20121iRT142,ST141..CSX,CXI198305-198612

W/*EL

main69330-20131iCT141198601-198612

69330CSNAP(FOR REAR DOOR LOCK)

main69759-20040iCT14#,RT14#,ST141,TT14#198305-199907

YELLOW

main69759-20050iCT14#,RT14#,ST141,TT14#198305-199907

BROWN

main69759-24010iRT142,ST141,TT141..CSX,CXI,GL198305-198612

RH,W/*EL,WHITE

main69759-24020iRT142,ST141,TT141..CSX,CXI,GL198305-198612

LH,W/*EL,BLUE

main69759-24050iCT140,RT140,ST141,TT14#198201-198310

LH

main69759-24060iCT140,RT140,ST141,TT14#198201-198310

RH

69340LOCK ASSY, REAR DOOR, LH

main69340-20110iST141..CS,S198201-198305

main69340-20111iCT140,RT140,TT14#198305-199907

main69340-20120iST141,TT141..CSX,GL198212-198305

W/*EL

main69340-20121iRT142,ST141..CSX,CXI198305-198612

W/*EL

main69340-20131iCT141198601-198612

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-14050iCT140,RT140,TT14#198201-198303

sub69410-20070

main69410-87001iCT14#,RT14#,ST141,TT14#198303-199907

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69770-20020iCT140,RT140,ST141,TT14#198201-198305

sub69770-20021

sub69759-20100

main69770-20021iCT14#,RT14#,ST141,TT14#198305-199907

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69780-20020iCT140,RT140,ST141,TT14#198201-198305

sub69780-20021

sub69759-20100

main69780-20021iCT14#,RT14#,ST141,TT14#198305-199907

69730LINK ASSY, REAR DOOR OPEN CONTROL, RH

main69713-14020iCT140,RT140,ST141,TT14#198201-198305

main69713-14021iCT141,YT140198305-199907

69736BGUIDE, REAR DOOR LOCK LINK

main69736-22021iCT140,TT14#..DLX,GL,TAX198201-198204

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69714-14020iCT140,RT140,ST141,TT14#198201-198305

main69714-14021iCT14#,RT14#,ST141,TT14#198305-199907

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69741-20020-01iCT140,TT14#198201-198205

BLACK,BLACK

sub69741-20020

sub69741-32010

main69741-20020-14iCT140,TT14#..SED198201-198205

BLUE,BLUE

sub69741-20020

sub69741-32010

main69741-20020-36iCT140,TT14#198201-198205

SADDLE BROWN,BROWN

sub69741-20020

sub69741-32010

main69741-32010-01iCT140,RT14#,ST141,TT14#198205-199907

BLACK,BLACK

sub69741-32010

sub69741-90K00

main69741-32010-04iCT140,RT14#,ST141,TT14#..SED198205-198508

BLUE,BLUE

sub69741-32010

sub69741-90K00

main69741-32010-06iCT140,RT14#,ST141,TT14#198205-199907

SADDLE BROWN,BROWN

sub69741-32010

sub69741-90K00

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12010iCT140,RT140,TT14#198201-198207

main69749-20010iCT14#,RT14#,ST141,TT14#198305-199907

main69749-30020iCT140,RT140,ST141,TT14#198207-198305

69755BSILENCER, REAR DOOR LOCK LINK

main69759-10040iTT141..LHD..(3FC,4F)..DLX..GEN198308-199907

8401

9015960047

main90159-60047

9015960081

main90159-60081

9015960268

main90159-60268

9015980014

main90159-80014

9018906018

main90189-06018

9161160610

main91611-60610

9165140612

main91651-40612

9352054010

main93520-54010

30 parts on this diagram · 1 diagram in section
