Toyota CORONA FR — CONSOLE BOX & BRACKET

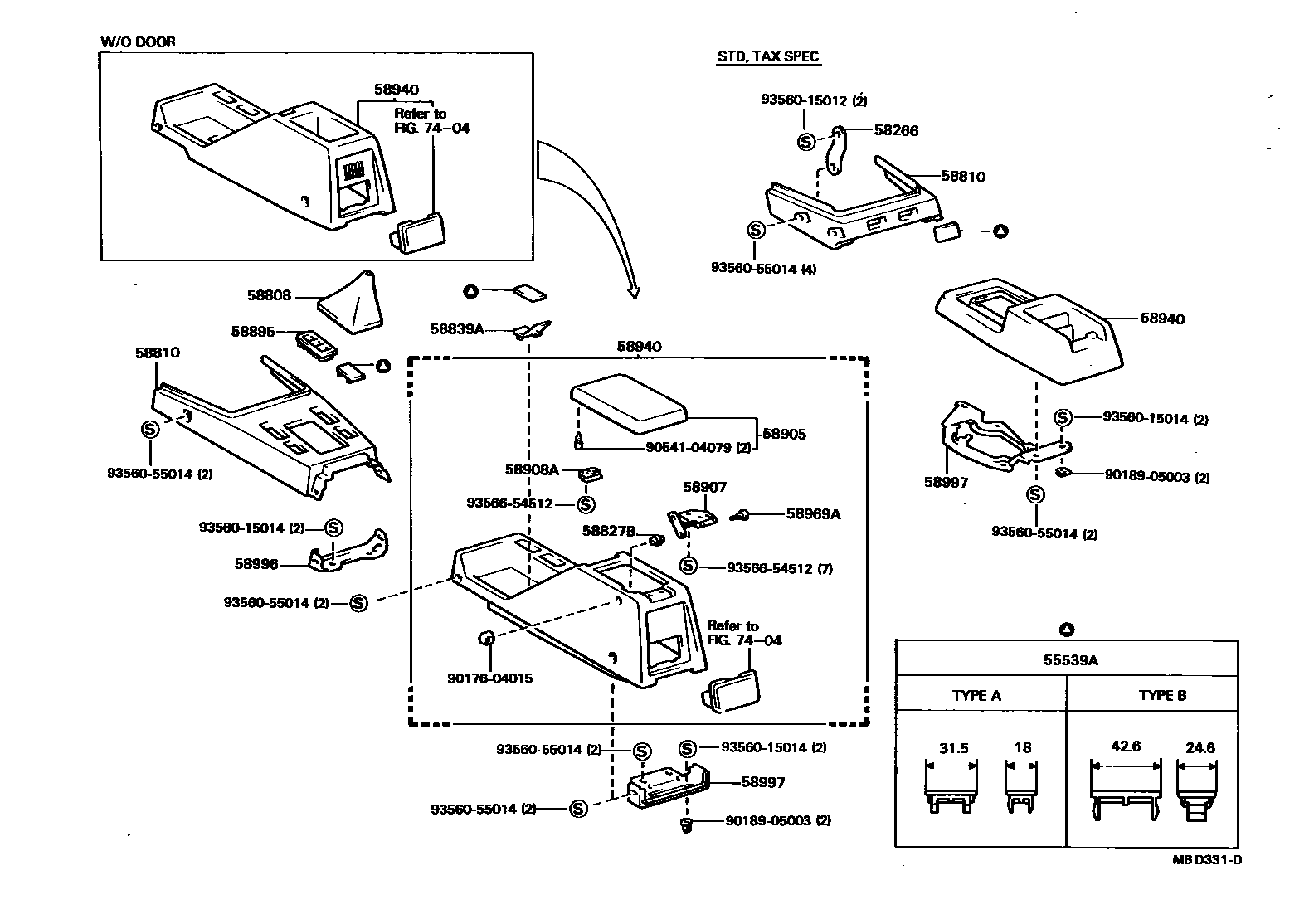

Parts diagram

55539ACOVER, SPARE SWITCH HOLE

58266BRACKET, CONSOLE BOX SUPPORT, FRONT

58808COVER SUB-ASSY, SHIFTING HOLE

58810CONSOLE ASSY

58827BSPACER, CONSOLE COMPARTMENT DOOR STOPPER

58839ACOVER, CONSOLE BOX HOLE

58895COVER, SWITCH HOLE, NO.1

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

58940CONSOLE ASSY, REAR

58969ARETAINER, CONSOLE COMPARTMENT DOOR STOPPER

58996BRACKET, CONSOLE BOX MOUNTING, NO.1

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

7404ASH RECEPTACLE

→ Go to FIG 74-04

9017604015

9018905003

9054104079

9356015012

9356015014

9356055014

9356654512

22 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota CORONA FR

This section contains 22 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota CORONA FR. Key components include: COVER, SPARE SWITCH HOLE, BRACKET, CONSOLE BOX SUPPORT, FRONT, COVER SUB-ASSY, SHIFTING HOLE, CONSOLE ASSY, SPACER, CONSOLE COMPARTMENT DOOR STOPPER.
