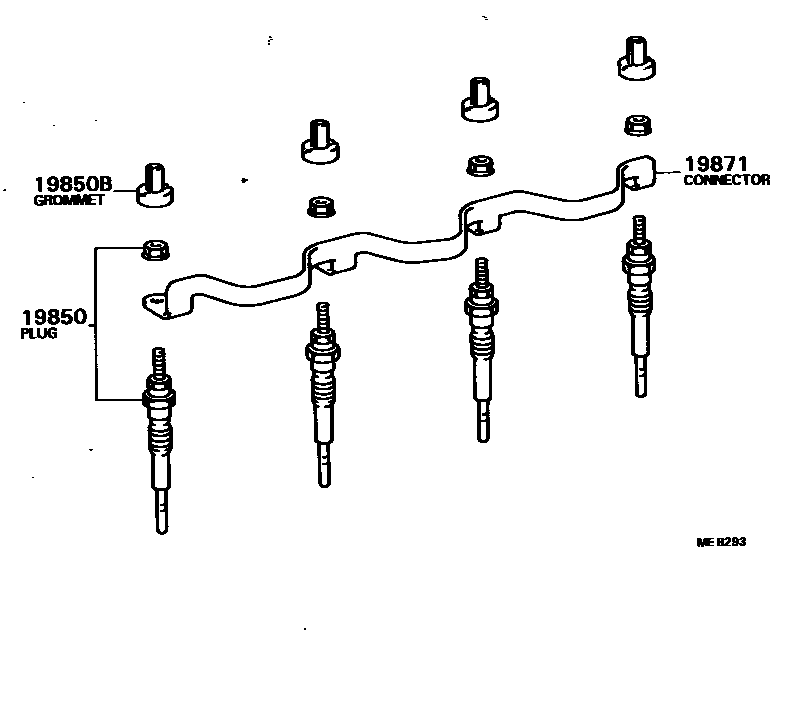

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 MEB271A,MEB674 0003 1 0004 1 0005 1 0006 1 0008 1

19850PLUG ASSY, GLOW

main19850-64010i2C..CT141198601-198612

*BV-GV=12V-7V,*12V-7V

main19850-64030i2C..CT141198612-198808

*BV-GV=12V-11V,*12V-11V

sub19850-64031

main19850-64031i2C..CT141198808-199907

*BV-GV=12V-11V,*12V-11V

main19850-68010i1C..CT140198201-198312

*BV-GV=12V-10.5V,*12V-1.5V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024i1C..CT140198201-199907

19871CONNECTOR, GLOW PLUG NO.1

main19871-64010i1C..CT140198201-198312

sub19871-64021

main19871-64021i2C..CT141198601-199006

sub19871-64022

main19871-64022i2C..CT141199006-199405

sub19871-64023

main19871-64023i2C..CT141199405-199509

sub19871-64024

main19871-64024i2C..CT141199509-199905

sub19871-64025

main19871-64025i2C..CT141199905-199907

3 parts on this diagram · 7 diagrams in section
