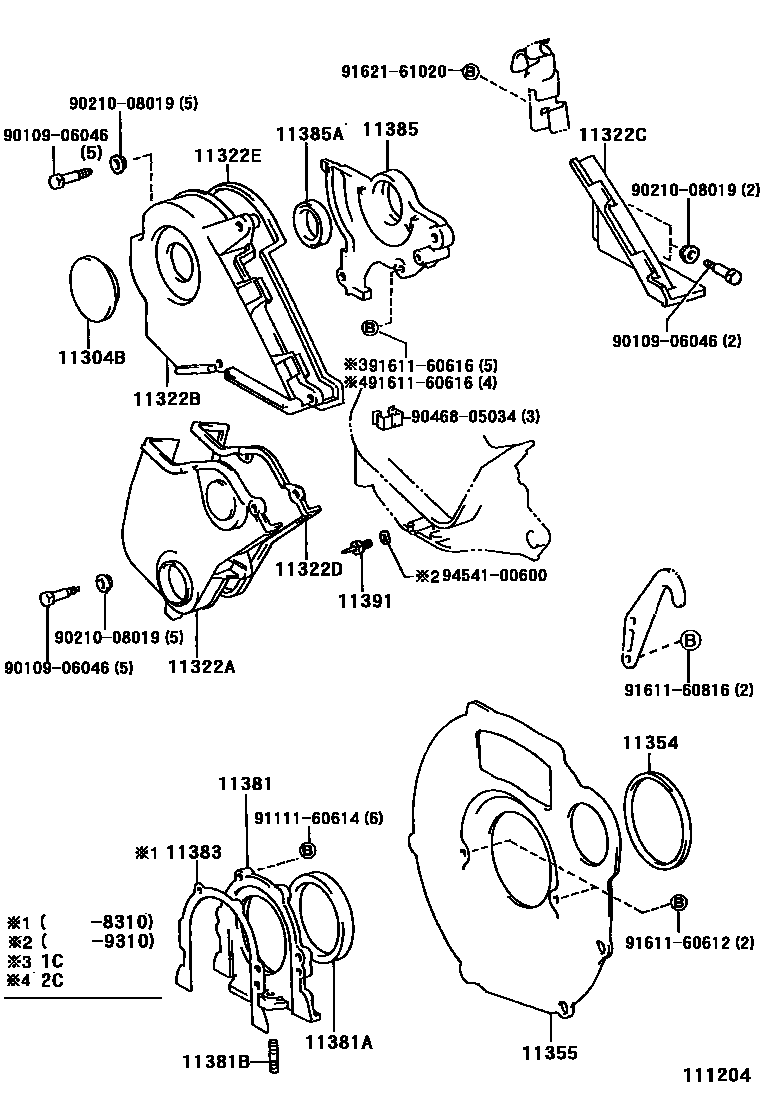

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

11304COVER, TIMING CHAIN OR BELT, NO.2

main11303-63010i2S#..ST141198304-198612

11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)

main90950-01334i2S#..ST141198304-198612

main90950-01357i1C..CT140198201-198312

OD=64

11322ACOVER, TIMING BELT, NO.1

main11321-64010i2C..CT141198601-199811

main11321-64011i2C..CT141199811-199907

11322BCOVER, TIMING BELT, NO.2

main11322-64010i1C..CT140198201-198312

11322CCOVER, TIMING BELT, NO.3

main11323-64010i1C..CT140198201-198312

main11323-64011i2C..CT141198601-199907

11322DGASKET, TIMING BELT COVER, NO.1

main11328-64020i2C..CT141198601-199907

11322EGASKET, TIMING BELT COVER, NO.2

main11329-64020i1C..CT140198201-198312

11354SEAL, FLYWHEEL HOUSING DUST

main11354-64010i1C..CT140198201-198312

main11354-71010i2Y..YT140198612-199907

11355PLATE, REAR END

main11355-25012i2T,3T..TT14#..MTM198201-198508

main11355-25023i3T..TT141..3FC198201-198508

main11355-35010i22REC..RT142..5F198408-198612

main11355-35020i22REC..RT142..4FC198408-198412

main11355-35030i22REC..RT142..4FC198412-198612

main11355-63010i2S#..ST141198304-198612

main11355-64010i1C..CT140198201-198312

main11355-64011i2C..CT141198601-199907

main11355-71010i2Y..YT140198612-199907

11381RETAINER, ENGINE REAR OIL SEAL

main11381-25010i2T,3T..TT14#198201-198508

main11381-38010i22REC..RT142198408-198612

main11381-63010i2S#..ST141198304-198607

main11381-63011i2S#..ST141198607-198612

main11381-64010i1C..CT140198201-198310

main11381-64011i1C..CT140198310-198312

main11381-64012i2C..CT141198601-199812

main11381-64020i2C..CT141199812-199907

main11381-71010i2Y..YT140198612-199907

11381ASEAL, ENGINE REAR OIL

main90311-75113i2T,3T..TT14#198201-198508

main90311-80003i2Y..YT140198612-199907

main90311-80004i22REC..RT142198408-198612

main90311-85003i2S#..ST141198304-198612

main90311-90002i1C..CT140198201-198312

main90311-90003i2C..CT141198601-199002

main90311-90008i2C..CT141199002-199907

11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)

main90116-06022×2i2S#..ST141198304-198607

main90116-06033×2i2C..CT141198601-199110

main90116-06134×2i2C..CT141199110-199907

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-25010i2Y..YT140198612-198912

main11383-35010i22REC..RT142198408-198612

main11383-63010i2S#..ST141198304-198612

main11383-64010i1C..CT140198201-198310

main11383-71010i2Y..YT140198912-199710

main11383-73010i2Y..YT140199710-199907

11385RETAINER, CAMSHAFT OIL SEAL

main11382-63010i2S#..ST141198304-198612

main11382-64010i1C..CT140198201-198312

main11382-64011i2C..CT141198601-199907

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-38017i1C..CT140; 2S#..ST141198201-199907

main90311-38025i2C..CT141198601-199010

main90311-38044i2C..CT141199010-199611

main90311-38061i2C..CT141199611-199907

11391POINTER, TIMING

main11391-31021i12RM..RT140198206-198312

main11391-64010i2C..CT141198601-199907

9010906046

main90109-06046

9021008019

main90210-08019

9046805034

main90468-05034

9111160614

main91111-60614

9161160612

main91611-60612

9161160616

main91611-60616

9161160816

main91611-60816

9162161020

main91621-61020

9454100600

main94541-00600

25 parts on this diagram · 7 diagrams in section
