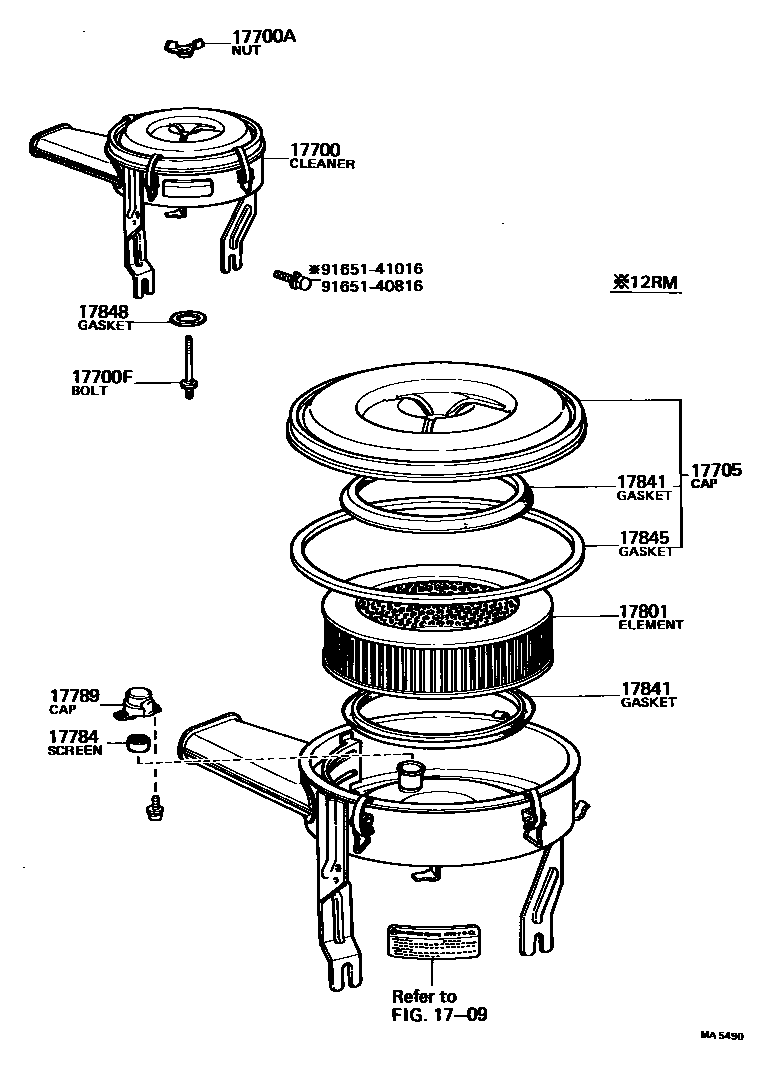

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1709

17700CLEANER ASSY, AIR

main17700-26201i2T,3T..TT13#..GEN197809-198112

W/O HOT AIR INTAKE

sub17700-26290

main17700-26211i2T,3T..TT13#197809-198112

W/HOT AIR INTAKE

main17700-31262i12RM..RT130197809-198112

main17700-31360i12R..RT130197809-197908

sub17700-31361

main17700-31380i12R..RT130197809-197908

W/HOT AIR INTAKE

sub17700-31381

main17700-34550i18R..RT132197908-198205

W/O HOT AIR INTAKE

main17700-34630i18RC..RT132197908-198108

main17700-36190i18R..RT132197809-197908

W/O HOT AIR INTAKE

main17700-37110i21RC..RT133198108-198301

sub17700-37130

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i2T,3T..TT13#197809-198301

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

main90116-06020i21RC..RT133198108-198301

main90116-06142i3T..TT132197809-198112

main90116-06143i18R#..RT132197809-198205

main90116-06222i2T..TT133197908-198112

17705CAP SUB-ASSY, AIR CLEANER

main17705-25012i2T,3T..TT13#197809-198112

main17705-31032i12R#..RT130197809-198110

WHITE

main17705-31033i12RM..RT130198110-198112

BLACK

main17705-34190i18R#..RT132197809-198205

main17705-35060i21RC..RT133198108-198301

17784SCREEN, AIR CLEANER

main17784-31010i12R#,18R#..RT130,132197809-198205

17789CAP, AIR CLEANER SCREEN

main17789-31020i12R#..RT130197809-198112

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-25010i2T,3T..TT13#197809-198112

main17801-31080i12RM..RT130198103-198112

DUST AREA

main17801-34060i18R#..RT132197809-198205

main17801-37010i21RC..RT133198108-198301

sub17801-41090

17841GASKET, FILTER ELEMENT

main17841-31020×2i2T,3T..TT13#197809-198112

main17841-33011×2i18R#..RT132197809-198205

main17841-41050×2i21RC..RT133198108-198301

17845GASKET, AIR CLEANER CAP

main17845-25010i2T,3T..TT13#197809-198112

sub17845-42010

main17845-31020i12R#..RT130197809-197910

main17845-33011i18R#..RT132197809-198205

sub17845-42010

main17845-35010i21RC..RT133198108-198301

sub17845-61011

17848GASKET, AIR CLEANER TO CARBURETOR

main17848-35010i21RC..RT133198108-198301

main90430-63187i2T,3T..TT13#197809-197910

main90430-72003i18R#..RT132197908-198205

main90430-72114i18R..RT132197809-197908

9165140816

main91651-40816

9165141016

main91651-41016

13 parts on this diagram · 6 diagrams in section
