MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-20120iRT10#,112,116,117,118..ARL,GEN197308-197401

main87810-20121iRT10#,11#..ARL,GEN,PHL; RT102..SA197401-197701

main87810-20130-01iRT104,114..SA197308-197509

BLACK,BLACK,TRIM2#

main87810-20130-03iRT104,114..SA197308-197701

GRAY,GRAY,TRIM1#

main87810-20140iRT102,104,117,118..EUR197308-197410

main87810-20140-03iRT102,104,117,118..EUR197410-197701

GRAY,GRAY,TRIM1#

main87810-20141iRT104,118..STD..EUG197701-197803

main87810-20142iRT104,118..STD..EUG197803-197808

main87810-22140iRT100,104,11#..ARL,GEN,PHL; RT102197701-197905

main87810-22160iRT104,118..EUR197701-197803

NON GLARE TYPE

main87810-22161iRT104,118..EUR197803-197808

NON GLARE TYPE

main87810-23020iRT104..SA197701-197905

NON GLARE TYPE

87816SPRING, INNER REAR VIEW MIRROR

main74372-30020iRT10#,11#197308-197701

main74372-30030iRT10#,11#197701-197905

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-22010iRT104,114..SA197308-197701

NON GLARE TYPE

main87828-23010iRT10#,11#..ARL,GEN,PHL,SA197401-197701

87829HOLDER, INNER REAR VIEW MIRROR STAY

main87829-12030iRT102,104,117,118..EUR197308-197701

main87829-20020iRT10#,11#..ARL,GEN,PHL,SA197308-197701

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-12010-13iRT104,118..EUR197701-197803

GRAY,GRAY,TRIM1#,2#

main87834-12010-15iRT104,118..EUR197701-197803

BEIGE,BEIGE,TRIM4#

main87834-14011-01iRT102,104,117,118..EUR197409-197410

BLACK,BLACK,TRIM2#

main87834-14011-03iRT102,104,117,118..EUR197410-197701

GRAY,GRAY,TRIM1#

main87834-20070-01iRT104,114..SA197308-197509

BLACK,BLACK,TRIM2#

main87834-20070-03iRT10#,11#..ARL,GEN,PHL,SA197308-197701

GRAY,GRAY,TRIM1#

main87834-20070-13iRT10#,11#..ARL,GEN,PHL,SA197701-197905

GRAY,GRAY,TRIM1#,2#

main87834-20070-15iRT10#,11#..ARL,GEN,PHL,SA197701-197905

BEIGE,BEIGE,TRIM4#

main87834-22040-03iRT104,118..EUR197803-197808

GRAY,GRAY,TRIM1#,2#

main87834-22040-05iRT104,118..EUR197803-197808

BEIGE,BEIGE,TRIM4#

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-20170iRT104,118..ARL197308-197510

DOOR TYPE,FLAT MIRROR

main87910-20171iRT102,104,114,118..ARL,SA197603-197701

DOOR TYPE,FLAT MIRROR

main87910-20200iRT104,114,118..RHD197707-197808

DOOR TYPE,CONVEX MIRROR

main87910-20210iRT118..EUR197701-197808

DOOR TYPE,CONVEX MIRROR

main87910-20220iRT102,104,114,118..ARL,SA197701-197707

DOOR TYPE,FLAT MIRROR

main87910-20221iRT102,104,114,118..ARL,SA197707-197905

DOOR TYPE,FLAT MIRROR

main87910-29155iRT10#,112,114,116,117,118..EUR,GEN197308-197701

FENDER THINNESS TYPE

main87910-29165iRT104..4F..SA197308-197603

FENDER SPORTS TYPE

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-20010iRT104;RT102..EUR,GEN197308-197603

THINNESS TYPE

main87911-20020iRT104..4F..SA197308-197603

SPORTS TYPE

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-20150iRT104..EUR197701-197707

DOOR TYPE,CONVEX MIRROR

main87940-20160iRT118..EUR197701-197808

DOOR TYPE,CONVEX MIRROR

main87940-29135iRT10#,112,114,116,117,118..EUR,GEN197308-197701

FENDER THINNESS TYPE

main87940-29145iRT104..4F..SA197308-197603

FENDER SPORTS TYPE

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-20010iRT102..SA197308-197603

THINNESS TYPE

main87941-20020iRT104..4F..SA197308-197603

SPORTS TYPE

9323965025

main93239-65025

9331915016

main93319-15016

9411040600

main94110-40600

9452400500

main94524-00500

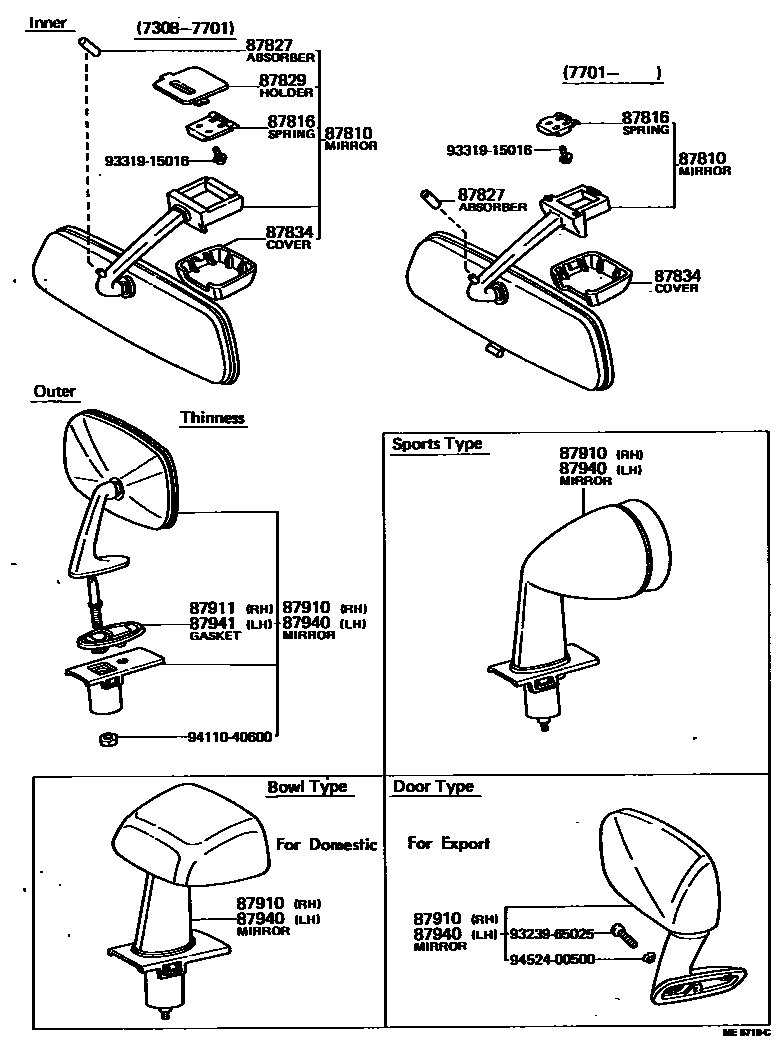

13 parts on this diagram · 1 diagram in section
