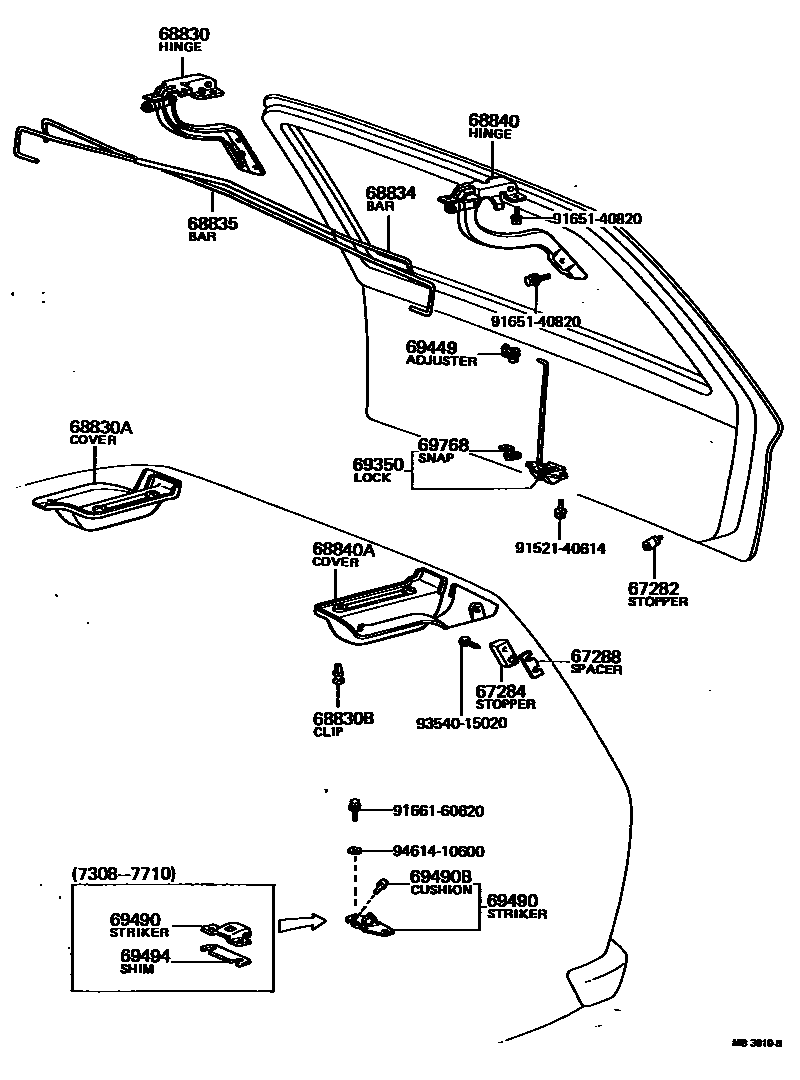

BACK DOOR LOCK & HANDLE
67282STOPPER, BACK DOOR, NO.1
67284STOPPER, BACK DOOR, NO.2
67288SPACER, BACK DOOR SIDE STOPPER, UPPER
68830HINGE ASSY, BACK DOOR, RH
68830ACOVER, BACK DOOR HINGE, RH
sub68841-21020
68830BCLIP(FOR BACK DOOR HINGE COVER SET)
68835BAR, BACK DOOR TORSION, LH
68840HINGE ASSY, BACK DOOR, LH
FOR W/REAR WIPER
68840ACOVER, BACK DOOR HINGE, LH
sub68842-21020
69350LOCK ASSY, BACK DOOR
69449ADJUSTER, BACK DOOR LOCK CONTROL LINK
69490STRIKER ASSY, BACK DOOR LOCK
69490BCUSHION(FOR BACK DOOR LOCK STRIKER)
sub90541-06019
69494SHIM, BACK DOOR LOCK STRIKER
T=1.0
69768SNAP, BACK DOOR LOCK CONTROL LINK
9152140614
main91521-40614
9165140820
main91651-40820
9166160620
main91661-60620
9354015020
main93540-15020
9461410600
main94614-10600
21 parts on this diagram · 1 diagram in section
