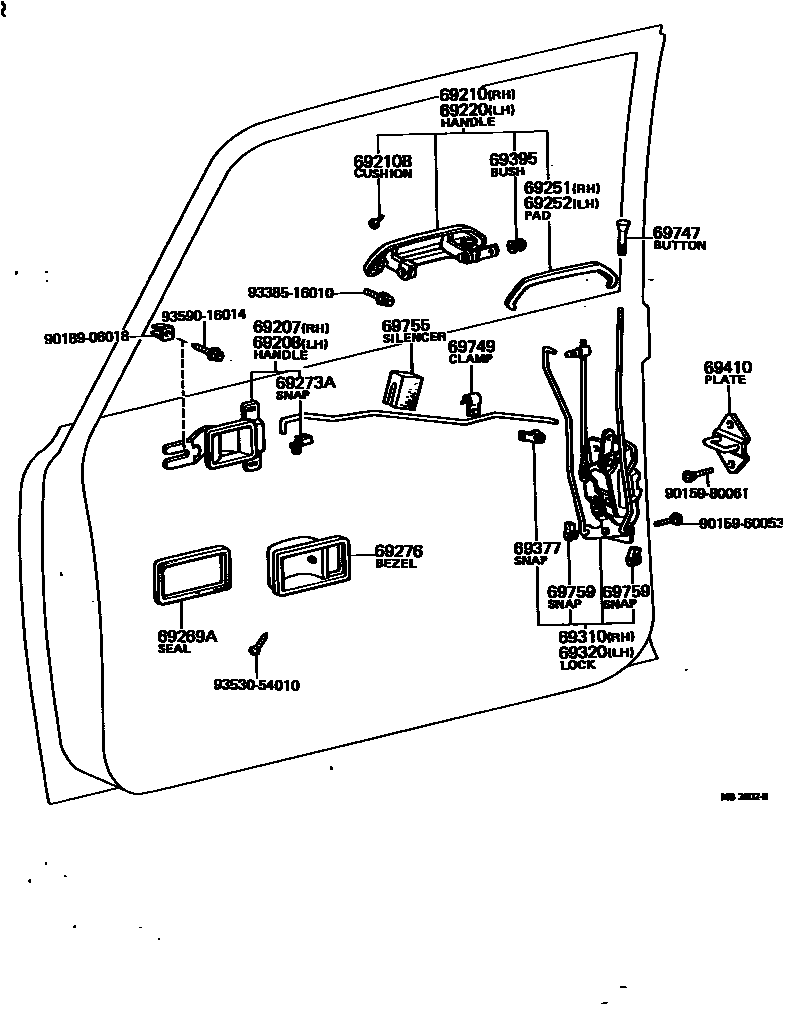

FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69251PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH
69252PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH
69269ASEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR)
FOR ARCTIC
69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
69276BEZEL, FRONT DOOR INSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69377SNAP, FRONT DOOR LOCK CONTROL ROD
69395BUSH(FOR DOOR OUTSIDE HANDLE)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69749CLAMP, FRONT DOOR LOCK LINK
69755SILENCER, FRONT DOOR LOCK LINK
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
9015960053
main90159-60053
9015980061
main90159-80061
9018906018
main90189-06018
9338516010
main93385-16010
9353054010
main93530-54010
9359016014
main93590-16014
25 parts on this diagram · 2 diagrams in section
