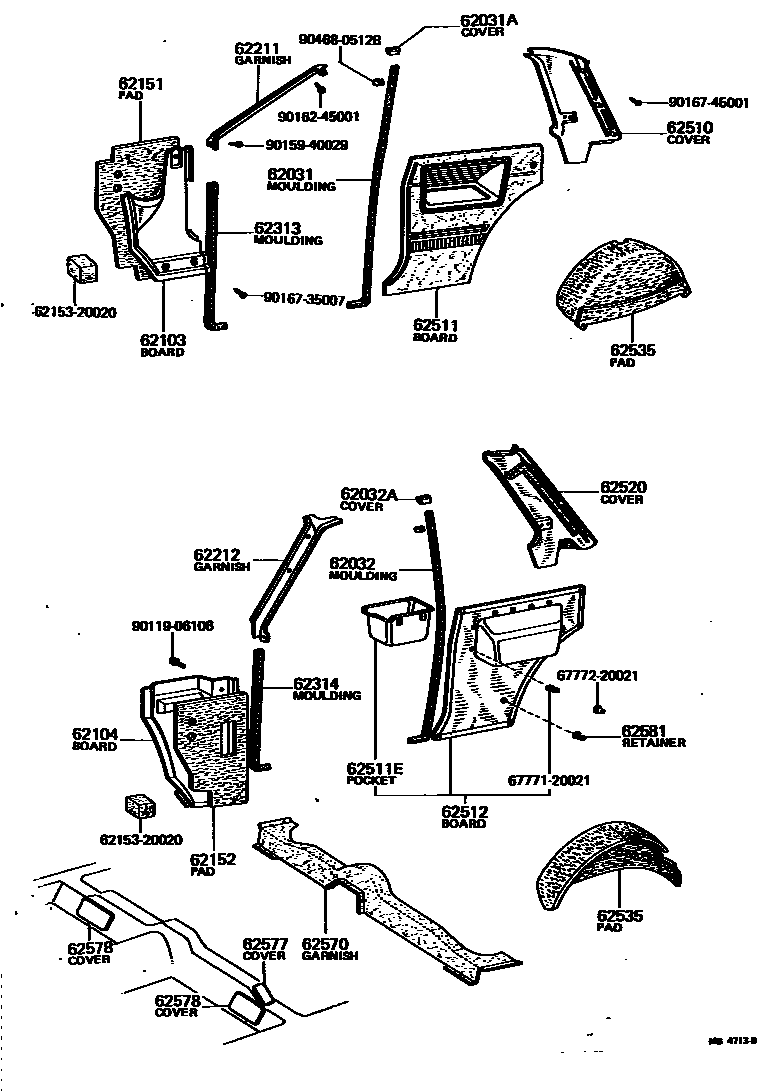

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1 0003 1 0004 1 0005 1

62031MOULDING SUB-ASSY, FRONT DOOR OPENING TRIM, RH

main62314-20020-01iRT10#..EUR,GEN,PHL197308-197701

BLACK,BLACK,TRIM2#

sub62314-20020

main62314-20020-03iRT100,102..EUR,GEN197308-197408

GRAY,GRAY,TRIM1#

sub62314-20020

main62314-20020-04iRT100,102..EUR,GEN197308-197408

BLUE,BLUE,TRIM8#

sub62314-20020

main62314-20020-05iRT100,104..ARL,EUR,GEN,PHL197509-197701

BEIGE,BEIGE,TRIM4#

sub62314-20020

main62314-20020-06iRT100,104..ARL,EUR,GEN,PHL197308-197701

OLIVE-BROWN,BROWN,TRIM4#

sub62314-20020

main62314-20020-11iRT100,104..ARL,EUR,GEN197701-197905

BLACK,BLACK,TRIM2#

sub62314-20020

main62314-20020-13iRT100,104..ARL,EUR,GEN197701-197905

GRAY,GRAY,TRIM1#

sub62314-20020

main62314-20020-15iRT100,104..ARL,EUR,GEN197701-197905

BEIGE,BEIGE,TRIM4#

sub62314-20020

main62314-21010-01iRT102,104..ARL,SA197308-197506

BLACK,BLACK,TRIM2#

sub62314-21010

main62314-21010-03iRT116,117,118197308-197506

GRAY,GRAY,TRIM1#

sub62314-21010

main62314-21011-01iRT102,104..ARL,SA197506-197509

BLACK,BLACK,TRIM2#

main62314-21011-01iRT10#..ARL,GEN,PHL,SA197509-197701

HANGING CLOTH LINING,BLACK,BLACK,TRIM2#

main62314-21011-03iRT116,117,118197506-197701

GRAY,GRAY,TRIM2#,4#

main62314-21011-11iRT116,118197701-197905

BLACK,BLACK,TRIM2#

main62314-21011-13iRT116,118197701-197905

GRAY,GRAY,TRIM1#

main62314-21011-15iRT116,118197701-197905

BEIGE,BEIGE,TRIM4#

62031ACOVER, FRONT DOOR OPENING, RH

main62345-20010-01iRT100,102..EUR,GEN197308-197402

BLACK,BLACK,TRIM2#

sub62345-20012

main62345-20010-03iRT100,102..EUR,GEN197308-197402

GRAY,GRAY,TRIM1#,4#,8#

sub62345-20012

main62345-20011-01iRT10#..EUR,GEN197402-197504

BLACK,BLACK,TRIM2#

sub62345-20012

main62345-20011-03iRT100,102..EUR,GEN197402-197408

GRAY,GRAY,TRIM1#,4#,8#

sub62345-20012

main62345-20011-04iRT100,102..EUR,GEN197402-197408

BLUE,BLUE,TRIM8#

sub62345-20012

main62345-20011-06iRT10#..EUR,GEN197402-197504

OLIVE-BROWN,BROWN,TRIM4#

sub62345-20012

main62345-20012-01iRT10#..EUR,GEN,PHL197504-197701

BLACK,BLACK,TRIM2#

main62345-20012-05iRT100,104..EUR,GEN,PHL197509-197701

BEIGE,BEIGE,TRIM4#

main62345-20012-06iRT10#..EUR,GEN,PHL197504-197701

OLIVE-BROWN,BROWN,TRIM4#

main62345-20012-11iRT100,104..ARL,EUR,GEN197701-197905

BLACK,BLACK,TRIM2#

main62345-20012-13iRT100,104..ARL,EUR,GEN197701-197905

GRAY,GRAY,TRIM1#

main62345-20012-15iRT100,104..ARL,EUR,GEN197701-197905

BEIGE,BEIGE,TRIM4#

62032MOULDING SUB-ASSY, FRONT DOOR OPENING TRIM, LH

main62314-20020-01iRT10#..EUR,GEN,PHL197308-197701

BLACK,BLACK,TRIM2#

sub62314-20020

main62314-20020-03iRT100,102..EUR,GEN197308-197408

GRAY,GRAY,TRIM1#

sub62314-20020

main62314-20020-04iRT100,102..EUR,GEN197308-197408

BLUE,BLUE,TRIM4#

sub62314-20020

main62314-20020-05iRT100,104..ARL,EUR,GEN,PHL197509-197701

BEIGE,BEIGE,TRIM4#

sub62314-20020

main62314-20020-06iRT10#..EUR,GEN,PHL197308-197701

OLIVE-BROWN,BROWN,TRIM4#

sub62314-20020

main62314-20020-11iRT100,104..ARL,EUR,GEN197701-197905

BLACK,BLACK,TRIM2#

sub62314-20020

main62314-20020-13iRT100,104..ARL,EUR,GEN197701-197905

GRAY,GRAY,TRIM1#

sub62314-20020

main62314-20020-15iRT100,104..ARL,EUR,GEN197701-197905

BEIGE,BEIGE,TRIM4#

sub62314-20020

main62314-21010-01iRT102,104..ARL,SA197308-197506

BLACK,BLACK,TRIM2#

sub62314-21010

main62314-21010-03iRT116,117,118197308-197506

GRAY,GRAY,TRIM1#

sub62314-21010

main62314-21011-01iRT102,104..ARL,SA197506-197509

BLACK,BLACK,TRIM2#

main62314-21011-01iRT10#..ARL,GEN,PHL,SA197509-197701

HANGING CLOTH LINING,BLACK,BLACK,TRIM2#

main62314-21011-03iRT116,117,118197506-197701

GRAY,GRAY,TRIM2#,4#

main62314-21011-11iRT10#..ARL,GEN,PHL,SA197701-197905

BLACK,BLACK,TRIM2#

main62314-21011-13iRT10#..ARL,GEN,PHL,SA197701-197905

GRAY,GRAY,TRIM1#

main62314-21011-15iRT116,118197701-197905

BEIGE,BEIGE,TRIM4#

62032ACOVER, FRONT DOOR OPENING, LH

main62344-20010-01iRT100,102..EUR,GEN197308-197402

BLACK,BLACK,TRIM2#

sub62344-20012

main62344-20010-03iRT100,102..EUR,GEN197308-197402

GRAY,GRAY,TRIM1#,4#,8#

sub62344-20012

main62344-20011-01iRT10#..EUR,GEN197402-197504

BLACK,BLACK,TRIM2#

sub62344-20012

main62344-20011-03iRT100,102..EUR,GEN197402-197408

GRAY,GRAY,TRIM1#,4#,8#

sub62344-20012

main62344-20011-04iRT100,102..EUR,GEN197402-197408

BLUE,BLUE,TRIM4#

sub62344-20012

main62344-20011-06iRT10#..EUR,GEN197402-197504

OLIVE-BROWN,BROWN,TRIM4#

sub62344-20012

main62344-20012-01iRT100,104..ARL,EUR,GEN,PHL197504-197701

BLACK,BLACK,TRIM2#

main62344-20012-05iRT100,104..ARL,EUR,GEN,PHL197509-197701

BEIGE,BEIGE,TRIM4#

main62344-20012-06iRT10#..EUR,GEN,PHL197504-197701

OLIVE-BROWN,BROWN,TRIM4#

main62344-20012-11iRT100,104..ARL,EUR,GEN197701-197905

BLACK,BLACK,TRIM2#

main62344-20012-13iRT100,104..ARL,EUR,GEN197701-197905

GRAY,GRAY,TRIM1#

main62344-20012-15iRT100,104..ARL,EUR,GEN197701-197905

BEIGE,BEIGE,TRIM4#

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62111-20080iRT10#,112,114,116,117,118..RHD197308-197701

main62111-20081-01iRT10#,11#..RHD197701-197905

BLACK,BLACK,TRIM2#

main62111-20081-03iRT100,104,116,118..GEN,PHL,SA197701-197905

GRAY,GRAY,TRIM1#

main62111-20081-05iRT100,104,116,118..GEN,PHL,SA197701-197905

BEIGE,BEIGE,TRIM4#

main62111-20090iRT100..LHD..3H..DLX197509-197808

FOR PARKING BRAKE STICK TIPE

main62111-20090iRT116,117,118..LHD197308-197701

FOR W/HEATER

main62111-20100iRT100,102..LHD..STD197308-197509

FOR L/HEATER

sub62111-20080

main62111-20120-01iRT116,118..LHD197509-197905

BLACK,BLACK,TRIM2#

main62111-20120-03iRT100,104,11#..LHD197701-197905

GRAY,GRAY,TRIM1#

main62111-20120-05iRT116,118..LHD197509-197701

BEIGE,BEIGE,TRIM4#

main62111-20120-06iRT116,118..LHD197509-197701

BROWN,BROWN,TRIM4#

main62111-20120-15iRT100,104,11#..LHD197701-197905

BEIGE,BEIGE,TRIM4#

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62112-20070iRT10#,112,114,116,117,118..RHD197308-197701

FOR W/HEATER

main62112-20071-01iRT10#,11#..RHD197701-197905

BLACK,BLACK,TRIM2#

main62112-20071-03iRT10#,11#..RHD197701-197905

GRAY,GRAY,TRIM1#

main62112-20071-05iRT10#,11#..RHD197701-197905

BEIGE,BEIGE,TRIM4#

main62112-20080iRT10#,110,112,116,117,118..LHD197308-197505

sub62112-20110

main62112-20090iRT100..RHD..3H..STD197308-197509

FOR L/HEATER

sub62112-20080

main62112-20100-01iRT116,118..LHD197509-197905

BLACK,BLACK,TRIM2#

sub62112-20100

main62112-20100-03iRT100,104,116,118..GEN,PHL,SA197701-197905

GRAY,GRAY,TRIM1#

sub62112-20100

main62112-20100-05iRT100,104..LHD..DLX197509-197701

BEIGE,BEIGE,TRIM4#

sub62112-20100

main62112-20100-06iRT116,118..LHD197509-197701

BROWN,BROWN,TRIM4#

sub62112-20100

main62112-20100-15iRT100,104,11#..LHD197701-197905

BEIGE,BEIGE,TRIM4#

sub62112-20100

main62112-20110iRT110197509-197701

FOR PARKING BRAKE STICK TIPE

main62112-20110iRT10#,110,112,116,117,118..LHD197505-197509

62151PAD, COWL SIDE SILENCER, NO.1

main62105-20010iRT10#,11#..RHD197701-197905

main62105-20020iRT100,104,11#..LHD197701-197905

main62151-20050iRT10#,11#197308-197701

62152PAD, COWL SIDE SILENCER, NO.2

main62106-20010iRT10#,11#..RHD197701-197905

main62106-20020iRT100,104,11#..LHD197701-197905

main62151-20050iRT10#,112,116,117,118..RHD197308-197409

main62152-20040iRT10#,11#..LHD197308-197701

main62152-20060iRT10#,112,114,116,117,118..RHD197409-197701

62211GARNISH, FRONT PILLAR, RH

main62211-20050-03iRT110,112,114197308-197509

GRAY

sub62211-95501

main62211-20070iRT100,102..EUR,GEN197308-197404

sub62211-20071

main62211-20071iRT100,102..EUR,GEN197404-197509

main62211-20071-03iRT100,104..EUR,GEN197509-197701

GRAY

sub62211-20071

main62211-20071-13iRT100,104..EUR,GEN,PHL197701-197905

GRAY,GRAY,TRIM1#,2#

sub62211-20071

main62211-20071-15iRT100,104..EUR,GEN,PHL197701-197905

BEIGE,BEIGE,TRIM4#

sub62211-20071

main62211-21010iRT116,117,118197308-197403

sub62211-21011

main62211-21011iRT116,117,118197403-197506

sub62211-21012

main62211-21012iRT10#..ARL,GEN,PHL,SA197509-197701

FOR HANGING CLOTHLINING

main62211-21012iRT116,117,118197506-197509

main62211-21012iRT10#..ARL,GEN,PHL,SA197509-197701

FOR HANGING CLOTH LINING

main62211-21012-01iRT116,118197701-197905

BLACK,BLACK,TRIM2#

sub62211-21012

main62211-21012-05iRT10#..ARL,GEN,PHL,SA197701-197905

BEIGE,BEIGE,TRIM4#

sub62211-21012

main62211-21012-13iRT10#..ARL,GEN,PHL,SA197701-197905

GRAY,GRAY,TRIM1#

sub62211-21012

main62211-95501-03iRT110,114197509-197510

GRAY

sub62211-95502

main62211-95502-03iRT110,114197510-197701

GRAY

sub62211-95502

main62211-95502-13iRT114197701-197808

GRAY,GRAY,TRIM1#,2#

sub62211-95502

main62211-95502-15iRT114197701-197808

BEIGE,BEIGE,TRIM4#

sub62211-95502

62212GARNISH, FRONT PILLAR, LH

main62212-20050-03iRT110,112,114197308-197509

GRAY

sub62212-95501

main62212-20070iRT100,102..EUR,GEN197308-197404

sub62212-20071

main62212-20071iRT100,102..EUR,GEN197404-197509

main62212-20071-03iRT100,104..EUR,GEN197509-197701

GRAY

sub62212-20071

main62212-20071-13iRT100,104..EUR,GEN,PHL197701-197905

GRAY,GRAY,TRIM1#,2#

sub62212-20071

main62212-20071-15iRT100,104..EUR,GEN,PHL197701-197905

BEIGE,BEIGE,TRIM4#

sub62212-20071

main62212-21010iRT102,104..ARL,SA197308-197403

sub62212-21011

main62212-21011iRT116,117,118197403-197506

sub62212-21012

main62212-21012iRT102,104..ARL,SA197506-197509

main62212-21012iRT116,118197509-197701

FOR HANGING CLOTH LINING

main62212-21012-01iRT116,118197701-197905

BLACK,BLACK,TRIM2#

sub62212-21012

main62212-21012-05iRT116,118197701-197905

BEIGE,BEIGE,TRIM4#

sub62212-21012

main62212-21012-13iRT10#..ARL,GEN,PHL,SA197701-197905

GRAY,GRAY,TRIM1#

sub62212-21012

main62212-95501-03iRT110,114197509-197510

GRAY

sub62212-95502

main62212-95502-03iRT110,114197510-197701

GRAY

sub62212-95502

main62212-95502-13iRT114197701-197808

GRAY,GRAY,TRIM1#,2#

sub62212-95502

main62212-95502-15iRT114197701-197808

BEIGE,BEIGE,TRIM4#

sub62212-95502

62313MOULDING, FRONT DOOR OPENING TRIM, RH

main62313-20030-01iRT10#197308-197701

BLACK,BLACK,TRIM2#

sub62313-20030

main62313-20030-03iRT10#,116,117,118197308-197512

GRAY,GRAY,TRIM1#,2#,4#

sub62313-20030

main62313-20030-03iRT11#197512-197701

GRAY,GRAY,TRIM1#

sub62313-20030

main62313-20030-04iRT10#197308-197408

BLUE,BLUE,TRIM8#

sub62313-20030

main62313-20030-05iRT10#,110,114197509-197701

BEIGE,BEIGE,TRIM4#

sub62313-20030

main62313-20030-06iRT10#197308-197701

OLIVE-BROWN,BROWN,TRIM4#

sub62313-20030

main62313-20030-11iRT10#,11#197701-197905

BLACK,BLACK,TRIM2#

sub62313-20030

main62313-20030-13iRT10#,114197701-197905

GRAY,GRAY,TRIM1#

sub62313-20030

main62313-20030-15iRT10#,11#197701-197905

BEIGE,BEIGE,TRIM4#

sub62313-20030

main62313-20040-01iRT110,112,114197308-197512

BLACK,BLACK,TRIM2#

sub62313-20030

main62313-20040-03iRT110,112,114197308-197408

GRAY,GRAY,TRIM1#

sub62313-20030

main62313-20040-04iRT110,112,114197308-197408

BLUE,BLUE,TRIM8#

sub62313-20030

main62313-20040-05iRT110,114197509-197512

BEIGE,BEIGE,TRIM4#

sub62313-20030

main62313-20040-06iRT110,112,114197308-197512

OLIVE-BROWN,BROWN,TRIM4#

sub62313-20030

62314MOULDING, FRONT DOOR OPENING TRIM, LH

main62313-20030-01iRT10#,110,114197308-197701

BLACK,BLACK,TRIM2#

sub62313-20030

main62313-20030-03iRT10#,116,117,118197308-197512

GRAY,GRAY,TRIM1#,2#,4#

sub62313-20030

main62313-20030-03iRT11#197512-197701

GRAY,GRAY,TRIM1#

sub62313-20030

main62313-20030-04iRT10#197308-197408

BLUE,BLUE,TRIM8#

sub62313-20030

main62313-20030-05iRT10#197509-197701

BEIGE,BEIGE,TRIM4#

sub62313-20030

main62313-20030-06iRT10#197308-197701

OLIVE-BROWN,BROWN,TRIM4#

sub62313-20030

main62313-20030-11iRT10#,11#197701-197905

BLACK,BLACK,TRIM2#

sub62313-20030

main62313-20030-13iRT10#,114197701-197905

GRAY,GRAY,TRIM1#

sub62313-20030

main62313-20030-15iRT10#,11#197701-197905

BEIGE,BEIGE,TRIM4#

sub62313-20030

main62313-20040-01iRT110,112,114197308-197512

BLACK,BLACK,TRIM2#

sub62313-20030

main62313-20040-03iRT110,112,114197308-197408

GRAY,GRAY,TRIM1#

sub62313-20030

main62313-20040-04iRT110,112,114197308-197408

BLUE,BLUE,TRIM8#

sub62313-20030

main62313-20040-05iRT110,114197509-197512

BEIGE,BEIGE,TRIM4#

sub62313-20030

main62313-20040-06iRT110,112,114197308-197512

OLIVE-BROWN,BROWN,TRIM4#

sub62313-20030

62510COVER ASSY, BACK WINDOW SIDE GARNISH, RH

main62470-20020iRT102,104..ARL,SA197504-197509

main62470-20020iRT10#..ARL,GEN,PHL,SA197509-197701

FOR HANGING CLOTH LINING

main62470-20021-03iRT10#..ARL,GEN,PHL,SA197701-197905

FOR HANGING CLOTH LINING,GRAY,GRAY,TRIM1#

main62470-20021-05iRT10#..ARL,GEN,PHL,SA197701-197905

FOR HANGING CLOTH LINING,BEIGE,BEIGE,TRIM4#

main62519-20040iRT10#..4D197308-197404

sub62519-20041

main62519-20041iRT10#..4D197404-197509

main62519-20041-03iRT100,104..EUR,GEN197509-197701

GRAY,GRAY,TRIM1#,2#

sub62519-20041

main62519-20041-13iRT100,104..ARL,EUR,GEN197701-197905

GRAY,GRAY,TRIM1#

sub62519-20041

main62519-20041-15iRT100,104..ARL,EUR,GEN197701-197905

BEIGE,BEIGE,TRIM4#

sub62519-20041

main62519-20050iRT104..2D197308-197404

sub62519-20051

main62519-20051iRT104..2D197404-197411

main62519-20060-03iRT110,112,114197308-197509

GRAY,GRAY,TRIM1#,2#

sub62519-95500

main62519-20070iRT102,104..4D..(ARL,SA)197406-197504

main62519-95500-03iRT110,114197509-197510

GRAY,GRAY,TRIM1#,2#

sub62519-95501

main62519-95501-03iRT110,114197510-197701

GRAY,GRAY,TRIM1#,2#

sub62519-95501

main62519-95501-13iRT114197701-197808

GRAY,GRAY,TRIM1#,2#

sub62519-95501

main62519-95501-15iRT114197701-197808

BEIGE,BEIGE,TRIM4#

sub62519-95501

62511BOARD, QUARTER INSIDE TRIM, RH

main62051-21030-01iRT116,118..EUR,GEN,PHL197308-197701

FOR W/STEREO,BLACK,BLACK,TRIM2#

sub62051-21050

main62051-21030-05iRT116,118..GEN197701-197905

FOR W/STEREO,BEIGE,BEIGE,TRIM4#

sub62051-21050

main62051-21030-06iRT116,117,118197308-197701

FOR W/STEREO,BROWN,BROWN,TRIM4#

sub62051-21050

main62051-21030-11iRT116,118..GEN197701-197905

FOR W/STEREO,BLACK,BLACK,TRIM2#

sub62051-21050

main62051-21060-01iRT118..EUG197701-197808

FOR W/STEREO&BELT,BLACK,BLACK,TRIM2#

main62051-21060-05iRT118..EUG197701-197808

FOR W/STEREO&BELT,BLACK,BEIGE,TRIM2#

main62510-20130-01iRT110,112,114197407-197511

BLACK,BLACK,TRIM2#

main62510-20130-05iRT110,112,114197407-197511

BEIGE,BEIGE,TRIM4#

main62510-20130-06iRT110,112,114197407-197511

OLIVE-BROWN,BROWN,TRIM4#

main62510-20130-11iRT112,114197308-197407

BLACK,TRIM2#

main62510-20130-13iRT112,114197308-197407

GRAY,TRIM1#

main62510-20130-14iRT112,114197308-197407

BLUE,BLUE,TRIM8#

main62510-20130-16iRT112,114197308-197407

OLIVE-BROWN,TRIM4#

main62510-20180-01iRT104..2D197308-197411

BLACK,BLACK,TRIM2#

main62510-20180-03iRT104..2D197308-197408

GRAY,GRAY,TRIM1#

main62510-20180-04iRT104..2D197308-197408

BLUE,BLUE,TRIM8#

main62510-20180-05iRT104..2D197408-197411

BEIGE,BEIGE,TRIM4#

main62510-20180-06iRT104..2D197308-197411

OLIVE-BROWN,BROWN,TRIM4#

main62510-95506-01iRT110,114197511-197701

BLACK,BLACK,TRIM2#

main62510-95506-05iRT110,114197511-197701

BEIGE,BEIGE,TRIM4#

main62510-95506-06iRT110,114197511-197701

OLIVE-BROWN,BROWN,TRIM4#

main62510-95511-01iRT114197701-197808

BLACK,BLACK,TRIM2#

main62510-95511-03iRT114197701-197808

GRAY,GRAY,TRIM1#

main62510-95511-05iRT114197701-197808

BEIGE,BEIGE,TRIM4#

main62523-21010-01iRT116,117,118197308-197701

BLACK,BLACK,TRIM2#

sub62523-21010

sub62051-21040

main62523-21010-05iRT116,118197701-197905

BEIGE,BEIGE,TRIM4#

sub62523-21010

sub62051-21040

main62523-21010-06iRT116,117,118197308-197701

BROWN,BROWN,TRIM4#

sub62523-21010

sub62051-21040

main62523-21010-11iRT116,118197701-197905

BLACK,BLACK,TRIM2#

sub62523-21010

sub62051-21040

62511EPOCKET, QUARTER TRIM

main62526-12030-01iRT104..2D197308-197411

BLACK,BLACK,TRIM2#

sub62526-12030

main62526-12030-03iRT104..2D197308-197408

GRAY,GRAY,TRIM1#

sub62526-12030

main62526-12030-24iRT104..2D197308-197408

BLUE,BLUE,TRIM4#

sub62526-12030

main62526-12030-36iRT104..2D197308-197411

BROWN,BROWN,TRIM4#

sub62526-12030

62512BOARD, QUARTER INSIDE TRIM, LH

main62052-21030-01iRT116,117,118197308-197701

FOR W/STEREO,BLACK,BLACK,TRIM2#

sub62052-21020

main62052-21030-05iRT116,118..GEN197701-197905

FOR W/STEREO,BEIGE,BEIGE,TRIM4#

sub62052-21020

main62052-21030-06iRT116,118..EUR,GEN,PHL197308-197701

FOR W/STEREO,BROWN,BROWN,TRIM4#

sub62052-21020

main62052-21030-11iRT116,118..GEN197701-197905

FOR W/STEREO,BLACK,BLACK,TRIM2#

sub62052-21020

main62052-21040-01iRT117,118..EUR197403-197701

FOR W/REAR WIPER,BLACK,BLACK,TRIM2#

sub62052-21060

main62052-21040-03iRT117..EUG197403-197408

FOR W/REAR WIPER,GRAY,GRAY,TRIM1#

sub62052-21060

main62052-21040-05iRT118..EUR197701-197808

FOR W/REAR WIPER,BEIGE,BEIGE,TRIM4#

sub62052-21060

main62052-21040-06iRT117,118..EUR197403-197701

FOR W/REAR WIPER,BROWN,BROWN,TRIM4#

sub62052-21060

main62052-21040-11iRT118..EUR197701-197808

FOR W/REAR WIPER,BLACK,BLACK,TRIM2#

sub62052-21060

main62052-21050-01iRT117,118..EUR197403-197701

FOR W/STEREO & RR.WIPER,BLACK,BLACK,TRIM2#

sub62052-21070

main62052-21050-03iRT117..EUG197403-197408

FOR W/STEREO & RR.WIPER,GRAY,GRAY,TRIM1#

sub62052-21070

main62052-21050-06iRT117,118..EUR197403-197701

FOR W/STEREO & RR.WIPER,BROWN,BROWN,TRIM4#

sub62052-21070

main62052-21100-01iRT118..EUR197701-197808

FOR W/REAR WIPER,BLACK,BLACK,TRIM2#

sub62052-21080

main62052-21100-05iRT118..EUR197701-197808

FOR W/REAR WIPER,BEIGE,BEIGE,TRIM4#

sub62052-21080

main62052-21120-01iRT118..EUG197701-197808

FOR W/REAR WIPER&BELT,BLACK,BLACK,TRIM2#

main62052-21120-05iRT118..EUG197701-197808

FOR W/REAR WIPER&BELT,BEIGE,BEIGE,TRIM4#

main62052-21130-01iRT118..EUG197701-197808

FOR W/STEREO&BELT,BLACK,BLACK,TRIM2#

main62052-21130-05iRT118..EUG197701-197808

FOR W/STEREO&BELT,BEIGE,BEIGE,TRIM4#

main62436-95501-13iRT114..SA197701-197905

GRAY,GRAY,TRIM1#

sub62436-95501

main62520-20130-01iRT110,112,114197407-197511

BLACK,BLACK,TRIM2#

main62520-20130-05iRT110,112,114197407-197511

BEIGE,BEIGE,TRIM4#

main62520-20130-06iRT110,112,114197407-197511

OLIVE-BROWN,BROWN,TRIM4#

main62520-20130-11iRT112,114197308-197407

BLACK,TRIM2#

main62520-20130-13iRT112,114197308-197407

GRAY,TRIM1#

main62520-20130-14iRT112,114197308-197407

BLUE,BLUE,TRIM8#

main62520-20130-16iRT112,114197308-197407

OLIVE-BROWN,TRIM4#

main62520-20180-01iRT104..2D197308-197411

BLACK,BLACK,TRIM2#

main62520-20180-03iRT104..2D197308-197408

GRAY,GRAY,TRIM1#

main62520-20180-04iRT104..2D197308-197408

BLUE,BLUE,TRIM8#

main62520-20180-05iRT104..2D197408-197411

BEIGE,BEIGE,TRIM4#

main62520-20180-06iRT104..2D197308-197411

OLIVE-BROWN,BROWN,TRIM4#

main62520-95506-01iRT110,114197511-197701

BLACK,BLACK,TRIM2#

main62520-95506-05iRT110,114197511-197701

BEIGE,BEIGE,TRIM4#

main62520-95506-06iRT110,114197511-197701

OLIVE-BROWN,BROWN,TRIM4#

main62520-95511-01iRT114197701-197808

BLACK,BLACK,TRIM2#

main62520-95511-03iRT114197701-197808

GRAY,GRAY,TRIM1#

main62520-95511-05iRT114197701-197808

BEIGE,BEIGE,TRIM4#

main62524-21010-01iRT116,117,118197308-197701

BLACK,BLACK,TRIM2#

sub62524-21010

sub62052-21010

main62524-21010-05iRT116,118..ARL,GEN,PHL197701-197905

BEIGE,BEIGE,TRIM4#

sub62524-21010

sub62052-21010

main62524-21010-06iRT118..EUG;RT116,118..ARL,GEN,PHL197308-197701

BROWN,BROWN,TRIM4#

sub62524-21010

sub62052-21010

main62524-21010-11iRT116,118..ARL,GEN,PHL197701-197905

BLACK,BLACK,TRIM2#

sub62524-21010

sub62052-21010

62520COVER ASSY, BACK WINDOW SIDE GARNISH, LH

main62480-20020iRT102,104..ARL,SA197504-197509

sub62480-20021

main62480-20021iRT10#..ARL,GEN,PHL,SA197509-197701

FOR HANGING CLOTH LINING

main62480-20022-03iRT10#..ARL,GEN,PHL,SA197701-197905

FOR HANGING CLOTH LINING,GRAY,GRAY,TRIM1#

main62480-20022-05iRT10#..ARL,GEN,PHL,SA197701-197905

FOR HANGING CLOTH LINING,BEIGE,BEIGE,TRIM4#

main62518-20020iRT10#..4D197308-197404

sub62518-20021

main62518-20021iRT10#..EUR,GEN197404-197509

GRAY

main62518-20021-03iRT100,104..ARL,EUR,GEN197509-197701

GRAY,GRAY,TRIM1#,2#

sub62518-20021

main62518-20021-13iRT100,104..ARL,EUR,GEN197701-197905

GRAY,GRAY,TRIM1#

sub62518-20021

main62518-20021-15iRT100,104..ARL,EUR,GEN197701-197905

BEIGE,BEIGE,TRIM4#

sub62518-20021

main62518-20030iRT104..2D197308-197404

sub62518-20031

main62518-20031iRT104..2D197404-197411

main62518-20060-03iRT110,112,114197308-197509

GRAY,GRAY,TRIM1#,2#

sub62518-95500

main62518-20070iRT102,104..4D..(ARL,SA)197406-197504

main62518-95500-03iRT110,114197509-197510

GRAY,GRAY,TRIM1#,2#

sub62518-95501

main62518-95501-03iRT110,114197510-197701

GRAY,GRAY,TRIM1#,2#

sub62518-95501

main62518-95501-13iRT114197701-197808

GRAY,GRAY,TRIM1#,2#

sub62518-95501

main62518-95501-15iRT114197701-197808

BEIGE,BEIGE,TRIM4#

sub62518-95501

62535PAD, QUARTER WHEEL HOUSE TRIM

main62531-20050iRT110,112,114197308-197509

main62531-20060iRT10#..4D197308-197905

RH.

main62531-20070iRT104..2D197308-197411

main62532-20030iRT10#..4D197308-197905

LH.

62570GARNISH ASSY, CENTER FLOOR CROSSMEMBER

main62556-21010iRT116,117,118197308-197701

RH.MAT

main62556-21020iRT116..PHL;RT116,118..RHD197308-197701

RH.CARPET

main62557-21010iRT116,117,118197308-197701

LH.MAT

main62557-21020iRT116,117,118197308-197701

LH.CARPET

main62575-20010iRT10#..RHD197308-197701

BLACK

main62575-20020iRT114..RHD197308-197701

BLACK

main62575-20030-03iRT10#197308-197408

GRAY,GRAY,TRIM1#

main62575-20030-04iRT10#197308-197408

BLUE,BLUE,TRIM8#

main62575-20030-06iRT10#197308-197503

OLIVE-BROWN,BROWN,TRIM4#

main62575-20040iRT10#..LHD197308-197503

BLACK

main62575-20050-03iRT110,112,114197308-197408

GRAY,GRAY,TRIM1#

main62575-20050-04iRT110,112,114197308-197408

BLUE,BLUE,TRIM8#

main62575-20050-06iRT110,112,114197308-197503

OLIVE-BROWN,BROWN,TRIM4#

main62576-20010iRT110,112197308-197503

BLACK

62577COVER, CROSSMEMBER, UPPER

main62579-20010iRT10#,114..RHD;RT100..DLX..PHL197503-197701

62578COVER, CROSSMEMBER, NO.1

main62578-20020iRT10#,114..RHD;RT100..DLX..PHL197503-197701

62581RETAINER, QUARTER TRIM

main62581-14010-01iRT104..2D197308-197411

BLACK,BLACK,TRIM2#

sub62581-14010

main62581-14010-03iRT104..2D197308-197408

GRAY,GRAY,TRIM1#

sub62581-14010

main62581-14010-04iRT104..2D197308-197408

BLUE,BLUE,TRIM8#

sub62581-14010

main62581-14010-06iRT104..2D197308-197411

OLIVE-BROWN,BROWN,TRIM4#

sub62581-14010

main62581-30010-01iRT110,112,114197308-197701

BLACK,BLACK,TRIM2#

sub62581-30010

main62581-30010-03iRT110,112,114197308-197408

GRAY,GRAY,TRIM1#

sub62581-30010

main62581-30010-04iRT110,112,114197308-197408

BLUE,BLUE,TRIM8#

sub62581-30010

main62581-30010-11iRT114197701-197808

BLACK,BLACK,TRIM2#

sub62581-30010

main62581-30010-13iRT114197701-197808

GRAY,GRAY,TRIM1#

sub62581-30010

main62581-30010-15iRT114197701-197808

BEIGE,BEIGE,TRIM4#

sub62581-30010

main62581-30010-16iRT110,112,114197308-197509

BROWN,BROWN,TRIM4#

sub62581-30010

main62581-30010-36iRT110,114197509-197701

BROWN,BROWN,TRIM4#

sub62581-30010

6215320020WEATERSTRIP, REAR SIDE WINDOW

main62153-20020

6777120021WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20021

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

9011906106

main90119-06106

9015940029

main90159-40029

9016245001

main90162-45001

9016735007

main90167-35007

9016745001

main90167-45001

9046805128

main90468-05128

31 parts on this diagram · 5 diagrams in section
