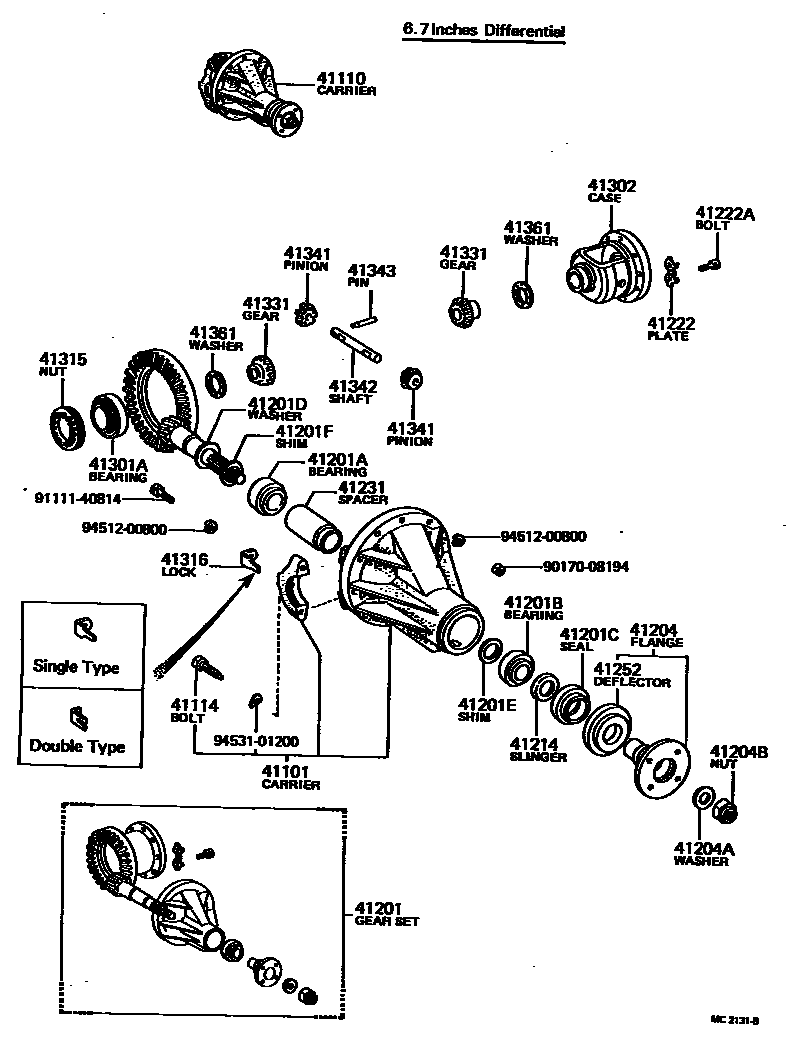

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-22010iRT10#,110,112,114197308-197905

6.7IN.DIFFERENTIAL

sub41101-20020

sub90116-08236

main41101-30010iRT116,117197308-197905

7.1IN.DIFFERENTIAL

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-20180iRT100,102197404-197905

R=41:10=4.100,6.7 IN.

sub41110-20181

sub90116-08236

main41110-20180iRT102..SA197308-197509

R=41:10=4.100

sub41110-20181

sub90116-08236

main41110-20190iRT100,110..4F197308-197905

R=41:11=3.727,6.1 IN.

sub41110-20191

sub90116-08236

main41110-20200iRT102,112..EUR,GEN197308-197905

R=43:11=3.909,6.7IN.

sub41110-20201

sub90116-08236

main41110-20200iRT104..EUG;RT104,114..ARL,GEN,SA197509-197804

R=43:11=3.909,6.7 IN.

sub41110-20201

sub90116-08236

main41110-20240iRT117..GEN197308-197401

R=37:9=4.111

sub41110-20241

main41110-20241iRT118..EUR197404-197905

*FGR=41:10=4.100,R=41:10=4.100,7.1 IN.

main41110-20241iRT117..GEN197401-197404

*FGR=41:10=4.100,R=41:10=4.100

main41110-20250iRT117..EUG197308-197401

R=39:10=3.900

sub41110-20251

main41110-20251iRT118..ARL197509-197905

*FGR=43:11=3.909,R=43:11=3.909,7.1 IN.

sub41110-22240

main41110-20251iRT117..EUG197401-197408

*FGR=43:11=3.909,R=43:11=3.909

sub41110-22240

main41110-21020iRT116197308-197808

*FGR=43:10=4.300,R=43:10=4.300,7.1 IN.

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90101-12371iRT10#,110,112,114197308-197905

sub90105-12114

main90101-12376iRT116,118197308-197905

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29165iRT117..EUG197308-197401

N=39:10

sub41201-29166

main41201-29166iRT118..RHD..EUG197509-197905

R=43:11=3.909,7.1 IN.

sub41201-29167

main41201-29166iRT117..EUG197401-197509

N=43:11=3.909

sub41201-29167

main41201-29195iRT100,102197509-197703

R=41:10=4.100,6.7 IN.

sub41201-29196

main41201-29195iRT102..SA197308-197509

N=41:10

sub41201-29196

main41201-29195iRT102..SA197308-197509

N=41:10=4.100,6.7 IN.

sub41201-29196

main41201-29196iRT104..EUR197703-197905

R=41:10=4.100,6.7 IN.

sub41201-29197

main41201-29215iRT116197308-197808

R=43:10=4.300,7.1 IN.

sub41201-29216

main41201-29225iRT100..4F..GEN;RT100..DLX..PHL197308-197703

R=41:11=3.727,6.7 IN.

sub41201-29226

main41201-29226iRT104,114..SA197703-197905

R=41:11=3.727,6.7 IN.

sub41201-29227

main41201-29235iRT102,112..EUR,GEN197308-197509

N=43:11

sub41201-29236

main41201-29235iRT104,114..SA197308-197509

N=43:11=3.909,6.7 IN.

sub41201-29236

main41201-29235iRT104..EUG;RT104,114..ARL,GEN,SA197509-197703

R=43:11=3.909,6.7 IN.

sub41201-29236

main41201-29236iRT104..EUG;RT104,114..ARL,GEN,SA197703-197905

R=43:11=3.909,6.7 IN.

sub41201-29237

main41201-39216iRT117..GEN197308-197401

N=37:9

sub41201-39217

main41201-39217iRT118..EUR197404-197509

R=41:10=4.100

sub41201-39218

main41201-39217iRT118..LHD197509-197905

R=41:10=4.100,7.1 IN.

sub41201-39218

main41201-39217iRT118..EUR197404-197509

N=41:10=4.100

sub41201-39218

main41201-39217iRT117..GEN197401-197404

N=41:10

sub41201-39218

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90368-34049iRT10#,110,112,114197308-197905

sub90366-34019

main97609-32307iRT118..EUR197308-197905

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30008iRT118197812-197905

main90368-30002iRT10#197809-197905

main90368-30022iRT10#,110,112,114197308-197408

sub90368-30069

main90368-30069iRT10#,110,112,114197408-197809

sub90368-30002

main97609-30306iRT116,118197308-197812

sub90366-30008

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38015iRT10#,114197706-197905

main90311-38124iRT10#,110,112,114197308-197706

sub90311-38014

main90311-38133iRT118..EUR197308-197905

sub90311-38047

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35396iRT118..EUR;RT118..3FC;RT10#,110,112,114,116,117197308-197905

T=2.36,MARK 05,T=2.35-2.37

main90201-35397iRT10#,11#197308-197905

T=2.39,MARK 06,T=2.38-2.40

main90201-35398iRT118..EUR;RT118..3FC;RT10#,110,112,114,116,117197308-197905

T=2.42,MARK 07,T=2.41-2.43

main90201-35399iRT10#,11#197308-197905

T=2.43,MARK 08,T=2.44-2.46

main90201-35400iRT10#,11#197308-197905

T=2.48,MARK 09,T=2.47-2.49

main90201-35401iRT10#,11#197308-197905

T=2.51,MARK 10,T=2.50-2.52

main90201-35402iRT10#,11#197308-197905

T=2.54,MARK 11,T=2.53-2.55

main90201-35403iRT10#,11#197308-197905

T=2.57,MARK 12,T=2.56-2.58

main90201-35404iRT118..EUR;RT118..3FC;RT10#,110,112,114,116,117197308-197905

T=2.60,MARK 13,T=2.59-2.61

main90201-35434iRT118..EUR197308-197905

T=2.24,MARK 01,T=2.23-2.25

sub90201-35515

main90201-35435iRT10#,11#197308-197905

T=2.27,MARK 02,T=2.26-2.28

sub90201-35516

main90201-35436iRT118..EUR;RT118..3FC;RT10#,110,112,114,116,117197308-197905

T=2.30,MARK 03,T=2.29-2.31

sub90201-35517

main90201-35437iRT10#,11#197308-197905

T=2.33,MARK 04,T=2.32-2.34

sub90201-35518

main90201-35438iRT118..EUR;RT118..3FC;RT10#,110,112,114,116,117197308-197905

T=2.63,MARK 14,T=2.62-2.64

main90201-35439iRT118..EUR;RT118..3FC;RT10#,110,112,114,116,117197308-197905

T=2.66,MARK 15,T=2.65-2.67

main90201-35440iRT118..EUR;RT118..3FC;RT10#,110,112,114,116,117197308-197905

T=2.69,MARK 16,T=2.68-2.70

main90201-35441iRT118..EUR197308-197905

T=2.72,MARK 17,T=2.71-2.73

41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

main90564-30032iRT118..EUR197308-197412

41201FSHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST)

main90564-35067iRT10#,110,112,114197308-197509

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-20020iRT10#,110,112,114197308-197905

main41204-20030iRT118..EUR197401-197905

main41204-21010iRT116,117197308-197401

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-18485iRT10#,11#197308-197905

41204BNUT (FOR REAR DRIVE PINION)

main90179-18001iRT10#,114197703-197905

main90179-18060iRT116,118197308-197905

sub90179-18001

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-20020iRT10#,110,112,114197308-197905

main41214-30021iRT116,117197308-197905

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-30030iRT10#,11#197308-197905

sub41222-28010

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iRT10#,11#197308-197905

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iRT10#,110,112,114197308-197905

main41231-22020iRT118..EUR197308-197905

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main37341-30020iRT116,117197308-197401

main41252-22010iRT10#,110,112,114197308-197905

main41252-30010iRT118..EUR197401-197905

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-41050iRT118..EUR197308-197905

main90368-45066iRT104..3FC..2D;RT118..4F..ARL;RT112..LHD..3FC;RT102..LHD..STD..GEN;RT100,116..LHD..3H..STD;RT102..RHD..4F..DLX..EUG197308-197905

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-30021iRT118..EUR197308-197905

7.1IN.DIFFERENTIAL

sub41311-30022

main41311-22030iRT10#,110,112,114197308-197905

sub41311-22031

sub41351-12030

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-22011iRT10#,110,112,114197308-197905

main41315-30010iRT118..EUR197308-197905

7.1IN.DIFFERENTIAL

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-22011iRT10#,110,112,114197308-197905

SINGLE TYPE

main41316-30010iRT118..EUR197308-197905

SINGLE TYPE

main41317-22011iRT10#,110,112,114197308-197905

DOUBLE TYPE

main41317-30010iRT116,117197308-197905

DOUBLE TYPE

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-22020iRT10#,110,112,114197308-197905

N=15

main41331-30020iRT116,118197308-197905

N=16

sub41331-30021

sub41361-22020

sub41361-22030

sub41361-22040

sub41361-22140

sub41361-22150

sub41361-22160

41341PINION, REAR DIFFERENTIAL

main41341-22020iRT10#,110,112,114197308-197905

N=10

sub41341-12030

main41341-30010iRT118..EUR197308-197905

N=10

sub41341-30011

sub41351-30032

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-22010iRT10#,110,112,114197308-197905

main41342-39015iRT116,117197308-197905

sub41342-30011

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-04193iRT10#,110,112,114197308-197905

main90250-06058iRT118..EUR197308-197905

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-22020iRT10#,110,112,114197308-197905

T=1.00,MARK 02,T=1.0

main41361-22030iRT10#,110,112,114197308-197905

T=1.10,MARK 03,T=1.1

main41361-22040iRT10#,110,112,114197308-197905

T=1.20,MARK 04,T=1.2

main41361-22140iRT10#,110,112,114197308-197905

T=0.95,MARK 14,T=0.95

main41361-22150iRT10#,110,112,114197308-197905

T=1.05,MARK 15,T=1.05

main41361-22160iRT10#,110,112,114197308-197905

T=1.15,MARK 16,T=1.15

main41361-30020iRT116,117197308-197905

T=1.40-1.50

main41362-30020iRT116,117197308-197905

T=1.50-1.60

main41363-30010iRT116,117197308-197905

T=1.60-1.70

main41364-30010iRT116,117197308-197905

T=1.70-1.80

9017008194

main90170-08194

9111140814

main91111-40814

9451200800

main94512-00800

9453101200

main94531-01200
