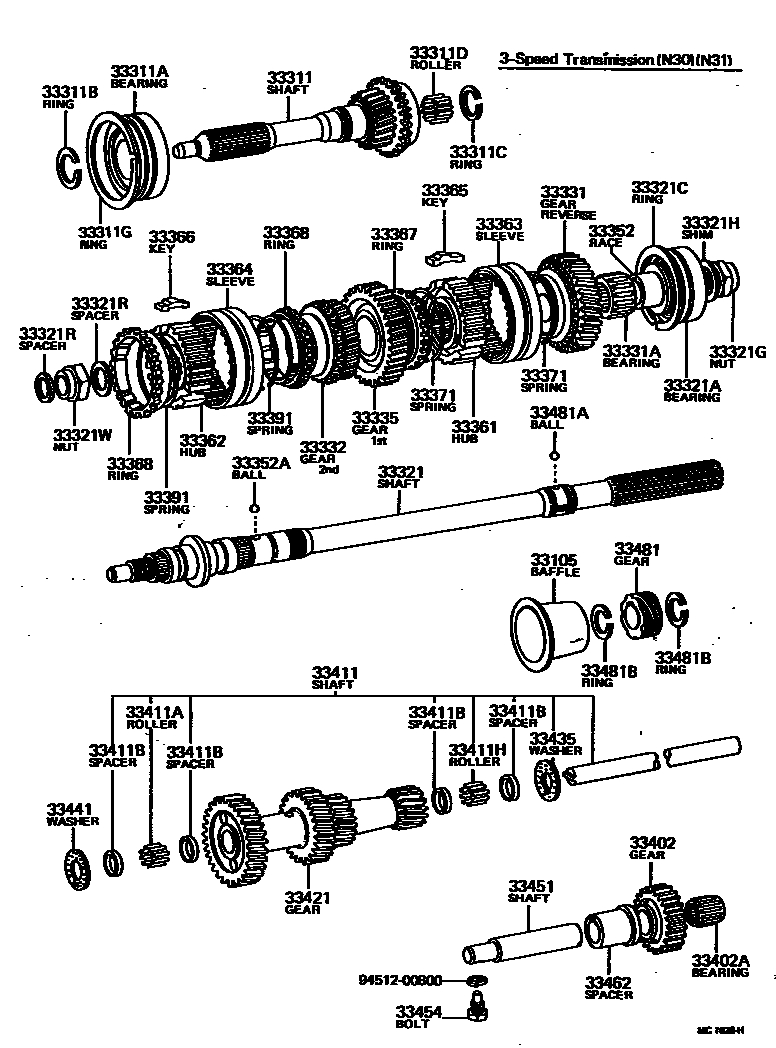

TRANSMISSION GEAR (MTM)
33105BAFFLE SUB-ASSY, EXTENSION HOUSING OIL
33311SHAFT, INPUT
N=18
N=19
N=19
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.05,MARK 0,T=2.05-2.10
T=2.10,MARK 1,T=2.10-2.15
T=2.15,MARK 2,T=2.15-2.20
T=2.20,MARK 3,T=2.20-2.25
T=2.25,MARK 4,T=2.25-2.30
T=2.30,MARK 5,T=2.30-2.35
T=2.30-2.35,MARK 11,T=2.30-2.35
T=2.05,MARK 1,T=2.05-2.10
T=2.10,MARK 2,T=2.10-2.15
T=2.15,MARK 3,T=2.15-2.20
T=2.20,MARK 4,T=2.20-2.25
T=2.25,MARK 5,T=2.25-2.30
33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33321SHAFT, OUTPUT
sub33321-20071
sub33321-30091
sub33317-30011
sub33334-30012
sub33349-30010
sub33368-30070
sub33385-30010
sub33393-30012
sub90280-07001
sub90360-06004
sub90364-28002
sub90520-26006
sub90520-26007
sub90520-26008
sub90520-41002
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.35,MARK 1,T=1.35-1.45
T=1.45,MARK 2,T=1.45-1.55
T=1.55,MARK 3,T=1.55-1.65
T=1.65,MARK 4,T=1.65-1.75
T=1.75,MARK 5,T=1.75-1.85
T=1.35-1.45
T=1.65,ID=71.1
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
33321RSPACER, OUTPUT SHAFT FRONT SET NUT
FRONT
REAR
33321WNUT, OUTPUT SHAFT FRONT SET
33331GEAR, REVERSE
N=31
N=39
33331ABEARING (FOR REVERSE GEAR)
33332GEAR, 2ND
N=25
N=29
33335GEAR, 1ST
N=31
N=32
33352RACE, REVERSE GEAR BEARING INNER
33352AKEY OR BALL, REVERSE GEAR BEARING INNER RACE LOCK
33362HUB, TRANSMISSION CLUTCH, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33402GEAR SUB-ASSY, REVERSE IDLER
N=31
N=19
33402ABUSH OR BEARING (FOR REVERSE IDLER GEAR)
33411COUNTERSHAFT
33411BSPACER(FOR COUNTER GEAR BEARING)
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33421GEAR, COUNTER
N=31,25,16,12
N=29,26,22,15
N=32,25,16,12
N=30,26,22,14,15
33435WASHER, COUNTER GEAR CASE SIDE THRUST
T=1.95-2.05
T=2.10-2.20
T=2.25-2.35
T=2.40-2.50
33441WASHER, COUNTER GEAR SIDE THRUST, NO.1
T=2.24-2.29
T=2.30-2.35
T=2.36-2.41
T=2.42-2.47
T=2.48-2.53
T=2.54-2.59
T=1.90-2.00,FOR FRONT
FOR REAR,T=2.30-2.35
T=2.45-2.50
T=2.60-2.65
T=2.75-2.80
FOR REAR,T=2.90-2.95
T=3.05-3.10
T=3.20-3.25
33451SHAFT, REVERSE IDLER GEAR
33454BOLT, SHAFT RETAINING
33462WASHER, REVERSE IDLER THRUST
L=28.44-28.50
L=28.64-28.70
L=28.84-28.90
L=29.04-29.10
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=5,MARK 5X17-19,N=5
N=6,MARK 6X18-20,N=6
N=6,MARK 6X21-23,N=6,DIFF.GEAR R=4.100
N=6,MARK 6X21-23,N=6
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
9451200800
main94512-00800
46 parts on this diagram · 4 diagrams in section
