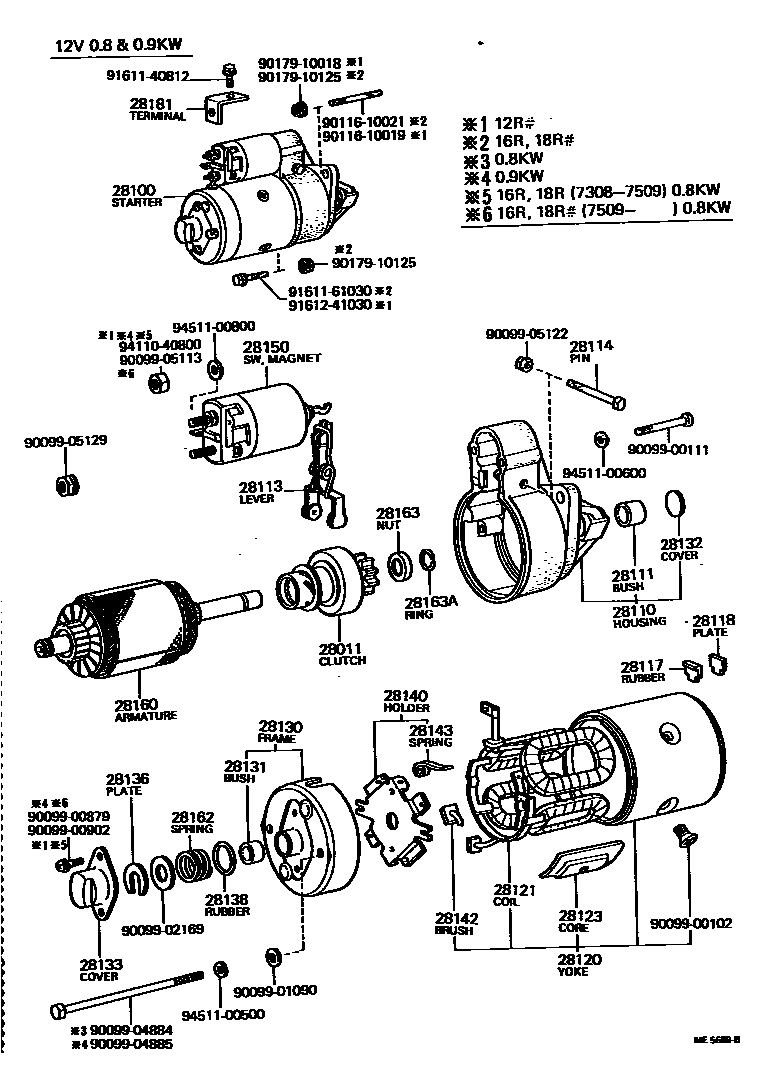

STARTER

0001 1 0002 1

28011CLUTCH SUB-ASSY, STARTER

main28011-41011i12R,16R,18R..RT10#,11#197308-197408

12V 0.8 & 0.9KW

main28011-41012i16R,18R..RT102,104,114,118197509-197905

12V 0.8KW

main28011-41020i16R,18R..RT102,104,118..EUR,GEN197308-197509

12V 1.0KW

28100STARTER ASSY

main28100-33020i18R..RT104,114,118..RHD197701-197808

12V 1.0KW

sub28100-34070

main28100-36020i16R,18R..RT102,104,118..EUR,GEN197308-197509

12V 1.0KW

sub28100-36080

main28100-36030i16R..RT102..EUR,GEN197308-197408

12V 0.8KW

main28100-36040i16R,18R..RT102,104,118..EUR,GEN197408-197509

12V 0.8KW

main28100-36050i18R#..RT104,114,118..EUR,GEN197509-197701

12V 1.0KW

sub28100-36051

main28100-36060i18R..RT104,114,118..LHD197701-197905

12V 0.8KW

sub28100-34090

main28100-36070i16R,18R..RT102,104,114,118..RHD197701-197905

12V 0.8KW

sub28100-37010

main28100-40014i12R#..RT100,110,116197308-197806

12V 0.8KW

main28100-40015i12R#..RT100,116197806-197808

12V 0.8KW,12V 0.8KW

sub28100-31020

main28100-40041i16R,18R..RT102,104,114,118..ARL,SA197308-197509

12V 0.9KW

28110HOUSING ASSY, STARTER DRIVE

main28110-40019i12R#..RT100,110,116197308-197806

main28110-40030i12R#..RT100,116197806-197808

main28110-40045i16R,18R..RT102,104,112,114,117,118197308-197509

12V 0.8 & 0.9KW

main28110-40061i16R,18R..RT102,104,118..EUR,GEN197308-197509

12V 1.0KW

28111BUSH(FOR STARTER HOUSING)

main28111-51011i12R#,16R,18R#..RT10#,11#197308-197905

28113LEVER, STARTER PINION DRIVE

main28113-41011i12R#,16R,18R#..RT10#,11#197308-197905

28114PIN, STARTER DRIVE LEVER SET

main28114-41011i12R#,16R,18R#..RT10#,11#197308-197905

28117RUBBER(FOR STARTER YOKE)

main28117-25010i16R..RT102..EUR,GEN197308-197408

12V 0.8KW

sub28117-25011

sub28118-25011

main28117-41012i12R..RT100,116197701-197905

12V 0.8KW

main28117-41013i16R,18R..RT102,104,114,118..RHD197701-197905

12V 0.8KW

main28117-41020i16R,18R..RT102,104,118..EUR,GEN197308-197509

12V 1.0KW

28118PLATE(FOR STARTER YOKE)

main28118-25010i16R..RT102..EUR,GEN197308-197408

12V 0.8KW

main28118-41012i16R,18R..RT102,114..SA197308-197408

12V 0.8 & 0.9KW

main28118-41013i16R,18R..RT102,104,114,118..RHD197701-197905

12V 0.8KW

28120YOKE ASSY, STARTER

main28120-33022i16R,18R..RT102,104,118..EUR,GEN197308-197509

12V 1.0KW

sub28120-34070

main28120-36040i16R,18R..RT102,104,118..EUR,GEN197408-197509

12V 0.8KW

main28120-40040i16R,18R..RT102,104,114,118..ARL,SA197308-197509

12V 0.9KW

main28120-89101i16R..RT102..EUR,GEN197308-197408

12V 0.8KW

28121COIL, STARTER FIELD

main28121-36040i16R,18R..RT102,104,118..EUR,GEN197408-197509

12V 0.8KW

main28121-40014i12R#..RT100,110,116197408-197808

12V 0.8KW

main28121-41011i16R,18R..RT102,104,114,118..ARL,SA197308-197509

12V 0.9KW

main28121-41020i16R,18R..RT102,104,118..EUR,GEN197308-197509

12V 1.0KW

28123CORE, STARTER POLE

main28123-40012×4i16R,18R..RT102,104,118..EUR,GEN197308-197509

12V 0.8KW

main28123-41011×4i16R,18R..RT102,104,114,118..ARL,SA197308-197509

12V 0.9KW

main28123-41020×4i16R,18R..RT102,104,118..EUR,GEN197308-197509

12V 1.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-21011i12R#,16R,18R..RT10#,11#197509-197905

12V 0.8KW

main28130-41020i16R,18R..RT102,104,118..EUR,GEN197308-197509

12V 1.0KW

28131BUSH, COMMUTATOR END FRAME

main28131-20010i12R#,16R,18R#..RT10#,11#197308-197905

STD

main90099-10039i12R#,16R,18R#..RT10#,11#197308-197905

U/S 0.3

main90099-10040i12R#,16R,18R#..RT10#,11#197308-197905

U/S 0.5

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28166-41011i12R#,16R,18R#..RT10#,11#197308-197905

28133COVER, BEARING(FOR END FRAME)

main28132-40010i16R,18R..RT102,104,118..EUR,GEN197308-197509

12V 1.0KW

main28132-41011i12R#,16R,18R..RT10#,11#197509-197905

12V 0.8KW

28136PLATE, STARTER LOCK

main28136-40010i16R,18R..RT102,104,118..EUR,GEN197308-197509

12V 1.0KW

main28136-41011i12R#,16R,18R..RT10#,11#197509-197905

12V 0.8KW

28138RUBBER(FOR STARTER BEARING COVER)

main28138-40010i16R,18R..RT102,104,118..EUR,GEN197308-197509

12V 1.0KW

sub28138-26030

main28138-41011i12R#,16R,18R..RT10#,11#197509-197905

12V 0.8KW

28140HOLDER ASSY, STARTER BRUSH

main28140-25020i16R,18R..RT102,104,118..EUR,GEN197308-197509

12V 1.0KW

main28140-40040i16R,18R..RT102,104,114,118..ARL,SA197308-197509

12V 0.9KW

main28140-41012i16R,18R..RT102,104,118..EUR,GEN197408-197509

12V 0.8KW

main28140-41013i16R..RT102..EUR,GEN197308-197408

12V 0.8KW

28142BRUSH, STARTER

main28142-21010×4i12R,16R,18R..RT10#,110,112,116,117,118..EUR,GEN,PHL197308-197509

12V 0.8KW

main28142-25011i16R,18R..RT102,104,114,118..ARL,SA197308-197509

12V 0.9KW

main28142-25020×4i16R,18R..RT102,104,118..EUR,GEN197308-197509

12V 1.0KW

28143SPRING, STARTER BRUSH

main28143-40010×4i12R#,16R,18R#..RT10#,11#197308-197905

sub28143-40040

28150SWITCH ASSY, MAGNET STARTER

main28150-12030i16R,18R..RT102,104,118..EUR,GEN197308-197509

12V 1.0KW

main28150-22011i12R#..RT100,110,116197509-197701

12V 0.8KW

main28150-36050i16R,18R#..RT102,104,114,118197509-197701

sub28150-60060

28160ARMATURE ASSY, STARTER

main28160-40014i16R,18R..RT102,104,118..EUR,GEN197308-197509

12V 0.8KW

main28160-41011i16R,18R..RT102,104,114,118..ARL,SA197308-197509

12V 0.9KW

main28160-41020i16R,18R..RT102,104,118..EUR,GEN197308-197509

12V 1.0KW

28162SPRING, STARTER BRAKE

main28162-41011i12R#,16R,18R..RT10#,11#197509-197905

12V 0.8KW

main28162-41022i18R#..RT104,114,118..EUR,GEN197509-197905

12V 1.0KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i16R,18R..RT102,104,118..EUR,GEN197308-197509

12V 0.8 & 1.0KW

main28163-41011i16R,18R..RT102,104,114,118..ARL,SA197308-197509

12V 0.9KW

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i12R#,16R,18R#..RT10#,11#197308-197905

28181TERMINAL, STARTER

main28181-20010i12R#,16R,18R#..RT10#,11#197308-197905

sub28181-20011

9009900102

main90099-00102

9009900111

main90099-00111

9009900879

main90099-00879

9009900902

main90099-00902

9009901090

main90099-01090

9009902169

main90099-02169

9009904884

main90099-04884

9009904885

main90099-04885

9009905113

main90099-05113

9009905122

main90099-05122

9009905129

main90099-05129

9011610019

main90116-10019

9011610021

main90116-10021

9017910018

main90179-10018

9017910125

main90179-10125

9161140812

main91611-40812

9161161030

main91611-61030

9161241030

main91612-41030

9411040800

main94110-40800

9451100500

main94511-00500

9451100600

main94511-00600

9451100800

main94511-00800

48 parts on this diagram · 2 diagrams in section
