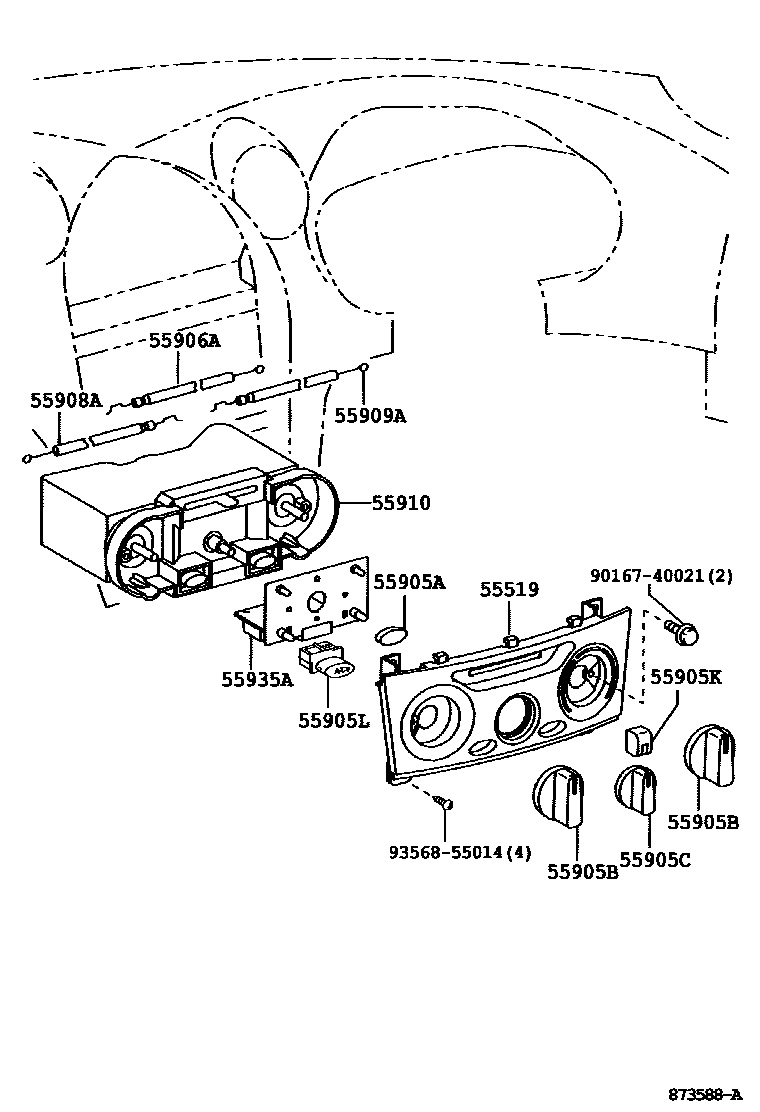

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
55519PLATE, HEATER CONTROL NAME
55905AKNOB, HEATER CONTROL
AUTOMATIC AIR CONDITIONER
AUTOMATIC AIR CONDITIONER
55905BKNOB, HEATER CONTROL, NO.2
55905CKNOB, HEATER CONTROL, NO.3
55905KKNOB, HEATER CONTROL, NO.4
55905LKNOB, HEATER CONTROL, NO.5
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55910CONTROL ASSY, HEATER OR BOOST VENTILATOR
W(MANUAL AIR CONDITIONER)
W(MANUAL AIR CONDITIONER)
W(MANUAL AIR CONDITIONER)
55935ACIRCUIT, CENTER CLUSTER MODULE
AUTOMATIC AIR CONDITIONER
AUTOMATIC AIR CONDITIONER
9016740021
main90167-40021
9356855014
main93568-55014
13 parts on this diagram · 6 diagrams in section
