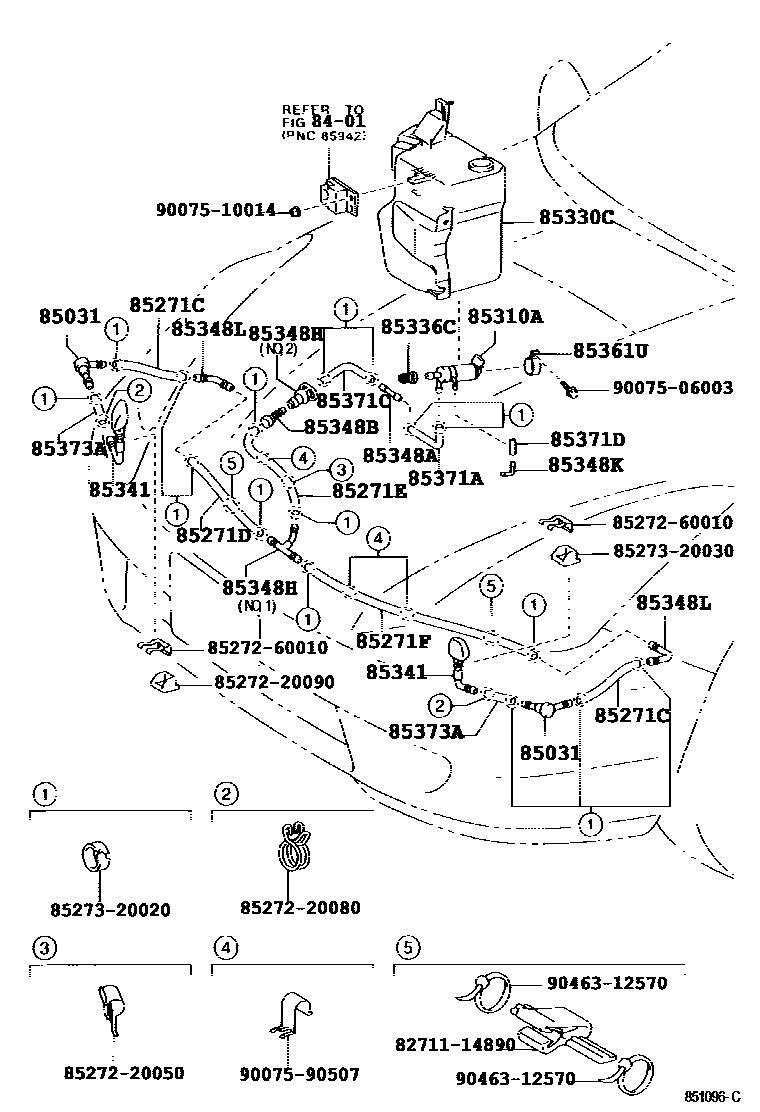

HEADLAMP CLEANER
8401SWITCH & RELAY & COMPUTER
85031VALVE, HEADLAMP CLEANER WASHER HOSE
85271CHOSE, HEADLAMP CLEANER, NO.4
L=90
85271DHOSE, HEADLAMP CLEANER, NO.5
L=1320
85271EHOSE, HEADLAMP CLEANER, NO.6
L=640(*H,L=460)
85271FHOSE, HEADLAMP CLEANER, NO.7
L=640(*H,L=350)
85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85330CJAR ASSY, HEADLAMP CLEANER WASHER
85336CPACKING, HEADLAMP CLEANER MOTOR
85341NOZZLE, HEADLAMP CLEANER WASHER
SUPER WHITE 2,040,RH
GRAY ME.,1D2,RH
SILVER M.M.,1E7,RH
BLACK,202,RH
BLUE BLACK MC.CC.,210,RH
SUPER RED 5,3P0,RH
SUPER BRIGHT YELLOW,576,RH
DARK GREEN MC.,6R4,RH
BLUE MC.,8M6,RH
SUPER WHITE 2,040,LH
GRAY ME.,1D2,LH
SILVER M.M.,1E7,LH
BLACK,202,LH
BLUE BLACK MC.CC.,210,LH
SUPER RED 5,3P0,LH
SUPER BRIGHT YELLOW,576,LH
DARK GREEN MC.,6R4,LH
BLUE MC.,8M6,LH
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
NO.1
NO.2
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85361UBRACKET, HEADLAMP CLEANER WASHER
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=60
85371CHOSE, HEADLAMP CLEANER, NO.1
L=68X68
85371DHOSE, HEADLAMP CLEANER, NO.2
L=15
85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
L=40
8271114890WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14890
8527220050CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-20050
8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-20080
8527220090CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-20090
8527260010CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-60010
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
8527320030CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20030
9007506003
main90075-06003
9007510014
main90075-10014
9007590507
main90075-90507
9046312570
main90463-12570
31 parts on this diagram · 1 diagram in section
