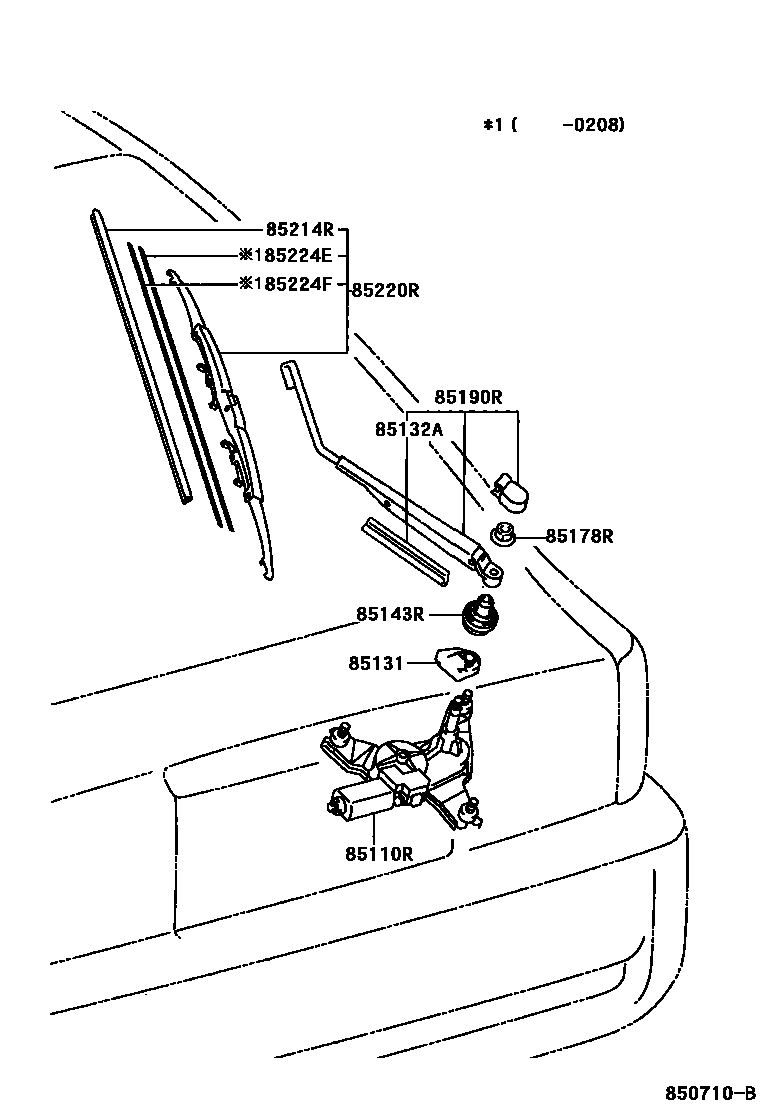

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-20780iZZT23#200208-200509

85131COVER, REAR WIPER MOTOR

main85131-20730iZZT23#..RHD199908-200208

85132ACOVER, REAR WIPER SHAFT

main85132-20740iZZT23#200003-200208

85143RGROMMET, REAR WIPER MOTOR

main85143-20700iZZT23#200208-200509

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iZZT23#199908-200208

85190RARM ASSY, REAR WIPER

main85241-20120iZZT230199908-200008

main85241-20150iZZT23#200008-200208

85214RRUBBER, REAR WIPER

main85214-24050iZZT23#200408-200509

main85214-30310iZZT23#200008-200208

main85214-32080iZZT230199908-200004

main85214-42020iZZT230200004-200008

85220RBLADE ASSY, REAR WIPER

main85222-12730iZZT230200004-200008

main85222-52130iZZT23#200408-200509

main85222-60170iZZT23#200208-200408

main85242-32040iZZT230199908-200004

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-10210iZZT23#200004-200208

main85224-20360iZZT230199908-200004

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-10210iZZT23#200004-200208

main85224-20360iZZT230199908-200004

10 parts on this diagram · 1 diagram in section
