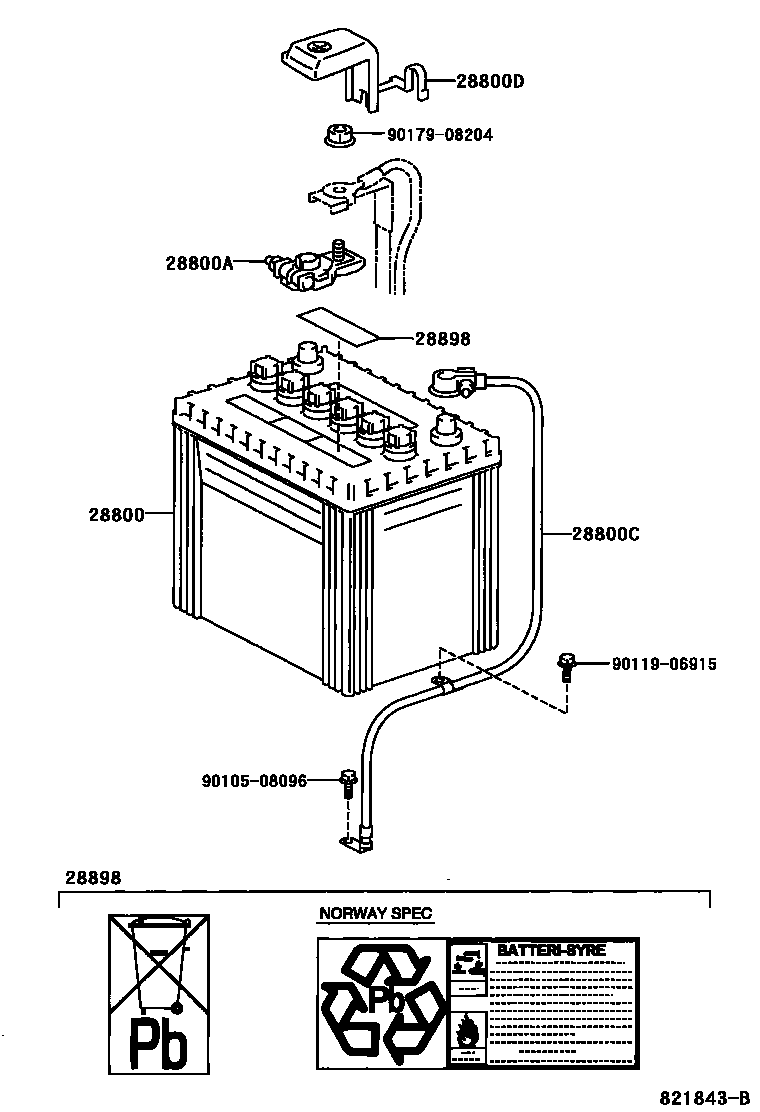

BATTERY & BATTERY CABLE

28800BATTERY

main28800-22060i1ZZFE,2ZZGE..ZZT23#200208-200509

55B24L(S)

main28800-42040i1ZZFE,2ZZGE..ZZT23#200003-200208

55D23L

main28800-42042i1ZZFE,2ZZGE..ZZT23#200103-200208

55D23L,YUASA

main28800-42061i1ZZFE,2ZZGE..ZZT23#200103-200208

55D23L,FURUKAWA

main28800-64030i1ZZFE..ZZT230199908-200208

55D20L

main28800-70061i1ZZFE..ZZT230199908-200003

50D20L

main28800-70070i1ZZFE,2ZZGE..ZZT23#200003-200208

50D20L

main28800-70140i1ZZFE..ZZT230199908-200003

55D23L

main28800-74261i1ZZFE,2ZZGE..ZZT23#200208-200509

46B24L(S)

main28800-76090i1ZZFE,2ZZGE..ZZT23#200103-200208

55D23L

28800ATERMINAL, BATTERY POSITIVE

main90982-05035i1ZZFE..ZZT230199908-200004

main90982-05054i1ZZFE,2ZZGE..ZZT23#200208-200509

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82123-20400i1ZZFE,2ZZGE..ZZT23#199908-200102

main82123-20401i1ZZFE,2ZZGE..ZZT23#200102-200208

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12290i1ZZFE..ZZT230199908-200004

main82821-12490i1ZZFE,2ZZGE..ZZT23#200012-200208

main82821-20350i1ZZFE,2ZZGE..ZZT23#200004-200012

28898PLATE, BATTERY

main28898-16020i1ZZFE,2ZZGE..ZZT23#199908-200208

main28898-46010i1ZZFE,2ZZGE..ZZT23#..LHD200208-200509

NORWAY SPEC

9010508096

main90105-08096

9011906915

main90119-06915

9017908204

main90179-08204

8 parts on this diagram · 1 diagram in section
